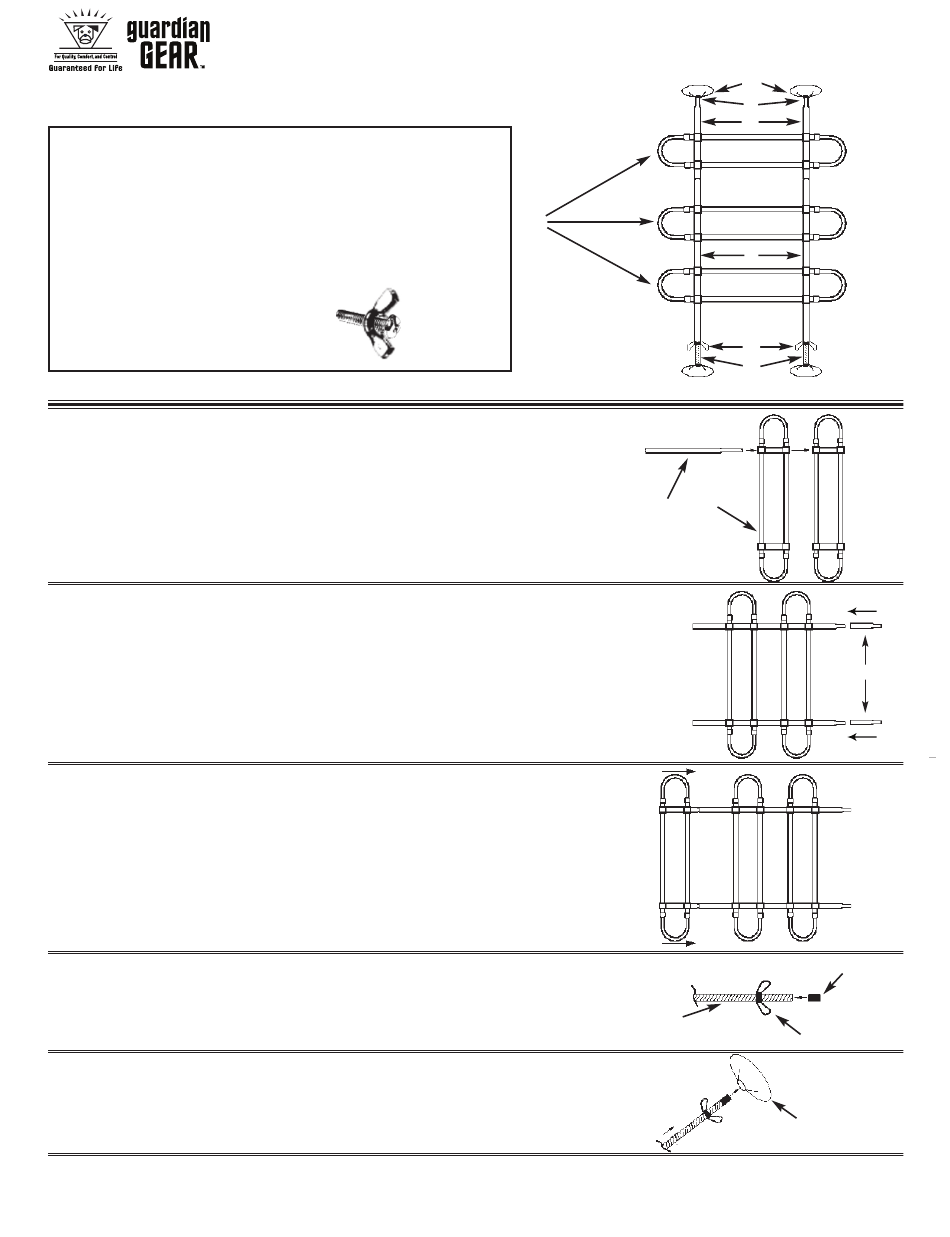

GUARDIAN GEAR ZW8198 Assembly Instructions

Parts Identification:

A. Telescoping Horizontal Tubes with
Upright Support Brackets (3)
B. Vertical Upright Tubes (2)
C. Upright Extension Tubes (2)
D. Wing Nuts (2)
E. Threaded Rods (2)
F. Foot Support Inserts (4)
G. Support Feet (4)
H. Screws (6)
1. Insert Vertical Upright Tubes (B) through the upright
support brackets on two of the Telescoping Horizontal Tubes (A).
2. Slide the Upright Extension Tubes (C) onto the two tops of the Vertical
Upright Tubes (B).
3. Attach the remaining Telescoping Horizontal Tube (A) to the ends
of the Vertical Upright Tubes (B).
4. Attach the two Wing Nuts (D) to the two Threaded Rods (E) as shown.
Press the Foot Support Inserts (F) into the Threaded Rods (E).
(Note: Inserts may already be connected to the rods.)
5. At an angle, press the Threaded Rods with attached Foot Support Inserts
into two of the Support Feet (G).
ZW8198 Vehicle Barrier Assembly Instructions
H
A
A
B
E
G
F
C
B
D
E
C
F
D
G
