- Page 1 21-GL36 21-GL47 21-GL53 21-GL53T 21-GL63 21-GL73 GRAPPLE LOADER 21-GL53 Read this manual carefully before using the product! Translated from the original...
- Page 2 Connecting the rotator to the crane hydraulic system Rotator lead-through Operating instructions Service and maintenance instructions Exploded diagram: rotator Grapple loader 21-GL36 Lifting capacity 21-GL36 Hydraulic diagram GL34 Hydraulic hoses for GL36 valve block Spare parts – GL36 Grapple loader 21- GL47...
-
Page 3: Product Information

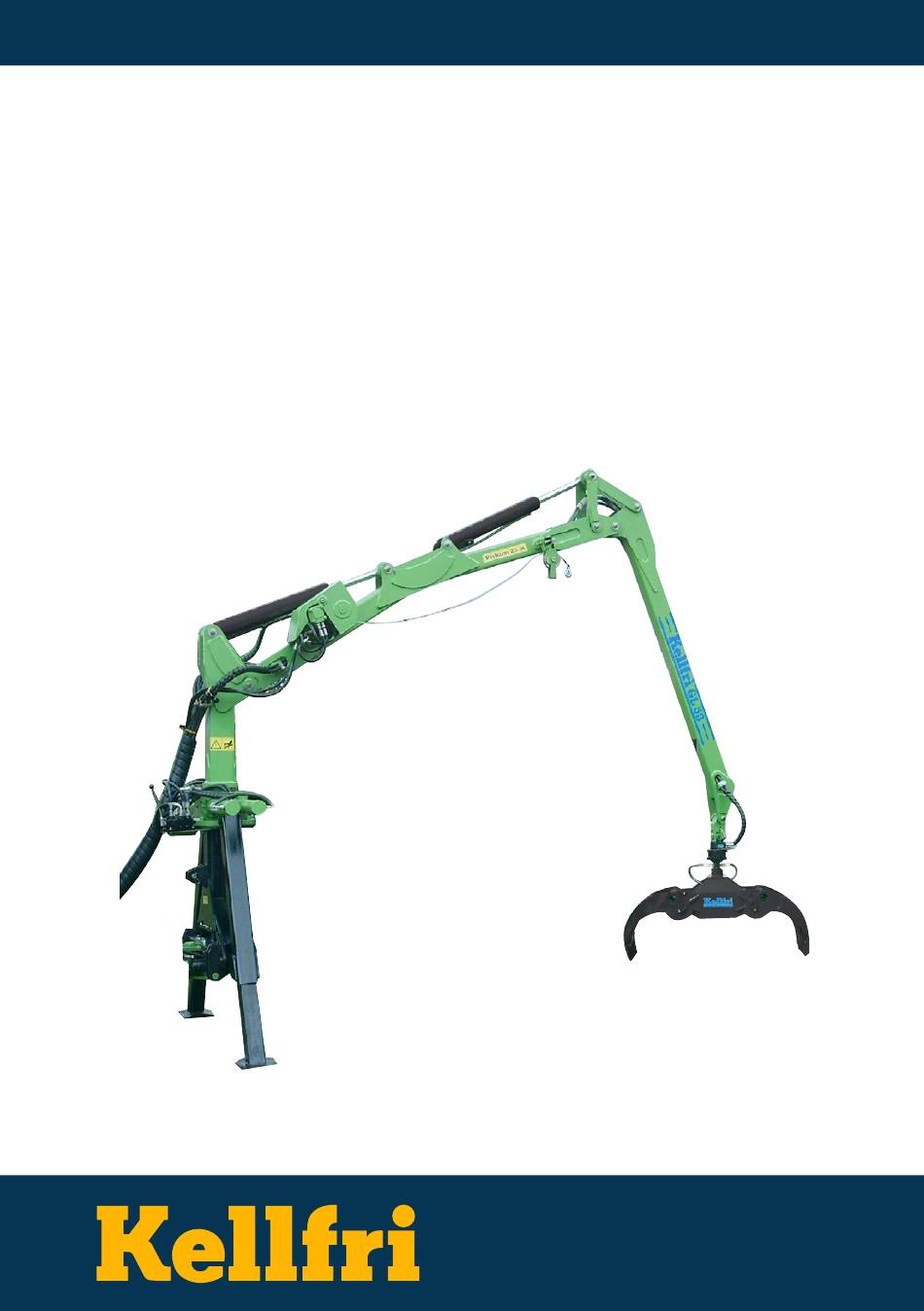

PRODUCT INFORMATION Kellfri's grapple loaders are available with an outreach ranging from 3.6 m to 7.3 m. All cranes are supplied with angled lifting arms providing maximum lifting capacity in flat ground positions. Top-mounted lift cylinders in protected position. The interior hoses in the lifting arm and articulated boom are protected from external damage during operation. -
Page 4: Product Safety Instructions
The original design of the machine must not, under any circumstances, be modified without the approval of the manufacturer. Unauthorised modifications and/or accessories may cause life-threatening injuries or death to users and others. Kellfri is not liable for any modifications, changes or rebuilds carried out by customers. PRODUCT SAFETY INSTRUCTIONS •... -
Page 5: Instructions For Emergency Situations
INSTRUCTIONS FOR EMERGENCY SITUATIONS In case of emergency, call 112. Always have a mobile phone or emergency phone available when working alone. A first-aid kit and fire extinguisher must be kept in an easily accessible location when carrying out any work, maintenance or service. -
Page 6: Personal Protection
PERSONAL PROTECTION Always use suitable protection equipment. Do not wear loose clothing or jewellery while working with the equipment. Long hair should be tied up when working with equipment that has moving parts. Use protective gloves to avoid the risk of burns if hot surfaces such as exhaust pipes are touched, and to avoid oil and petrol getting in contact with the skin. -
Page 7: Loading Work
CONNECTING/DISCONNECTING EQUIPMENT Be careful when connecting and disconnecting the grapple loader. • The grapple loader is connected to forestry trailers, timber trailers, forest thinning trailers and permanent workplaces. • Make sure that the mounting plate to which the grapple loader is connected is clean. Tighten the bolts properly. -
Page 8: Use & Operation
PRACTISE STEPS Taken from the "Kör åt skogen rätt och säkert [Correct and safe forest operations]" booklet published by the Swedish University of Agricultural Sciences". One lever at a time Begin with one function at a time. Operate the crane using a low and even engine speed. Check which crane movements are suitable for the tractor. -
Page 9: After Use
AFTER USE Do not park with a suspended load but with the equipment resting on the ground. Wash down the equipment with water if necessary. TRANSPORTATION AND STORAGE Check that the work area is free from bystanders, children and objects before driving off. Always observe additional caution during transport and moving. -
Page 10: Troubleshooting
SERVICE INTERVAL MEASURE Cables and hoses Before each use Check that all cables and hoses are intact. Screws and bolts Regularly, preferably Check and retighten all bolts and screws. before each use Moving parts. After each use Grease moving parts regularly. Hydraulic oil Regularly Always check the quality of the oil in the tractor's hydraulic system. -
Page 11: Working Conditions
WORKING CONDITIONS The hydraulic turning device, or rotator, is designed for use on a hydraulically-powered lifting crane, e.g. cranes that handle timber or single items. The rotator axle is fitted to lifting equipment, e.g. a grapple, which grips the load. The load can be rotated horizontally using the rotator. -
Page 12: Service And Maintenance Instructions
OPERATING INSTRUCTIONS Exercise caution when using the crane and rotator and act in accordance with the crane's safety instructions. Lateral loads on the rotator axle should be avoided. For example, prior to lifting, loads must not be pulled using the crane or the crane's base vehicle. A broken hose or nipple can cause the load to fall or rotational movement to continue. - Page 13 EXPLODED DIAGRAM: ROTATOR Designation Quantity Bolt Lower bearing housing Axle seal Seal Bearing O-ring Axle diam. 40 Spring Wing Seal Plug Spacer Plug Upper housing Table of Contents...
- Page 14 GRAPPLE LOADER 21-GL36 2352.9 TECHNICAL DATA 21-GL36 Crane reach [mm] 3600 Grapple (width) [mm] Gripping area [m ²] 0.08 Rotator weight between articulated boom & rotator [kg] Torque [kNm] System pressure [Mpa] Oil volume – slewing house [L] Crane weight incl. grapple and rotator [kg]...
- Page 15 LIFTING CAPACITY 21-GL36 [mm] 3600 3000 2500 2000 1500 1000 -1500 -2000 -2500 [kg] Table of Contents...
- Page 16 ROTATOR HYDRAULIC DIAGRAM GL34 GRAPPLE CYLINDER BOOM CYLINDER LIFTING CYLINDER STABILISER CYLINDER STABILISER CYLINDER ROTATION CYLINDER RETURN PRESSURE Table of Contents...
- Page 17 HYDRAULIC HOSES FOR GL36 VALVE BLOCK The hydraulic hoses are marked to be able to identify which hoses go where in the valve block See the markings on the hydraulic hoses and illustration below for connecting. HYDRAULIC HOSES AND CONNECTIONS Hydraulic hoses from valve block to cylinder/engine. LENGTH QUANTITY CONNECTION...
- Page 18 SPARE PARTS – GL36 DESIGNATION PART NO. Slewing house R21-SV34.024 Rotation cylinder R21-SV34.038 Boom cylinder R21-SV34.013 Cylinder – Outer boom R21-SV34.001 Complete articulated joint R21-Sv34.008 Articulated boom R21-SV34.020 Rotator bracket R21-Sv34.026 Valve block R21-SV34.053 Table of Contents...
- Page 19 21-GL36 BUSHINGS 21-GL36 PINS Table of Contents...
- Page 20 GRAPPLE LOADER 21- GL47 TECHNICAL DATA 21-GL47 Crane reach [mm] 4700 Grapple (width) [mm] 1000 Gripping area [m ²] 0.18 Rotator weight between articulated boom & rotator [kg] Torque [kNm] System pressure [Mpa] Recommended pump capacity [L] 20-45 Oil volume – slewing house [L] Crane weight incl.
- Page 21 LIFTING CAPACITY 21-GL47 [mm] 5000 4000 3000 2000 1000 2000 3000 4000 5000 [kg] Table of Contents...
- Page 22 7, 8 SPARE PARTS PART. NO. 21-GL47 DESIGNATION R21-GL47.001 Boom cylinder R21-GL47.002 Inner boom cylinder/Outer boom cylinder R21-GL47.010 Rotator bracket R21-GL47.011 Pin between rotator and rotator bracket GL47 R21-GL47.012 Bolt between rotator and grapple GL47 R21-GL47.004 Valve block R21-GL47.013 Gasket kit, cylinder boom GL47 R21-GL47.014 Gasket kit, cylinder first boom/outer boom GL47 R21-GL47.015...
- Page 23 HYDRAULIC DIAGRAM GL47/GL53 ROTATOR GRAPPLE CYLINDER STABILISER CYLINDER ROTATION CYLINDER STABILISER CYLINDER RETURN PRESSURE BOOM LIFTING ARM ROTATOR ROTATE ROTATE ROTATOR LIFTING ARM BOOM Table of Contents...
- Page 24 HYDRAULIC HOSES VALVE BLOCK 21-GL47 IMPORTANT! CONNECTIONS MUST BE CHECKED FOR LEAKS AND RE-TIGHTENED REGULARLY. NOTE: DO NOT OVERTIGHTEN THE CONNECTIONS. OTHERWISE THEY MAY BE DAMAGED. Hydraulic hoses from valve block [7-coil–2-lever] to cylinder. L E N G T H CONNECTION CONNECTION DESCRIPTION...
- Page 25 21-GL47 BUSHINGS 21-GL47 PINS Table of Contents...
- Page 26 TECHNICAL DATA FOR GL53/GL63/73 MARKING DESCRIPTION 21-GL53 [mm] 21-GL63 [mm] 21-GL73 [mm] Lifting arm 3010 2840 2840 Articulated boom without 2290 2566 2233 extension Slewing house – height Slewing house – Diameter Rotation cylinder 1470 1208 1200 Articulated boom – width Rotator bracket TECHNICAL DATA 21-GL53...
- Page 27 LIFTING DIAGRAM GL53/GL63/73 GL53 GL63 GL73 [mm] 1000 2000 3000 6000 5000 4000 7000 LIFTING CAPACITY DISTANCE [mm] GL53 [kg] GL63 [kg] GL73 [kg] GL53 2000 1060 GL63 3000 4000 GL73 5000 5300 6000 6300 7000 7300 Table of Contents...
- Page 28 LIFTING ARM 21-GL53/63 THREE-POINT LINKAGE 21-GL53/63 ART. NO. DESIGNATION R21-GL53.001 Complete slewing house (no tower) R21-GL53.070 Boom cylinder R21-GL53.012 Cylinder outer boom ø75/40 sl.600 GL53 R21-GL53.074 Gasket kit, cylinder, stabiliser R21-GL53.075 Gasket kit, boom cylinder R21-GL53.073 Cylinder, stabiliser R21-GL53.028 Stabiliser excluding cylinder R21-GL53.026 Three-point linkage with hydraulic stabilisers for 5.3 m crane Table of Contents...
- Page 29 ARTICULATED BOOM 21-GL53/63 PART NO. DESIGNATION R21-GL53.020 Articulated boom R21-GL53.021 Rotator bracket 21-KR07 Rotator R21-GL63.020 Complete valve block package GL63 2-lever PART NO. DESIGNATION R21-GL63.001 Gasket kit, rotating cylinder complete piston rod R21-GL63.018 Extension cylinder for gl63 crane R21-GL63.020 Complete valve block package GL63 2-lever R21-GL63.021 O-ring set for valve pack 2-lever GL63 Table of Contents...
- Page 30 ROTATOR HYDRAULIC DIAGRAM GL63 GRAPPLE CYLINDER STABILISER CYLINDER ROTATION CYLINDER STABILISER CYLINDER RETURN PRESSURE BOOM LIFTING ARM ROTATE ROTATE ROTATOR ROTATOR LIFTING ARM BOOM Table of Contents...
- Page 31 HYDRAULIC HOSES 21-GL63 IMPORTANT! CONNECTIONS MUST BE CHECKED FOR LEAKS AND RE-TIGHTENED REGULARLY. NOTE: DO NOT OVERTIGHTEN THE CONNECTIONS. OTHERWISE THEY MAY BE DAMAGED. Important! HYDRAULIC HOSES FROM VALVE BLOCK [8-COIL–2-LEVER] TO CYLINDER. LENGTH QUANTITY CONNECTION CONNECTION DESCRIPTION [mm] Valve block [“] ANGLE [°] TYPE Cylinder[“]...
- Page 32 40 x 44 x 50 40 x 44 x 50 40 x 44 x 50 40 x 44 x 50 40 x 44 x 50 145 x 150 x 90 25 x 28 x 30 25 x 28 x 20 40 x 44 x 40 40 x 44 x 50 40 x 44 x 50...
- Page 33 HYDRAULIC DIAGRAM GL73 ROTATOR EXTENSION CYLINDER GRAPPLE CYLINDER STABILISER CYLINDER ROTATION CYLINDER STABILISER CYLINDER RETURN PRESSURE BOOM LIFTING ARM ROTATE ROTATE ROTATOR ROTATOR LIFTING ARM BOOM Table of Contents...
- Page 34 NOTES: Table of Contents...
- Page 35 CLAIMS FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri's general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, as well as in the operating manual if supplied.
-
Page 36: Warranty Terms And Conditions
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
