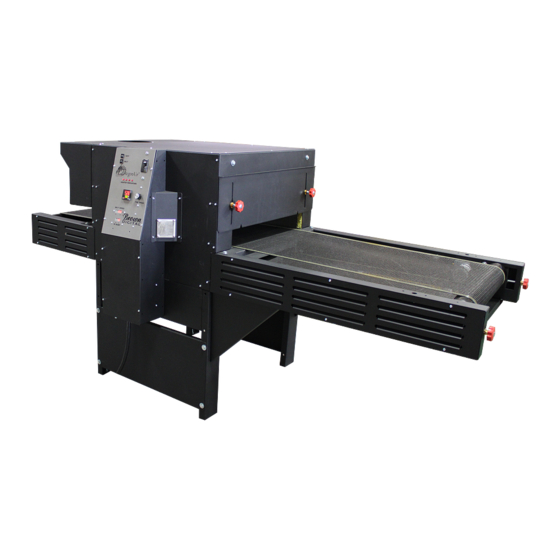

DAK-2408
Digital printing is a specialty market requiring a new way of thinking. Rapid produc-
tion of low volume, highquality graphics is necessary to produce high profits. The
new DragonAir line of curing systems is designed for water-based digital printing in
fast paced shops. The Dragon Air Core Technology ensured consistent and complete
curing on all garments.
$20.00
March 2022
Advertisement
Related Manuals for BROWN DragonAir DAK-2408
Summary of Contents for BROWN DragonAir DAK-2408

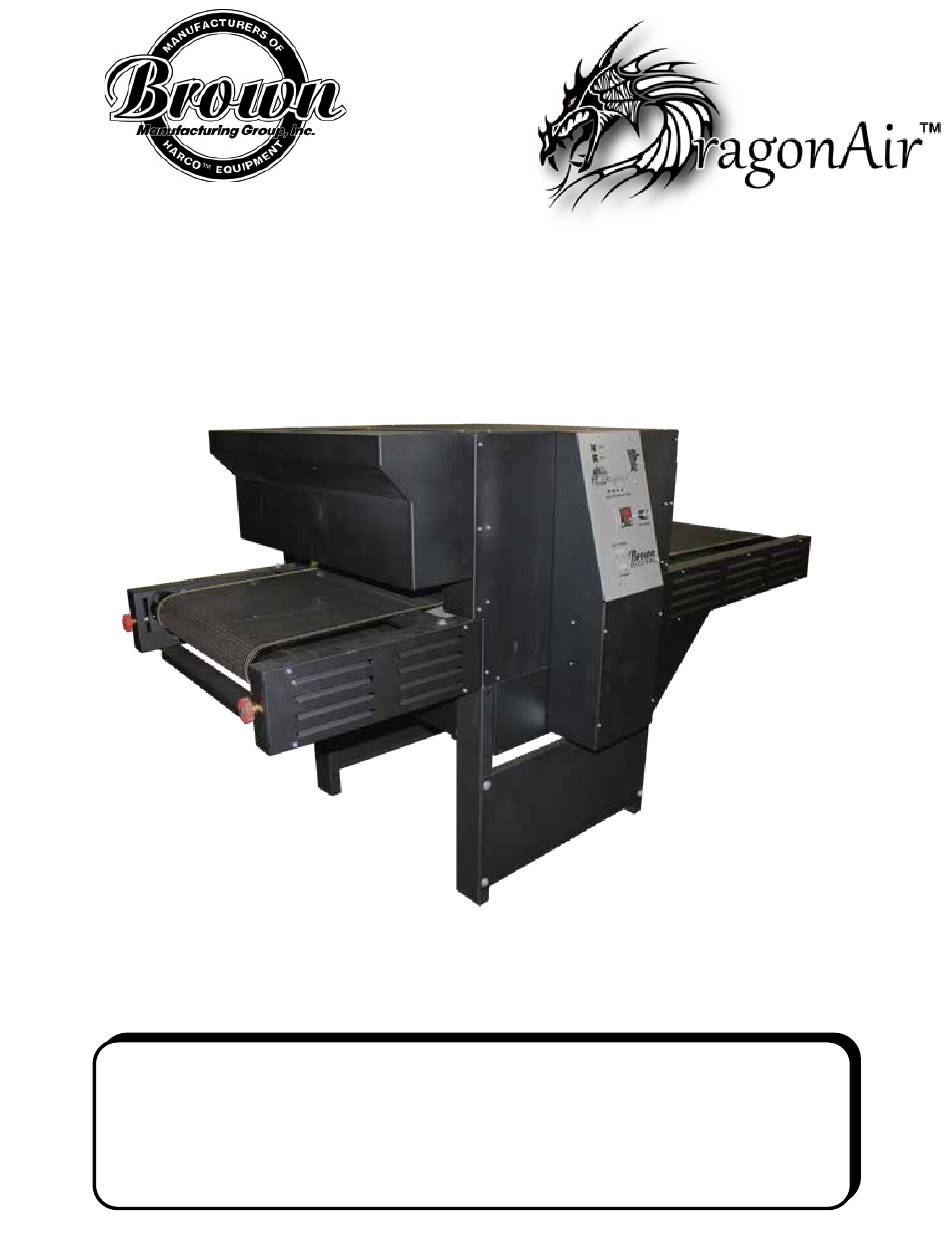

- Page 1 Brown Manufacturing Group, Inc. 4661 Stafford SW DAK-2408 Wyoming, MI 49548 616-249-0200 fax 616-249-3211 www.brownmfg.net customerservice@brownmfg.net DAK-2408 Digital printing is a specialty market requiring a new way of thinking. Rapid produc- tion of low volume, highquality graphics is necessary to produce high profits. The new DragonAir line of curing systems is designed for water-based digital printing in fast paced shops.
-
Page 2: Unpacking And Assembly
Unpacking and Assembly Step 6: Remove the cover plates from the feed extension Tools needed using a 1/4” nut driver. Remove the 3/8-16 nuts, washer and bolts from the feed extension. Remove the 3/8-16 bolts • 9/16 open end wrench or ratchet wrench and washers the front end of the oven. -
Page 3: Machine Adjustments
» Turn both tension adjustment knobs counter- marked “N”. Step 7: Install the dryer belt. clockwise to move the roller inward. This allows » Connect the copper or green ground to the chassis enough slack in the belt to loop around and using the grounding lug. -
Page 4: Dryer Operation
Dryer Operation Step 6: Adjust the belt speed. This reads as minutes in the chamber. 2:00 for DTG goods is a suggest start time. Do tests and adjust the speed to get maximum thru-put. Control Panel Layout. See Figure 3 Shut Down 1: Main power switch. - Page 5 (collectively referred to in this warranty as “this Product”). ▪ If you purchased a product from someone other than an authorized Brown reseller in the United States or if the product was used (including but not limited to floor models or refurbished product) prior to your purchase, you are not the Original Purchaser and the product that you purchased is not covered by this warranty.
- Page 6 Power Input 240/120V (120V-N) Max OCP: 40A BKR2 BKR3 BRD1 ZBRKR101(A)3A ZBRKR101(D)3/4A ZMTR111 Main Controller ZGMTR113 Belt Motor ZBULB133(C) ZTRIAC101 (External) 1000W Triac BRD2 ZSWITCH100 MOT1 Limit 1 Speed Sensor ZBULB133(C) ZFAN100(B) 1000W Control Panel BRD1 Cooling Fan ZMTR111 MOT2 Main Controller ZFAN105...
