Summary of Contents for Aquavolta Monmi-Tec HIM 3.0 ppm

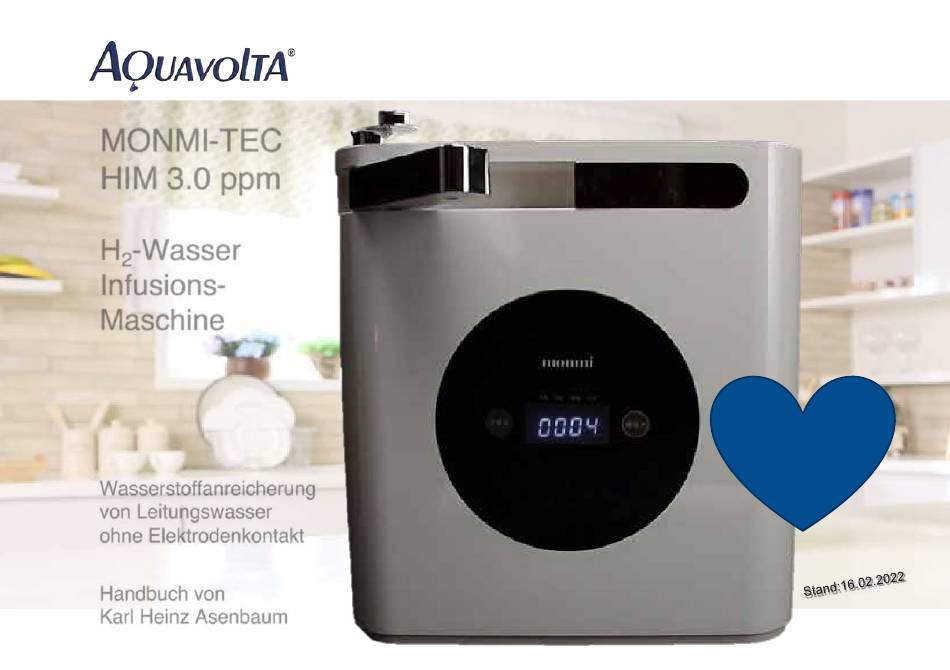

- Page 1 MONMI-TEC HIM ppm3.0 H-Water Infusion Machine Technology Sensation 2022 Hydrogen enrichment of tap water without electrode contact Manual from Karl Heinz Asenbaum...
- Page 2 ® water by up to 300millivolts.700 Due to its high readiness to release electrons, AquaVolta is ® also called antioxidant water. However, it is not only used by doctors for therapy, but is also establishing itself as a modern everyday drink due to its pleasant taste.
- Page 3 Hydrogen - The basic concepts Water molecule There is no doubt that hydrogen gas is the most interesting form of alternative energy of the future. Because kg1 of hydrogen puts kWh/kg33,33 on the road, neither petrol (12 kWh/kg) nor natural gas (max.
- Page 4 How do you get hydrogen gas into the water? Water is a super solvent for electrically polar (mg/l) substances, but not for the non-polar hydrogen gas H . CO dissolves much 3149 2295 1702 1487 1272 better, but is also x22 as heavy. To produce more enriched hydrogen water, you have to proceed in a similar way as we know it 100% H from soda fizzy drinks.
- Page 5 What is a HIM (Hydrogen Infusion Machine)? HIMs are designed to produce hydrogen-rich water "in flow" by infusing hydrogen gas without a long waiting time. They emerged in the mid- 2010s and are sometimes called "hydrogen servers". The PEM electrolysis cells used to produce the hydrogen gas are usually very similar.
- Page 6 What is the highlight of the Aquavolta Monmi-Tec ® ?3.0 2007Until recently, the leading patents in the new hydrogen medicine came from 3.22021Japan, Korea and China. The Malaysian inventor Tan Teong Chin (Chinese: Chen Zhongijn) and his Chinese partner Wang Shuaizhong published the patent for the Monmi-Tec, which can deliver the hydrogen concentration of mg/litre3 in the flow rate favoured by experts.
-
Page 7: Chapter Overview
Chapter overview - 08 General safety instructions - 26 Changing the laboratory water - 09 Scope of delivery - 27 Care and technical data - 10 Device overview - 28 Service and warranty - 11 Internal structure - 12 Overview of water and electricity connections - 13 Handling plug and quick coupling - 14... -
Page 8: General Safety Instructions
General safety instructions • Do not place the unit outdoors • Only operate the appliance if you have read and understood the operating instructions. • Do not use the mains cable if it is damaged or the cable has been kinked. •... -
Page 9: Scope Of Delivery
• Intake filter for water supply from canisters (2) • 5 Litre double distilled water (laboratory water) (4) • Adapter set (5a) for connecting the diverter valve with aerator (5b) (illustration similar) • Angle shut-off valve 3/8 inch with regulating lever (6) for connecting the Aquavolta ® Monmi Tec or a pre-filter to the angle valve. -
Page 10: Device Overview
Device overview Swivel device for outlet tap Main switch + connections Start/Stop Right button Left button Activates and Activated stops the Stop the Water flow from Hydrogen water Magnetically flow pre-structured water without Note: This unit is already sold in the hydrogen much larger market in China and is therefore still labelled with Chinese... - Page 11 Rear wall mounting Nameplate...
-
Page 12: Internal Structure
Internal structure Laboratory water tank + PEM-H cell storage tank Drain valve of the H-water Behind tank / water- mixing tank Disinfection Magnetic pre- Pressure pump structuring of the tap water... - Page 13 Overview of water and electricity connections Connection socket On the right side you will find the cold water inlet for power (IN) and the water outlet (OUT). After removing supply unit Main switch the plug, push the supply hose firmly into the IN Cold water input socket and a piece of hose at least 30 cm long (IN)
- Page 14 Handling the connectors, plugs and quick couplings 1. The inlets/outlets for the water are closed with plugs. The example drawings below show how this plugging technique works. 2. To do this, press down the ring marked PUSH on the schematic drawing while simultaneously pulling on the inserted tube or plug PULL.
- Page 15 The possibilities of water supply 1. Deflector (A): In this 3. Angle shut-off valve (B) without hole with mounting ring 2. Angle shut-off valve (B) simplest method, the (C): with hole: Here, the water ioniser is installed with a Here, too, the water is supplied through a branch from the supply is made through a deflector (A) on the tap, cold water corner valve.
- Page 16 Assembly A: With deflecting aerator 1. Unscrew the existing aerator on the left. 2. If external thread, skip3 step. 3. If there is an internal thread, select a suitable reversing adapter from the accessories and screw it in clockwise, including the black rubber seal (above!). 4.
- Page 17 Mounting B: On the angle valve with hole (plumber) 1. Open the cold water tap to release the pressure. With the cold water running, turn the cold water angle valve clockwise until no more water comes out at the top. 2.
- Page 18 Mounting C: On the angle valve with mounting ring (installer) The steps1 - 3correspond to the procedure on the previous page. 4. If your tap also has a hot water connection, you must unscrew it from the associated angle valve in the same way. 5.
- Page 19 Alternative (4.) Water supply from a drinking water canister Do you prefer to use purchased water rather than from the tap or a water filter? To do this, clear the upper entrance and the sewage outlet below. Then insert a hose into the water inlet, at the other end of which is the suction filter for the canister.
- Page 20 Preparation for first installation 1. Open front flap by pressing lightly..2. Insert the loose elbow connector firmly. 3. Press the front flap back on.
- Page 21 Filling in the double-distilled laboratory water 2. Fill laboratory 1. Pull out both plugs by applying 3. Push both plugs water here with the counterpressure (push) on the firmly back in. funnel until it retaining ring. 4. Wipe off overflows. water residues.
- Page 22 Connection of water supply, drainage and electricity 1. Loosen the plug of the cold water inlet and Plug the power supply unit 3. Connect the power firmly insert the feed hose from the water supply unit to the V220 24 V DC / 4 A output into feeder (deflector plator, angle shut-off valve, AC socket.
-
Page 23: Setting The Time
Setting the time... - Page 24 Initialisation of the system (duration hours3,5) Initialisation is only necessary for the first activation 2. Press and hold the left button until HHH is displayed. 1. Venting: Press the right button briefly: 3. In the next few hours3,5, the display shows the ->...
- Page 25 Regular operation: Tapping water 1. Place your drinking vessel under the swivelled-out water spout Water - 2. Briefly press the left button. Hydrogen water flows out. Substan ce - 3. Do not fill large water supplies. If you want to fill more than half a litre at a time, Water the enriched water from the mixing tank will be used up and the concentration of hydrogen will decrease.
- Page 26 Manual H Refuelling - 2x per week The integrated hydrogen pressure tank permanently loses H gas by releasing it into the hydrogen water in the mixing tank behind it. Therefore, the hydrogen supply in it must be refilled regularly (recommended x2 per week) with freshly produced H gas from the PEM cell.
- Page 27 Changing the laboratory water To drain the remaining old laboratory water after months2 of use, loosen the waste water hose, then pull out the lowest plug and insert the waste water hose into the lowest socket. Then open the two plugs on the top of the unit.
-
Page 28: Technical Data
Technical data When not in use for weeks3, after a transport, Manufacturer / Aquacentrum for Aquavolta®, Importer: Germany or for still-keeping, remove the laboratory water (see page 26) without refilling it. Then Model Aquavolta® Monmi Tec remove the front cover, remove the rear hose HIM. - Page 29 Service and warranty Your dealer is responsible for and the contact person for warranty services. This applies in particular to promises that exceed the two-year legal warranty. All warranty commitments are therefore listed on the purchase receipt (invoice) from your dealer. General sales and service centre: Aquacentrum, owner Yasin Akgün Münchener Str.
