Summary of Contents for Move SINGLE

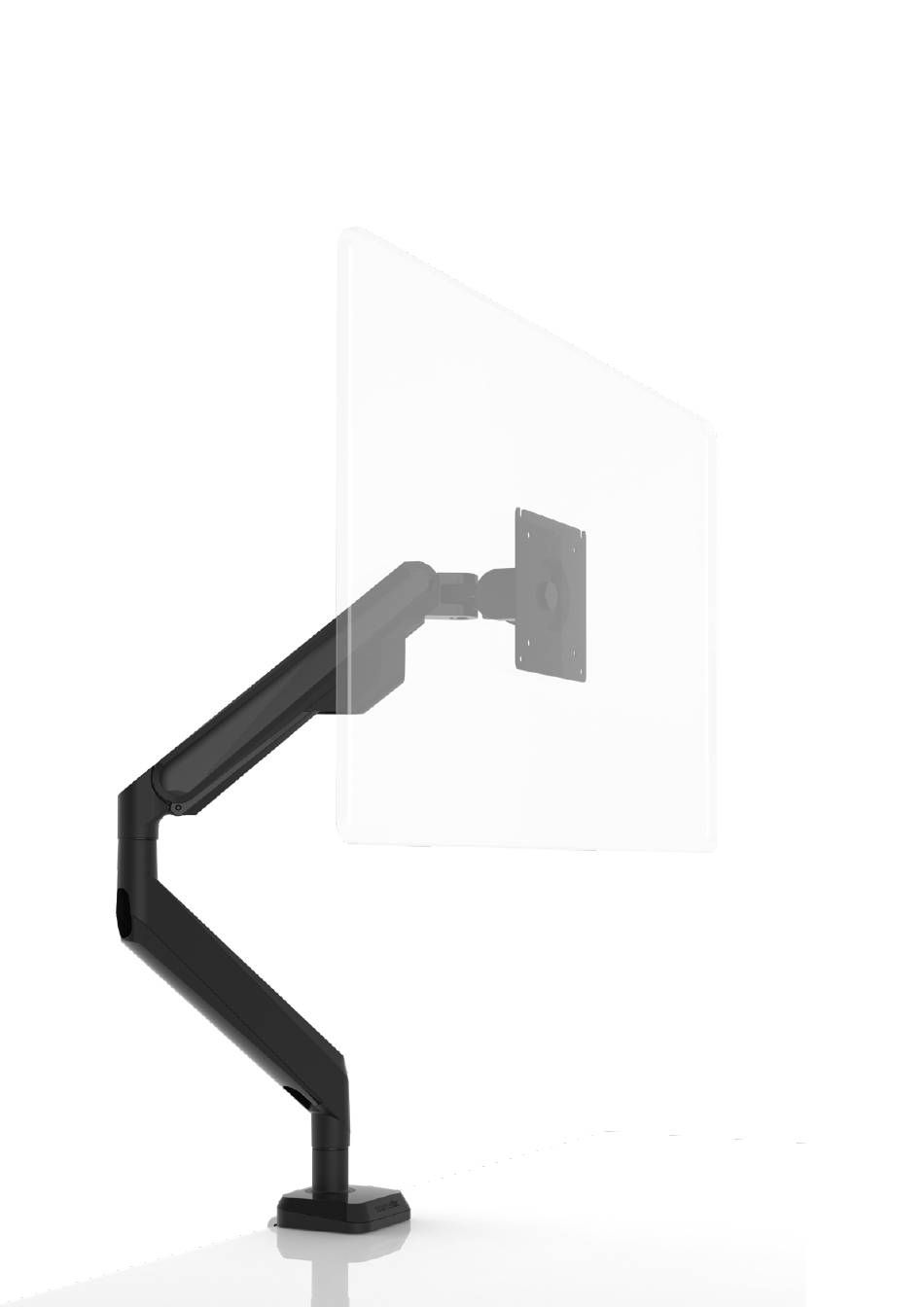

- Page 1 MOVE SINGLE Installation guide...
- Page 2 Item No.:D Insta MOVE SINGLE - Installation guide Desk clamp (1PC) Anti-slip mat (1PC) 3. Anti-slip ring (1PC) 4. Grommet support (1PC) 5. Anti-slip pad (2PCS) Item No.:DLB902-UK175 6. Grommet support-washer (1PC) Screw (1PC) 8. Butterfly nut (1PC) Installation guide 1.Desk clamp(1PC)
- Page 3 MOVE SINGLE - Installation guide Desk Clamp Desk clamp Adaptable tabletop thickness 20-25mm Tabletop Tabletop Tighten Through Desk Mounting Through desk mounting To adjust the swivel function use 5x5 allen key(F) on position 1 Attaching monitor Attaching Monitor To adjust the tilt function use...
- Page 4 After using, please put the 4X4 Allen key(E) here for storage. After installation, In case of display rising or dropping MOVE SINGLE - Installation guide automatically, please use 4x4MM allen key (E) tighten the screw in the direction of "...
- Page 5 MOVE SINGLE - Installation guide Safety This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children. • Make sure these instructions are read and completely understood before attempting installation. If you are unsure of any part of this installation, please contact a professional installer for assistance.
