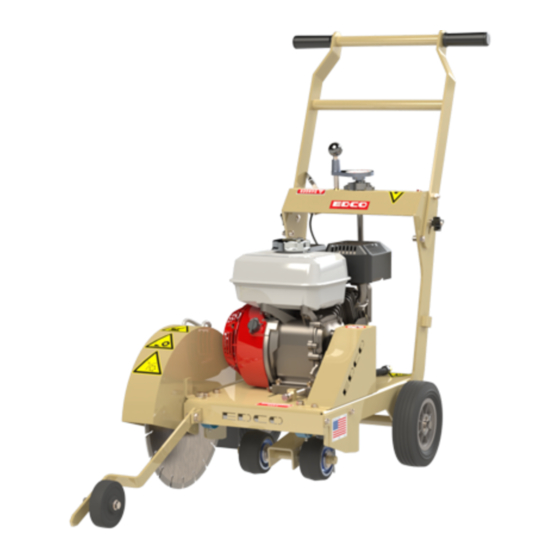

- Page 1 KL14-I-1017 E-SPTS-I-0809 Operator’s Instruction Manual KL-14 14” COMPACT SAW EQUIPMENT DEVELOPMENT CO., INC.

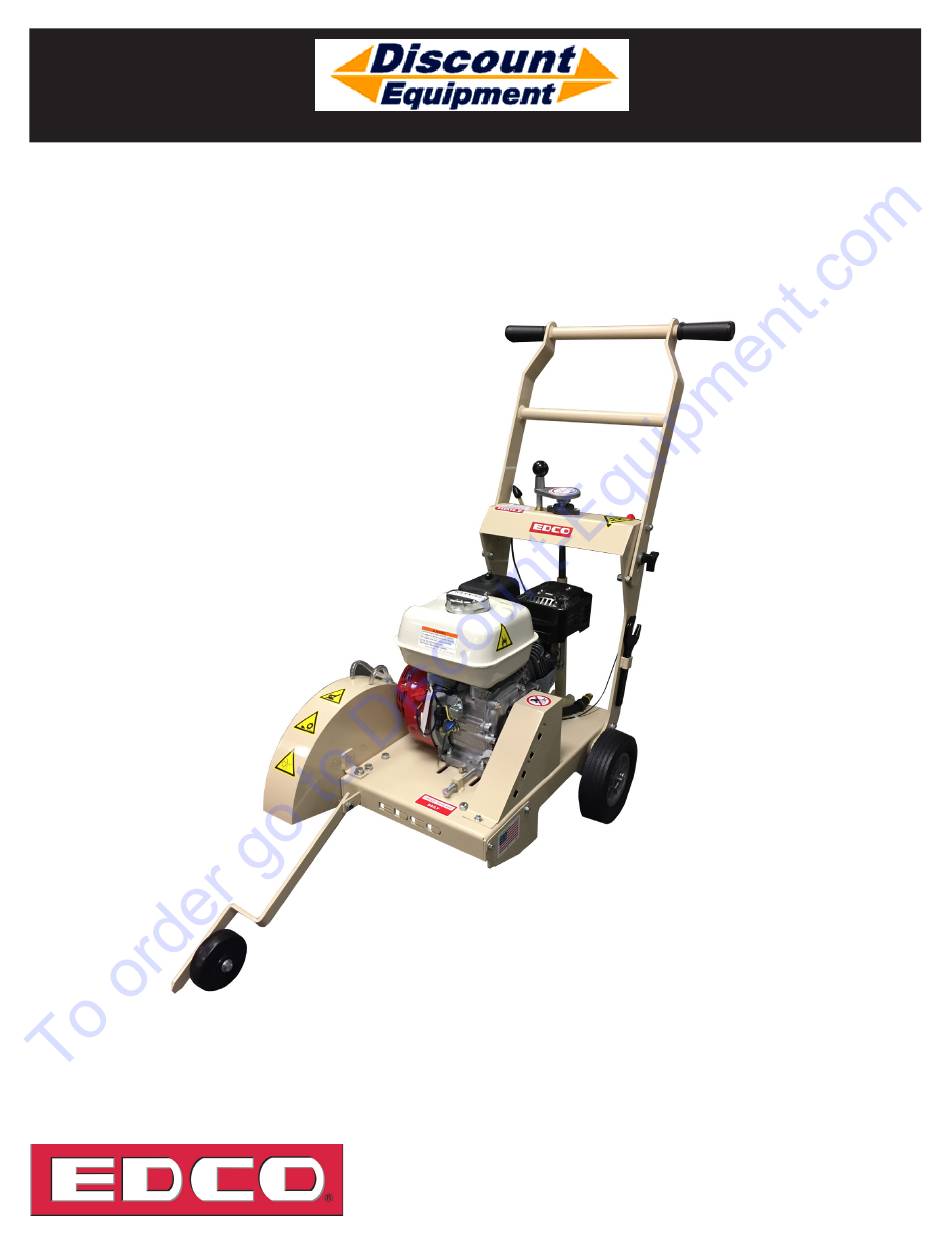

- Page 2 TO PURCHASE THIS PRODUCT PLEASE CONTACT US Equipment Financing and Extended Warranties Available Discount-Equipment.com is your online resource for commercial and industrial quality parts and equipment sales. 561-964-4949 visit us on line @ www.discount-equipment.com Select an option below to find your Equipment We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,...
-
Page 3: Safety Messages And General Instructions
KL14-I-1017 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. EQUIPMENT DEVELOPMENT CO., INC. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp MESSAGES the plug, not the cord. -
Page 4: Table Of Contents
KL14-I-1017 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. TABLE OF CONTENTS Section Page Number Safety Messages and General Instructions .................. 2 How To Order Replacement Parts ....................3 Safety Guidelines......................... 4 Operating Controls ........................5 Operating Instructions .......................6-7 Maintenance Instructions......................8 Changing Blade .......................... -
Page 5: Safety Guidelines
Hazardous areas should be properly identified and clearly marked. • The KL-14 is designed to be controlled by a single operator . Inspect the discs carefully before installing. Do not use any questionable disc since serious personal injury and/ •... -
Page 6: Operating Controls
KL14-I-1017 OPERATING CONTROLS MODEL KL-14 / 14” WALK BEHIND SAW EQUIPMENT DEVELOPMENT CO., INC. Collapsable Handle Handle Lock Choke Water Valve Rope Pull Guide Bar Depth Control Throttle On/Off Switch Please Note: Controls shown are for the model indicated. The location of these controls may vary on the different models. -
Page 7: Operating Instructions
KL14-I-1017 IMPORTANT NOTES Operating Instructions EQUIPMENT DEVELOPMENT CO., INC. EQUIPMENT DEVELOPMENT CO., INC. • Read and understand all operating instructions before operating this equipment. Death or serious injury can result if this machine is used improperly. • Concrete saws are designed to be used to cut flat horizontal concrete or asphalt slabs using diamond saw blades. - Page 8 KL14-I-1017 Operating Instructions • FOR WET CUTTING: Attach the water supply. A flow rate of approximately 2 gallons per minute EQUIPMENT DEVELOPMENT CO., INC. EQUIPMENT DEVELOPMENT CO., INC. (minimum) is required. Attach the water hose to the coolant valve. Use the valve to control the flow of water.
-
Page 9: Maintenance Instructions
KL14-I-1017 Maintenance Instructions Disconnect the machine from the power source. Remove the spark plug lead on gasoline engine models or disconnect the supply voltage connector on electric models, before performing any main- tenance. All maintenance to be performed regularly by qualified personnel. •... -
Page 10: Changing Blade
Never exceed the maximum operating speed of the blade. Be sure to match the blade speed rating with the arbor shaft speed on the machine. The standard models of the KL-14, SK-14, SB-14, DS-18 have an arbor shaft speed (uploaded) of 3600 RPM and 3000 RPM under load. -
Page 11: Lubrication Points
KL14-I-1017 EQUIPMENT DEVELOPMENT CO., INC. Grease Bearings Every 4 Hours of Use NOTE: Wipe grease fittings clean before servicing. Grease Fittings Page 10... -
Page 12: Maintenance Schedule
KL14-I-1017 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Maintenance Schedule Repairs are to be Read and follow instructions done by authorized in the Engine Manufacturer’s EDCO DEALERS only. Manual Follow Engine Manufacturer’s Maintenance Schedule Visual Inspection of Entire Machine Check Engine Oil Change Engine Oil* (Refer to Engine manual) Clean Air Filter Element*... -
Page 13: Smi Dust And Silica Warning
KL14-I-1017 EQUIPMENT DEVELOPMENT CO., INC. Safety Symbols This symbol means that the guards must remain in place while the engine/motor on the machine is running because death or personal injury may result. (Yellow background with black pictogram and black outline) This symbol means that there are moving parts and if feet/fingers/digits are inserted under any edge of the cutter/grinder/saw cover while the engine/motor on the machine is running that personal injury and loss of foot/fingers/digits may result. -
Page 14: Machine Safety Symbol Reference
KL14-I-1017 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Safety Symbols This symbol means that the Operator’s, owners, instruction and/or manufacturer(s) manuals must be read and understood before operating or attempting to operate this electrical, gasoline, diesel or propane powered equipment, failure to do so can result in personal injury and possible death. (Blue background with white pictogram.) This symbol means that proper eye protection must be worn/used during the operation of this equipment. - Page 15 KL14-I-1017 EQUIPMENT DEVELOPMENT CO., INC. E-DCSW-0617 DUST AND CRYSTALLINE SILICA WARNING REVISED JUNE 1, 2017 Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm.
