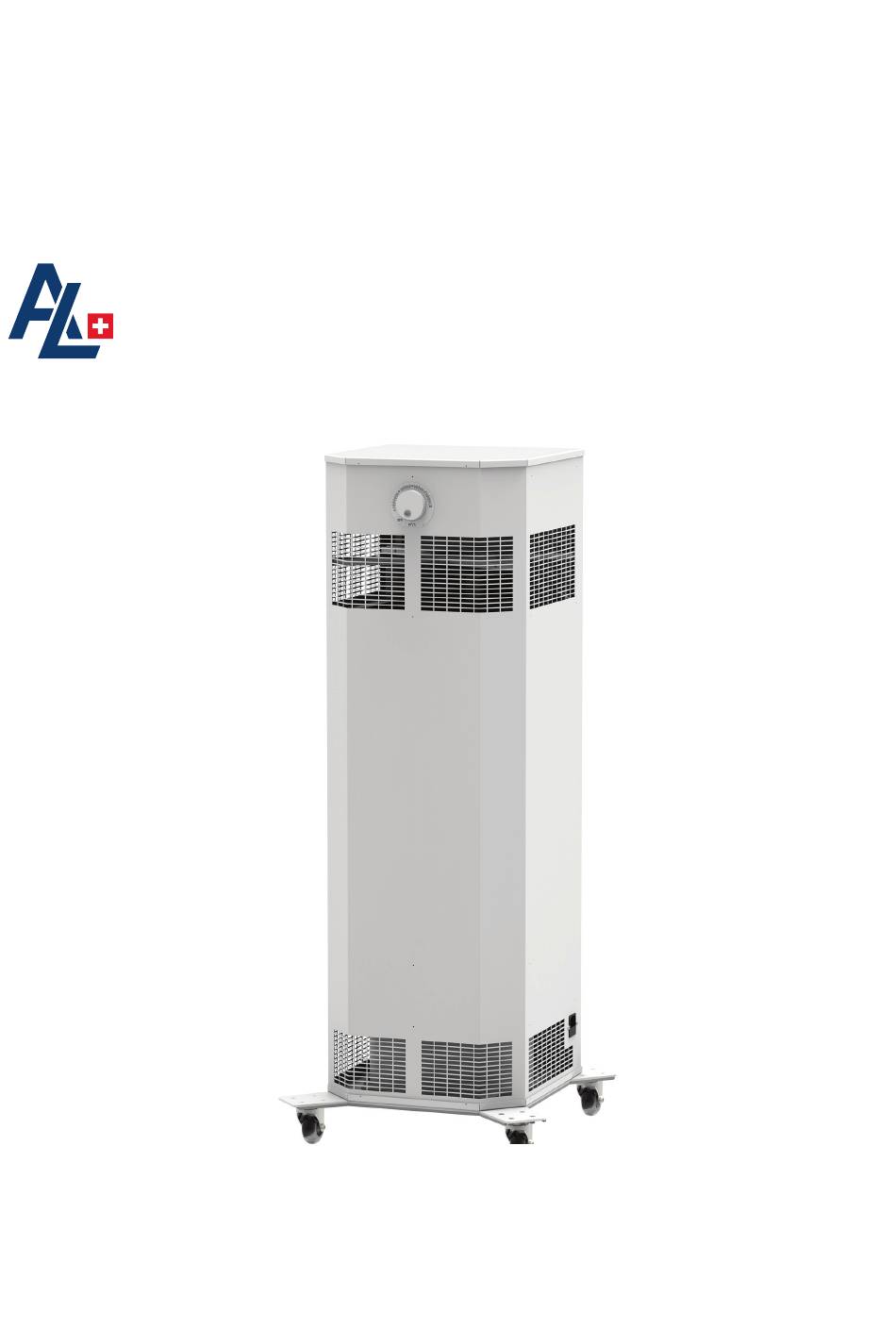

Page 1 AIR PURIFICATION AND DISINFECTION SYSTEMS SA-100. Stand-alone devices USER MANUAL...
Page 2 AL SA-100 Photocatalytic Air Purifier User Manual Airlife Swiss AG Manufacturer Dorfstrasse 38, 6340, Baar, Switzerland Project: 54000-10 AL SA-100 Document: 54000-10-0001 Article: Issued: 04.01.2021 Kharis Musaleev Reviewed: 11.01.2021 Adrian Gubser Language: Revision: Document type: Status: Eng. Technical document In Work...
Page 3: Table Of Contents
54000-10-0001 Table of Contents Intended use ....................3 Contents ..................... 4 Design and Technical Specifications ............5 Overview of the Air Purifier SA-100 Description of the main Components Technical Specifications Product use ....................8 Placement of the Product Turning the Product ON...
Page 4: Intended Use
This manual is an integral part of the product and must be provided to the customer at the point of purchase. This user manual applies to the photocatalytic air purifier AL SA-100 (hereinafter – air purifier, product, device) designed for purification of air of any types of microbiological contaminants (mold spores, viruses, bacteria), dust, solid and liquid aerosols, any types of allergens, unpleasant odors, and toxic substances.
Page 5: Contents
Document: Language: Revision: Eng. 54000-10-0001 Contents The shipping contains the following items: Item Designation Amount Air Purifier User/Maintenance Manual Transport Packing Packaging Please, check the contents of the package before use. If any items are missing or damaged, please contact the supplier or manufacturer. The contact information is provided on the front page of this user manual.
Page 6: Overview Of The Air Purifier Sa-100
Eng. 54000-10-0001 Design and Technical Specifications Overview of the Air Purifier SA-100 Description of the main Components 1. Pre-filter – removes dust and particles larger than 15 μm in size. 2. Aerosols charging unit – ensures a symmetrical electrostatic field inside the element and 99.9% filtration efficiency for particles between 0.1 and 100 μm in...
Page 7 Document: Language: Revision: Eng. 54000-10-0001 photocatalyst oxidizes micro-organic substances, volatile organic compounds, and allergerns to harmless components – carbon dioxide, water and atmospheric nitrogen. 4. UV-A emitter – UV-radiation provides energy for activation of photocatalyst. The device is equipped with UV-lamp with the wavelength of 320- 400 nm (spectrum A).
Page 8: Technical Specifications
Document: Language: Revision: Eng. 54000-10-0001 Technical Specifications Parameter, units Value Indoor use only Cleaning capacity, m Max. 300 Recommended location area of operation, m 25 - 50 Filtration efficiency against aerosols, % 99.96 Effect on the ion composition of air None Range of UV-radiation, nm 320 - 400...
Page 9: Placement Of The Product
54000-10-0001 Product use Placement of the Product SA-100 must be positioned to stand vertically on an even base. The device has wheels on the bottom for portability. All four wheels can be locked for convenience. Place the device so that the furniture has the minimal impact on the course of air flow.
Page 10 (Fig. 1) by turning it clockwise. Set the required level of air supply. The continuous work time is unlimited. SA-100 takes in the contaminated air from the bottom and let purified air out through the upper part of the unit.
Page 11: Turning On After A Long Break In Operation
Document: Language: Revision: Eng. 54000-10-0001 Figure 1 No. 1: Air Supply Controller No. 2 Shielded Enclosure Turning the product ON after a long Break in Operation A “sour” smell may occur in the purified air when it is turned on after long breaks. This is not a malfunction and associated with gas adsorption on the surface of a photocatalyst in the absence of UV-radiation.
Page 12: Emergency Situations
Document: Language: Revision: Eng. 54000-10-0001 Emergency Situations The most likely emergency events are: − presence of unusual noise; − foreign objects or water penetration inside the device; − disconnection from the ground. Attention In the presence of faults (for example, burning smell), immediately switch off the device! Contact the manufacturer for the following advice.
Page 13: Technical Maintenance, Repair And Replacements
Document: Language: Revision: Eng. 54000-10-0001 Maintenance, Repair and Replacement The owner of the device is allowed to carry out maintenance. Due to safety reasons, repair shall be carried out by a person authorised by the manufacturer. Chapter 6.2 provides detailed maintenance description, which can be done by the owner.
Page 14: Contact Of The Manufacturer
Document: Language: Revision: Eng. 54000-10-0001 Maintenance includes the following procedures: − keeping the housing clean outside; − cleaning the aerosols charging unit; − replacement of an UV-A emitter (lamp) once it depletes its resources; − replacement of filters. Designation Change/Clean Interval UV-A emitter (lamp) Latest after 2 Years...
Page 15: Replacement Description For The Owner
Maintenance Description for the Owner Tools for maintenance: 1. Allen Key size 3 Phillips Screwdriver size 2 Photocatalytic Air Purifier AL SA-100 Step 1 (General): Disconnect the power cable from the power socket. 1. Maintenance door cover. 2. Screw for disassembling the cover.
Page 16 Document: Language: Revision: Eng. 54000-10-0001 Step 2: 1) Put the device on a flat surface, turn the back side to yourself (the side with the hand grip is on the top side now). 2) Remove the screw cap and dissemble the screw with Allen key (key size 3).
Page 17 Document: Language: Revision: Eng. 54000-10-0001 Step 5: 9, 9a, 9b, 9c. Push the bottom and take out click connector. Step 6: Press from above the filter plate (8a) 54000-10-0001 - User Manual - Final (3).docx Page 16/30...
Page 18 Document: Language: Revision: Eng. 54000-10-0001 Step 7: Pull out the filter plate towards you Step 8: Put the filter on a flat surface Step 9: Disassemble the finger nut to weaken the clamp ring. IMPORTANT: the filter must be grounded. 54000-10-0001 - User Manual - Final (3).docx Page 17/30...
Page 19 Document: Language: Revision: Eng. 54000-10-0001 Step 10: Pull out the clamp ring up with UV-A lamp Step 11: 1) Screw the UV-A lamp off the clamp ring (if needed to be changed); 2) Carry out a visible inspection of the filtration unit, UV-A lamp.
Page 20 Document: Language: Revision: Eng. 54000-10-0001 Step 12: Remove the combined polarized adsorption-photocatalytic filter. Step 13: Put a new combined polarized adsorption- photocatalytic filter. 54000-10-0001 - User Manual - Final (3).docx Page 19/30...
Page 21 Document: Language: Revision: Eng. 54000-10-0001 Step 14(Assembling): The assembly is carried out in the reverse order. Screw the UV-A lamp in the clamp ring clockwise (if needed). Step 15: Put the clamp ring with the UV-A lamp back in the filter plate. 54000-10-0001 - User Manual - Final (3).docx Page 20/30...
Page 22 Document: Language: Revision: Eng. 54000-10-0001 Step 16: Assemble the finger nuts to fix the clamp ring. Step 17: Carry out a visual inspection of the filter. 54000-10-0001 - User Manual - Final (3).docx Page 21/30...
Page 23 Document: Language: Revision: Eng. 54000-10-0001 Step 18: Push the filter back into the housing though the rails of the unit until it stops. Check the service space, make sure that no elements prevent the setting of the maintenance door cover (1). Step 19: Press up the filter plate back on horizontal position.
Page 24 Document: Language: Revision: Eng. 54000-10-0001 Step 20: Connect click connectors to the bottom part of the filter plate. Step 21 (Maintenance of pre-filter): Pull the pre-filter out of the housing. 54000-10-0001 - User Manual - Final (3).docx Page 23/30...
Page 25 Document: Language: Revision: Eng. 54000-10-0001 Step 22: 1) Take a new strap of pre-filter; 2) Put the new pre-filter into the housing. Step 23: (Maintenance/cleaning of aerosols charging unit): Disconnect the pin of the grounding cable (10) from the aerosols charging unit. 54000-10-0001 - User Manual - Final (3).docx Page 24/30...
Page 26 Document: Language: Revision: Eng. 54000-10-0001 Step 24: Disconnect the high-voltage cable from aerosols charging unit, and pull out aerosols charging unit. Step 25: 1) Clean aerosols charging unit by hand, it is allowed to use water and detergents for it. IMPORTANT: after treatment...
Page 27 Document: Language: Revision: Eng. 54000-10-0001 Step 26: Сonnect the pin of the grounding cable (10) from the aerosols charging unit. Step 27: 1) Connect the grounding pin (7); 2) Hold the maintenance door cover (1) at an angle to the device and put it in the slot of the device (for easier placing put the hand grip (3) tightly down;...
Page 28 Document: Language: Revision: Eng. 54000-10-0001 Step 28: 1) Install and fix the assembly screw (2) with the Allen key. 2) Connect the device to the power supply and make sure it works correctly. Important signs: 1 - Danger: High voltage. 2,3,4,5 –...
Page 29: Warranty
54000-10-0001 Warranty The warranty period of the air purifier SA-100 is 2 years from the initial start-up, if maintained strictly according to User Manual. The service life of the device is 10 years, if used in accordance with the User Manual. The warranty shelf life of the device is 3 years of the date of manufacture,...
Page 30: Storage And Transport
Document: Language: Revision: Eng. 54000-10-0001 Storage and Transportation The product can be transported using any type of transport that would ensure product integrity. Compliance with the transport rules that apply to such transport is essential during transportation. Transport conditions, relating to climate factors of the environment, are provided in Table 9.1.
Page 31 Declare that: Equipment: Air Purifier Model name: SA-100 Serial number: ____________ Is in accordance with the following Directives: - Low Voltage Directive 2014/35/EU - Electromagnetic compatibility 2014/30/EU And has been designed and manufactured to the following standards: EN ISO 12100:2010, EN 60335-1, EN 60335-2-65, EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3.
Page 32 AIRLIFE SWISS AG Dorfstrasse 38, 6340, Baar, Switzerland +41 44 508 75 43 info@airlife.swiss www.airlife.swiss...
