Accessory Installation Instruction
KWU for KS1150 Model

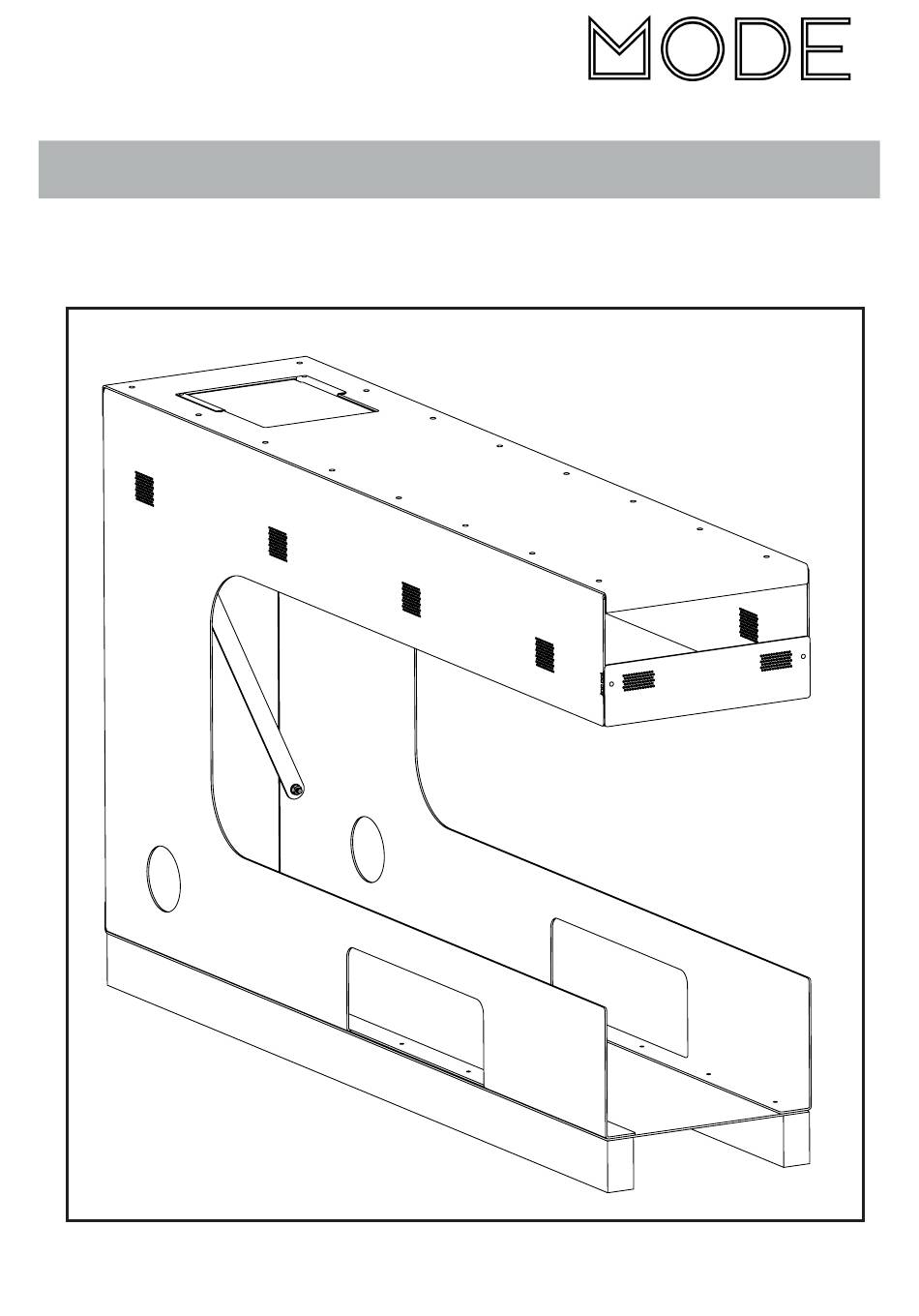

The Kitset Wall Unit (KWU) for the KS1150 models is a sheetmetal support structure designed to make the
installation of the KS1150 Peninsula and the KS1150 LH-RH Corners more straightforward.
Once assembled, it will support wall cladding of up to 500kg without transferring load to the fire.
630497_1
Advertisement
Table of Contents
Summary of Contents for MODE KWU
- Page 1 Accessory Installation Instruction KWU for KS1150 Model The Kitset Wall Unit (KWU) for the KS1150 models is a sheetmetal support structure designed to make the installation of the KS1150 Peninsula and the KS1150 LH-RH Corners more straightforward. Once assembled, it will support wall cladding of up to 500kg without transferring load to the fire.
- Page 2 MIN. 350 mm The KWU will need to be attached to timber framing with the dimension shown above (not supplied). Begin by setting the bottom on the timber. Set the left and right sides on top and affix using the 16 x #8-1 1/4 screws.
- Page 3 Set the top onto the two sides and affix. Attach the 2 x hangers as cross braces across the back. Slide the KS1150 Peninsula or KS1150 LH or RH Corner into the KWU. The holes on each side are to assist with access while sliding the fire in.
- Page 4 Use the supplied bend tool to bend the tabs on the top front of each side. Affix the front panel in place at the top. Use the supplied #8 - 5/8 screws to affix the KWU onto the fire (2 screws per side).
- Page 5 KWU for KS1150 Model The top plate on the KWU can sit in one of two positions depending on the required flue position. Position 1 covers the entire opening on the top; position 2 covers half the opening with the plate sliding partway under.
