Cornwell Tools CTBMM500BK Assembly Instructions

ASSEMBLY INSTRUCTIONS
C
O
R
N
W
E
L
L
T
O
O
L
S
RIGID CASTER
• Read and follow all instructions in User's Manual.
• Do not load carts beyond rated capacity:
Maximum Total Net Load ........................................700 Lbs.
Top 3 Drawers .................................................. 75 Lbs. each
Bottom 2 Drawers .......................................... 150 Lbs. each
PLEASE NOTE: Loading cart beyond rated capacity may
cause structural damage to the cart as well as personal
and/or property damage. Please educate your customers to
the "dangers of overloading".
CTBMM500BK, BL, RD, RG, NG
SWIVEL CASTER with LOCK
WARNING

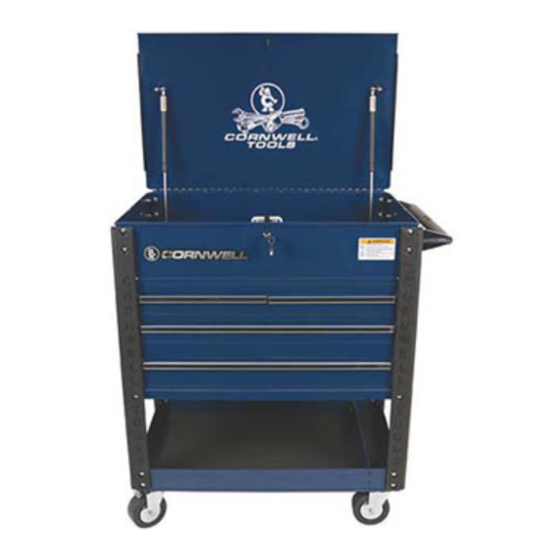

5 Drawer Pro Series Service Cart
Mount push handle (Part #5) to the
same side of the cart as the locking
casters using the four stove bolts,
washers, and nuts provided.
Using 13mm socket completely tighten
all nuts.
• Lock lid and drawers before moving. • Apply brake on locking
casters anytime cart is in place. • Do not pull cart. Push from
handle on end to move. • Units can tip or fall causing damage or
personal injury. • Cart is designed to roll easily on flat surfaces
and should not be used on uneven or inclined surfaces. • Do
not open more than one loaded drawer at a time. • Do not stand
on or step in drawers. • Keep children away from unit. • Wear
gloves when lifting edges. • This product may contain one or
more chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm. Wash hands
thoroughly after handling. • Failure to heed these warnings may
result in personal injury and/or property damage.
1
CTBMM500BK, BL, RD, RG, NG
Rev. 12/01/16
