Sola locks with a touch RFID interface are operated by an RFID credential or by an ADA compliant User Key. Manager Keys provide
management access and external power. Programming is accomplished via a Programming Key unique to the lock system.
Lock Orientation - Views
Key Slot
Handle
Vertical
User Credentials
User Key
Keys
Operates the lock
Overrides user access
Allows access for management inspection
Provides external power
Assigns user credential
Programs Manager Keys to the lock
Up to 25 Manager Keys may be programmed to a lock.
1
Product Guide
Reader
Key Button
LED Usage Indicator
RFID Card
User Key
●
1 Programming Key allowed per lock group.
2
Touch RFID
Key Managed
SOLA can be installed vertically or horizontally for left or right handed configuration.
Horizontal with Handle on the Left
Horizontal with Handle on the Right
RFID Adhesive
Label
Manager Key
●
●
●
●
●
1
Assigned Use Functionality
RFID Wristband
RFID Keyfob
Programming Key
1
●
●
●
●
●
2
Advertisement
Summary of Contents for MALOW SOLA3

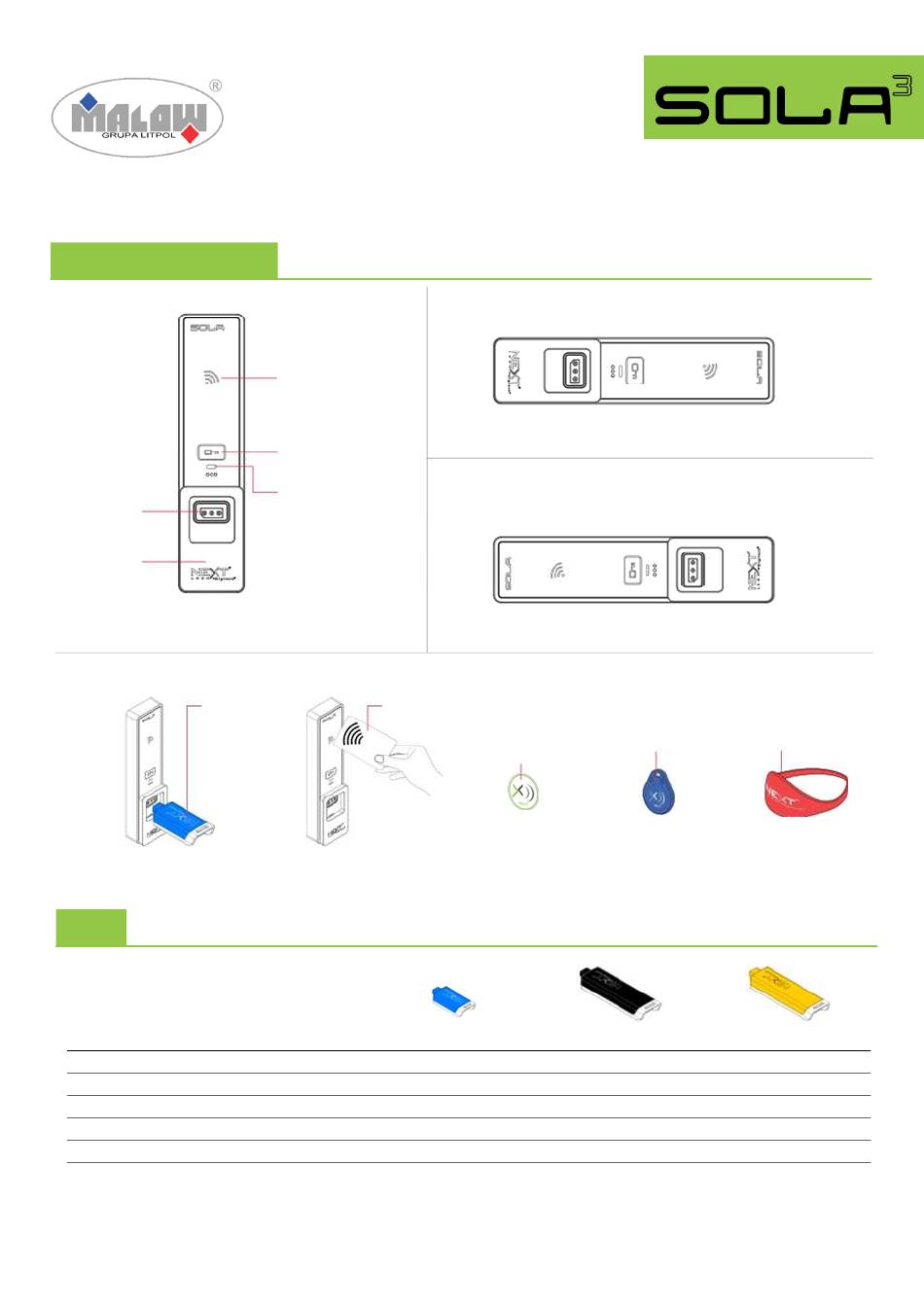

- Page 1 Product Guide Touch RFID Key Managed Assigned Use Functionality Sola locks with a touch RFID interface are operated by an RFID credential or by an ADA compliant User Key. Manager Keys provide management access and external power. Programming is accomplished via a Programming Key unique to the lock system. Lock Orientation - Views SOLA can be installed vertically or horizontally for left or right handed configuration.
-
Page 2: Product Guide
Product Guide Touch RFID Key Managed Assigned Use Functionality Key Insertion Horizontal - Handle on Left Vertical Horizontal - Handle on Right Handle Positions 90º 90º Counter-Clockwise 90º Clockwise Locked Locked to unlock to unlock 180º 180º Counter-Clockwise 180º Clockwise Locked Locked to unlock... -
Page 3: Programming Instructions
Product Guide Touch RFID Key Managed Assigned Use Functionality Setup Locks are shipped with factory default settings (only operates by pressing ). Each lock must be set up to operate with a Programming Key and Manager Keys. Repeat above steps for each lock While the LED is flashing, insert While the LED is flashing, insert Insert the Programming Key. - Page 4 Product Guide Touch RFID Key Managed Assigned Use Functionality Programming Instructions Add Manager Keys Manager Keys can be programmed to the locks at any time. Go to a lock requiring additional While the LED is flashing, insert While the LED is flashing, insert Insert the Programming Key.
- Page 5 Product Guide Touch RFID Key Managed Assigned Use Functionality Programming Instructions Assign the User Credential Once a user credential is assigned, the previously assigned user credential will no longer operate the lock. RFID CARD Assign a User RFID Credential: Present the RFID credential to the RFID reader. Touch and hold for 5 seconds (a two-tone beep will be heard Two sets of two-tone beeps will be heard and the LED and RFID reader...
- Page 6 Product Guide Touch RFID Key Managed Assigned Use Functionality Operating Instructions - In Assigned Use Functionality In assigned use functionality, users operate the lock with their assigned user credential (either a User Code or a User Key). To reassign a lock to a different user, follow instructions to Assign the User Credential.
-
Page 7: Battery Replacement
Product Guide Touch RFID Key Managed Assigned Use Functionality Support Low Battery Indicator After locking or unlocking, the lock emits two sets of three beeps indicating that the batteries are low. Replace the batteries. Does not Unlock with the User RFID Credential or User Key The lock does not recognize the User Code or User Key.
