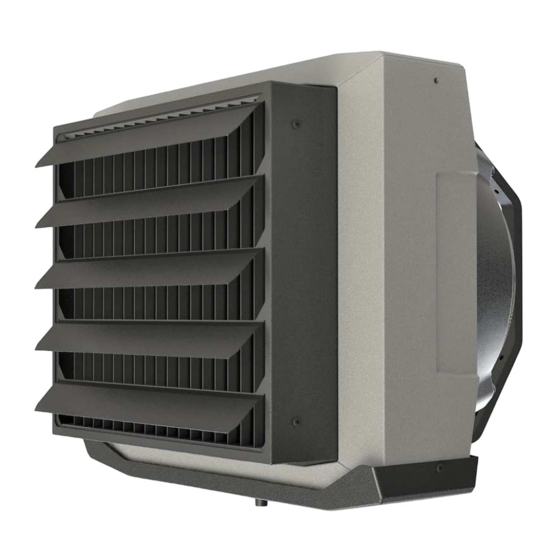

- Page 1 FAN COOLER AND HEATER MUAT-FBC SERIES Installation manual MUAT-10-FBC MUAT-20-FBC CL05208 to CL05209 English www.mundoclima.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Application ....................3 2. Technical Data..................4 3. Installation ....................6 3.1. Installation – bracket ................. 6 3.2. Assembly instructions ............... 6 4. Connection diagrams ................7 5. Start-Up and Operation ................10 6. Service and warranty terms ..............13 7. -
Page 3: Application
1. APPLICATION FBC fan coolers/heaters make up a decentralised cooling/heating system. The air streaming through the heat exchanger is cooled/warmed up. Fan coolers/heaters are used for cooling/heating large volume buildings: general, industrial and public buildings etc. The casing of FBC fan coolers/heaters is made from extended polypropylene EPP. Water droplet catcher and condensate tray are made of ABS plastic The devices are designed for indoor use where maximum air dustiness does not exceed 0,3 g/m . -
Page 4: Technical Data
2. TECHNICAL DATA MUAT-10-FBC MUAT-10-FBC Speed Max airflow [m3/h ] 2900 2050 1150 Power supply [V/Hz] 230/50 Max current consumption [A] Max power consumption [W] IP/ Insulation 54 /F Max acoustic pressure level [dB(A 64,1 54,5 42,1 Horizontal range** [m] 18,0 12,7 Max heating water temperature [... - Page 5 2. TECHNICAL DATA MUAT-20-FBC MUAT-20-FBC Speed Max airflow [m3/h ] 4200 3350 2000 Power supply [V/Hz] 230/50 Max current consumption [A] Max power consumption [W] IP/ Insulation class 54 /F Max acoustic pressure level [dB(A)]* 67,5 61,1 52,3 Horizontal range** [m] 20,5 16,3 Max heating water temperature [...
-
Page 6: Installation
3. INSTALLTION Units can be mounted to vertical partitions using rotary console. The device should be leveled MUAT-10-FBC MUAT-20-FBC 2,5-7,0 2,5-7,0 3.1. INSTALLATION – BRACKET 3.2. ASSEMBLY INSTRUCTIONS M8 screws are in set with bracket Connect pipe for draining condensate If the outer tube fits loosely, use a hose clamp... -
Page 7: Connection Diagrams
4. CONNECTION DIAGRAMS valve| SRQ: max. 3 x MUAT-10-FBC min. 3x0,75mm max. 2 x MUAT-20-FBC SBV: min. 2x0,75mm PG11 min. 3x1mm min. 3x1mm 1 2 3 4 5 6 7 8 Continious mode | L N PE 230V/50Hz W ire s s iz e a n d ty p e s h o u ld b e c h o s e n b y th e d e s ig n e r.| Thermostatic mode | HEAT OF F... - Page 8 4. CONNECTION DIAGRAMS DRV... S W 2 DRV IN 1 2 4 8 16 Y1 screen LIYCY-P m in. 2x 2x 0,5m m 2 , m ax . 50m CY-P m in. 2x 2x 0,5m m 2, m ax . 50m m in.
- Page 9 EN: DRV modules can be connected to the BMS (Building Management System). BMS / GBS WARNING: The connection must be carried out with 3-wire (recommended UTP) to connectors DRV IN...
-
Page 10: Start-Up And Operation
5. START-UP AND OPERATION Guidelines for System Connection Periodic inspections In the case of devices intended for cooling, control valves cutting off the To keep proper technical parameters Salvador Escoda SA recommends flow of the fluid through the exchanger should be used. In the periodic service (every 6 months) of fan heaters on behalf of the user. -
Page 11: Service And Warranty Terms
6. SERVICE AND WARRANTY TERMS Please contact your dealer in order to get familiar with the warranty terms and its limitation. In the case of any irregularities in the device operation, please contact the manufacturer’s service department. The manufacturer bears no responsibility for operating the device in a manner inconsistent with its purpose, by persons not authorised for this, and for damage resulting from this! -
Page 12: Conformity With Weee Directive 2012/19/Ue
Running a business without harming the environment and observing the rules of proper handling of waste electrical and electronic equipment is a priority for MUNDOCLIMA. The symbol of the crossed out wheeled bin placed on the equipment, packaging or documents attached means that the product must not be disposed of with other wastes. - Page 13 C/ NÁPOLES 249 P1 08013 BARCELONA SPAIN (+34) 93 446 27 80 www.mundoclima.com...
