Larksound L210K User Manual

Larksound L210K User Manual

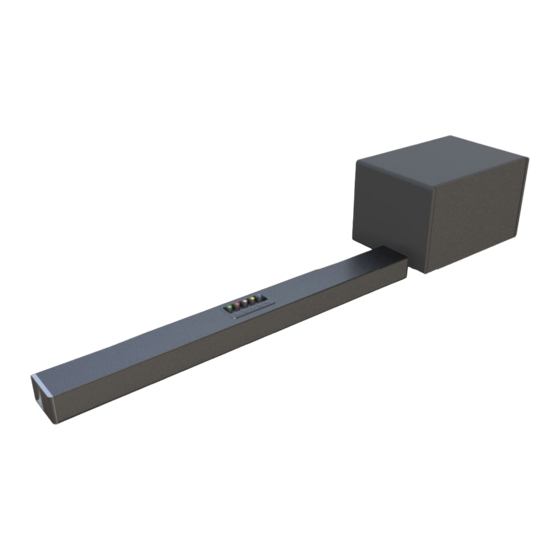

2.1ch karaoke soundbar

Advertisement

L210K
2.1CH Karaoke Soundbar
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L210K and is the answer not in the manual?

Questions and answers

Terence Small
February 26, 2025

What is wall bracket spacing 16" on center

2 comments:
Mr. Anderson
February 26, 2025

The wall bracket spacing for the Larksound L210K can be determined using the wall mounting template provided in the package.

This answer is automatically generated

Terence Small
February 26, 2025

@Mr. Anderson Want to purchases one based on this measurement

user
March 7, 2025

the piece of crap will no stay on

1 comments:
Mr. Anderson
March 7, 2025

The Larksound L210K may not stay on due to the following reasons:

1. Power Connection Issues – Ensure the power supply is properly plugged into a wall outlet.
2. Manual Power Off – The device needs to be turned on using the power button; if turned off, it must be manually restarted.
3. Safety Features – The device should be switched off when not in use for safety reasons.
4. Ventilation Blockage – Ensure there is at least 20 cm of space above and 5 cm on each side to prevent overheating.
5. Damaged Power Cord – If the power cord is damaged, it must be replaced by a qualified technician.

Checking these factors can help determine why the soundbar does not stay on.

This answer is automatically generated

Summary of Contents for Larksound L210K

  • Page 1 L210K 2.1CH Karaoke Soundbar USER MANUAL...
  • Page 2 Important Safety Instruction Thank you for purchasing the home theater L210K Soundbar. Please read this user manual  carefully and keep for future reference. Warning Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the  apparatus to rain or moisture. No user‐serviceable parts inside. Refer servicing to qualified personnel only The lightning flash within an equilateral triangle is intended to alert you to  the presence of uninsulated dangerous voltage within the product’s  enclosure that may be of sufficient magnitude to constitute an electric  shock to a person or persons. Important! This symbol alerts you to read and observe important warnings  and instructions on the unit or in this manual. Notice: This appliance is not intended for use by persons (including children) with reduced physical  sensory or mental capabilities, or lack of experience and knowledge, unless they have been  given supervision or instruction concerning use of the appliance by a person responsible  for their safety. Children should be supervised to ensure that they do not play with the  appliance. 1. To prevent possible hearing damage, do not listen at high volume levels for long time  periods or a sudden high volume level. 2. Never use the device unsupervised! Switch off the device whenever you are not using it,  even if not using it only for a short while. 3. The appliance is not intended to be operated by means of an external timer or separate  remote control system. 4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent  or similarly qualified persons in order to avoid a hazard. 5. Before operating this system, check the voltage of this system to see if it is identical to  the voltage of your local power supply.
  • Page 3: Important Safety Instructions

    Important Safety Instruction 6. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table‐cloths, curtains etc. Make sure that there are at least 20 cm of space  above and at least 5 cm of space on each side of the unit. 7. The apparatus must not be exposed to dripping or splashing and that objects filled with  liquids, such as vases, must not be placed on the apparatus. 8. To prevent fire or shock hazard, do not expose this equipment to direct heat, rain,  moisture or dust. 9. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or  swimming pools. Ensure that you place the unit on a dry, stable surface. 10. Do not place this unit close to a strong magnetic field. 11. Do not place the unit on a amplifier or receiver. 12. Do not place this unit in a damp area as the moisture will affect the life of electric  components. 13. Do not attempt to clean the unit with chemical solvents as this might damage the finish.  Wipe with a clean, dry or slightly damp cloth. 14. When removing the power plug from the wall outlet, always pull directly on the plug,  never pull on the cord. 15. Depending on the electromagnetic waves used by a television broadcast, if a TV is  turned on near this unit while it is also on, lines might appear on the LED TV. Neither this  unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV  set. 16. The mains plug is used to disconnect the device, the disconnected device should remain readily operable.  Important Safety Instructions  1. Read these instructions. Keep these instructions. Follow all instructions. Heed all  warnings. 2. Do not use this apparatus near water. 3. Clean only with dry cloth. 4. Do not block any ventilation openings. Install in accordance with the manufacturer's  instructions. 5. Do not install near any heat sources such as radiators, heaters, stoves, or other  apparatus (including amplifiers) that produce heat. 6. Do not defeat the safety purpose of the polarized or grounding‐type plug. A polarized  plug has two blades with one wider than the other. 7. Protect the power cord from being walked on or pinched particularly at plugs,  convenience receptacles or at the point where they exit from the apparatus. 8. Only use attachments/accessories specified by the manufacturer. 9. Unplug this apparatus during lightning storms or when unused for long periods of time.
  • Page 4: Preparation For Use

    Important Safety Instruction 10. Refer all servicing to qualified service personal. Servicing is required when the apparatus  has been damage in any way, for example, when the power‐supply cord or plug is damaged,  liquid has been spilled or objects have fallen into the apparatus, the apparatus has been  exposed to rain or moisture, does not operate normally, or has been dropped. 11. The DC plug is used to disconnect the device, the disconnected device should remain  readily operable. In order to disconnect the apparatus from the DC power completely, the  DC plug must be removed from the AC outlet completely.  Preparation for Use Unpacking and Set Up •Remove the Sound bar from the carton and remove all packing material from the Sound  bar. Save the packing material, if possible, in case the Sound bar ever needs to be serviced  or transported. The original carton and packing material is the only safe way to pack your  Sound bar to protect it from damage in transit. •Remove any descriptive labels or stickers on the front or top of the cabinet. Do not  remove any labels or stickers from the back or bottom of the cabinet. •Place your Sound bar on a level surface such as a table, desk or shelf, convenient to an AC  outlet, out of direct sunlight, and away from sources of excess heat, dirt, dust, moisture,  humidity, or vibration. •Unwind the Line cord connecting the AC adapter and extend it to its full length.  Protect Your Furniture This model is equipped with non‐skid rubber 'feet' to prevent the product from moving  when you operate the controls. These 'feet' are made from non‐migrating rubber material  specially formulated to avoid leaving any marks or stains on your furniture. However  certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may  cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. To  prevent any damage to your furniture we strongly recommend that you purchase small  self‐adhesive felt pads, available at hardware stores and home improvement center  everywhere, and apply these pads to the bottom of the rubber 'feet' before you place the  unit.  Power Source This sound bar is designed to operate on normal DC Power source, it works only under  SMPS 110V‐240V~50hz/60Hz. Do not attempt to operate the Sound bar on any other  power source. You could cause damage to the Sound bar that is not covered by your  warranty.
  • Page 5: Important Notes

    Important Safety Instruction Important Notes • This sound bar was especially developed for LED/LCD/Plasma TV's: It should not be used in combination with CRTTV's (Cathode Ray Tube TV's) in order to avoid image interference. • Safety and operating instruction manual should be retained for future reference. • The apparatus should not be exposed to dripping, splashing or placed in a humid  atmosphere such as a bathroom. • Do not install the product in the following areas: • Places exposed to direct sunlight or close to radiators. • On top of other stereo equipment that radiate too much heat ‐Blocking ventilation or in a  dusty area. • Areas where there is constant vibration. • Humid or moist places. • Do not place near candles or other flames. • Operate the product only as instructed in this manual. • Before turning on the power for the first time, make sure the sound bar is plugged to  power outlet. • For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel. • Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.
  • Page 6: Product Diagram

    Important Safety Instruction Product Diagram 1. MIC1 : Microphone1 volume 2. MIC2: Microphone2 volume 3. REVTIME: Reverberation time 4. REVDEPTH: Reverberation depth 5. VOL: Karaoke soundbar volume. 6. Standby:  standby mode for power ON or OFF; 7. Input: choose input mode(HDMI ARC/OPT/AUX/USB/BT)  8. Bluetooth: short press for connect/disconnect microphone; long press  under BT mode for disconnect device, long press under other connect  mode for enable/unenable BT connection; 9. Pre button: short press for last program; 10. Next button: short press for next program; 1. DC IN           2. AUX IN          3. Optical          4. Subwoofer out: connected with subwoofer by RCA cable           5. USB              6. HDMI(ARC)
  • Page 7 Important Safety Instruction Standby mode for power on/off. INPUT: input mode(AUX/USB/HDMI  ARC/OPT/BT)  MUTE: mute/unmute the  soundbar VOL+: master volumn up Play/Pause (short press under USB  & BT mode for play/pause; long  press under BT mode for  disconnect device, long press under  other connect mode for  enable/unenable BT connection;). Pre button: Previous program (Only  work under USB & BT mode of  smartphone). Next button: Next program. (Only  work under USB & BT mode of  smartphone). VOL‐: master volumn down BASS‐: To decrease the bass. 10. BASS+: to increase the bass. 11. EQ: select EQ mode  (Music/Movie/Dialoge/Normal) Dimmer: total have 3 levels, low,  middle, and high; 13. 3D Sound: select the 3D sound  effect. Soundbar&Accessories Soundbar(1) Subwoofer(1) Remote Control(1) HDMI(ARC) cable(1x4.92ft) Optical cable(1x4.92ft) AUX cable(1x4.92ft) Screw bag(1) User Manual(1)
  • Page 8 Important Safety Instruction Positioning the Sound Bar  Place on a flat Surface  Place the sound bar horizontally on a flat surface such as a TV unit or shelves and align it  centrally with the TV screen. Allow some space between the speaker and the wall. Don’t  place inside a cabinet or a walled shelf. Follow this guidance for best sound output and good  airflow around the sound bar. Mount on the wall WARNING: If you don’t feel confident to correctly and securely wall‐mount the sound bar,  seek the assistance of an experienced person of professional. Insert the two wall‐mount screws into the wall, refer to wall mounting template we  supplied in package for the distance. Install the speaker on a vertical, fast, reinforced area of wall. For plaster walls, it is  recommended to screw into wall studs for greater security. For optimum performance,  allow at least 30mm distance between the sound bar and the TV.  Follow below steps to mount the sound bar on the wall  1. Make 2 holes on the wall with distance same as the wall bracket on the soundbar, refer to  wall mounting template to make it correct easily. 2. Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not  tighten the screws all the way make sure leave some space. 3. Once the screws securely fastened, hang the sound bar over by inserting the screws onto  the wall mount bracket.
  • Page 9: Powering On/Off

    LED Indicators Display screen: BT/OP/HD/US/AU/MV/MS/DL/3D/volumn value display BT: Blue Tooth  OP: Optical mode HD: HDMI ARC  mode mode US: USB mode Ot: Karaoke AU :AUX IN mode E1:Movie EQ E2:Voice EQ E0:Music EQ E3: Normal EQ 3d:3D Sound effect Powering On/Off 1. Plug the sound bar power supply into a wall outlet, and press power button to  turn on device. 2. To turn off, press the power button then unplug from wall outlet. Playing Audio via BT Connection 1. Turn on sound bar and then short‐press the INPUT button to switch to BT mode. 2. Activate the pairing function on your phone or other compatible device and select     “Lark L210K”. 3. When successfully paired, the LED display will stay on “BT”. 4.  Long press Bluetooth button, or  Play/Pause button on remote control to disconnect. 5. The remote control includes BT mode playback controls. Notes: • If your Pairing device switched off or manual disconnected, the sound bar will  automatically enter pairing mode. • Bluetooth wireless range is 10 meters.  • To connect to other devices, repeat the above pairing steps. • Press BT button on device 3 seconds to shutdown in pairing mode, and 3 seconds again to  turn on paring mode.
  • Page 10 Important Safety Instruction Connect to bluetooth speaker This karaoke soundbar can connect to bluetooth speaker for playing audio, this function is  not workable under bluetooth mode, below is the steps: 1. Long press the Bluetooth button (the remote control is the Play / Pause button) to enter  the bluetooth launch function, the machine will automatically connect with the bluetooth  speaker with strongest signal nearby, and play music from karaoke soundbar. 2. Long press the bluetooth button to exit the launch function, disconnect the Bluetooth  speaker.   Notes: • No Bluetooth launch function in Bluetooth mode. • On the launch state, the karaoke soundbar has no sound. • Enter the launch state when not connected to the bluetooth speaker, display "‐‐" and  flashing at the same time. Switch mode after connecting the bluetooth speaker, the display  will first show the switch mode, and then return to the cycle of flashing "‐‐". Connect to microphone 1. Turn on the machine, short press BT button in any mode, start / turn off karaoke  function. 2. Display will show “Ot “ for 5 seconds, and then return to mode, the karaoke function is  still working. 3. Long press power button on microphone to turn, the karaoke soundbar will  automatically pair with microphone, this progress need 3‐5 seconds. 4. After successfully paring, you can start singing. 5. Turn off karaoke function, short press BT button, display will flashing “Ot “ for 5  seconds, and then return to mode, the karaoke function has been turned off.
  • Page 11: Aux Mode

    Important Safety Instruction AUX mode 1. Connect the sound bar to your PC, tablet, smart phone, TV or other device using 3.5mm  audio cable, short‐press the INPUT button to switch to AUX input mode.  2. In this mode, playback can only be controlled on your connected device. Playing Audio via USB Port The sound bar automatically switches to USB input mode with the LED display(US )when  a USB flash drive is inserted (this mode isn't selectable on the sound bar or remote  control unless a USB flash drive is connected). 1. Ensure that your USB flash drive contains MP3 or WMA audio files (other file types not  supported). 2. Connect the USB flash drive to the USB port on the sound bar (or your own USB  extension cable connected to the USB port); music will automatically play. 3. The remote control includes USB input mode playback controls. Optical Mode You can connect digital amplifiers or TV with an optical digital output to the sound  bar via optical cabel. The output device must have an optical digital output. Use the optical cable  supplied to make the connection. Proceed as follows: • Connect the optical cable to the optical digital output of your  output device. • Then connect the optical cable to the optical digital input of your soundbar. • Press the INPUT button on the remote control to select OPTICAL mode. • Start playing on the output device. • You can use the volume buttons to adjust the volume to your requirements. • If you wish, you can change the audio settings using the relevant buttons on the  remote control. • If no sound output, you can switch the output device to PCM mode. HDMI Mode 1. The Soundbar supports HDMI with Audio Return Channel(ARC). lf your TV is  HDMI(ARC) compliant, you can hear the TV audio through your Soundbar by using  a single HDMI cable. 2. Using a High Speed HDMI cable, connect the HDMI(ARC) connector on the  soundbar to the HDMI (ARC) connector on the TV. The HDMI(ARC) connector on  the TV might be labelled differently. For details, see the TV user manual.
  • Page 12: Specifications

    Important Safety Instruction Specifications  Model L210K Technology BT/AUX/HDMI(ARC)/OPTICAL/USB/Karaoke Audio Output Power 70W R.M.S. Frequency Response 20Hz‐20KHz Power Input 110V‐240V~50Hz/60Hz Bluetooth Version Version: 5.0 Range:up to 10m Bluetooth Frequency 2402MHz ‐ 2480MHz Dimensions Soundbar:35.4*2.36*3.54 inch Subwoofer: 10.24*8.66*15 inch Truble Shooting  Issues Problems Solutions Connect the audio cable from your soundbar to your TV or other devices. However, you do not need a separate  audio connection when the Soundbar and TV are connected through HDMI ARC connection No sound from SoundBar speakers On the remote control, select the correct audio input. Sound Distorted sound or echo lf you play audio from the TV through the soundbar, make sure that the TV is muted. Restart the soundbar and try pairing again You have not enabled the bluetooth function of the device. See the user manual of the device on how to enable  the function. A device cannot connect with the SoundBar The device is not correctly connected. Bluetooth The soundbar is already connected with another bluetooth device. Disconnect the connected device, then try again.
  • Page 13 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
