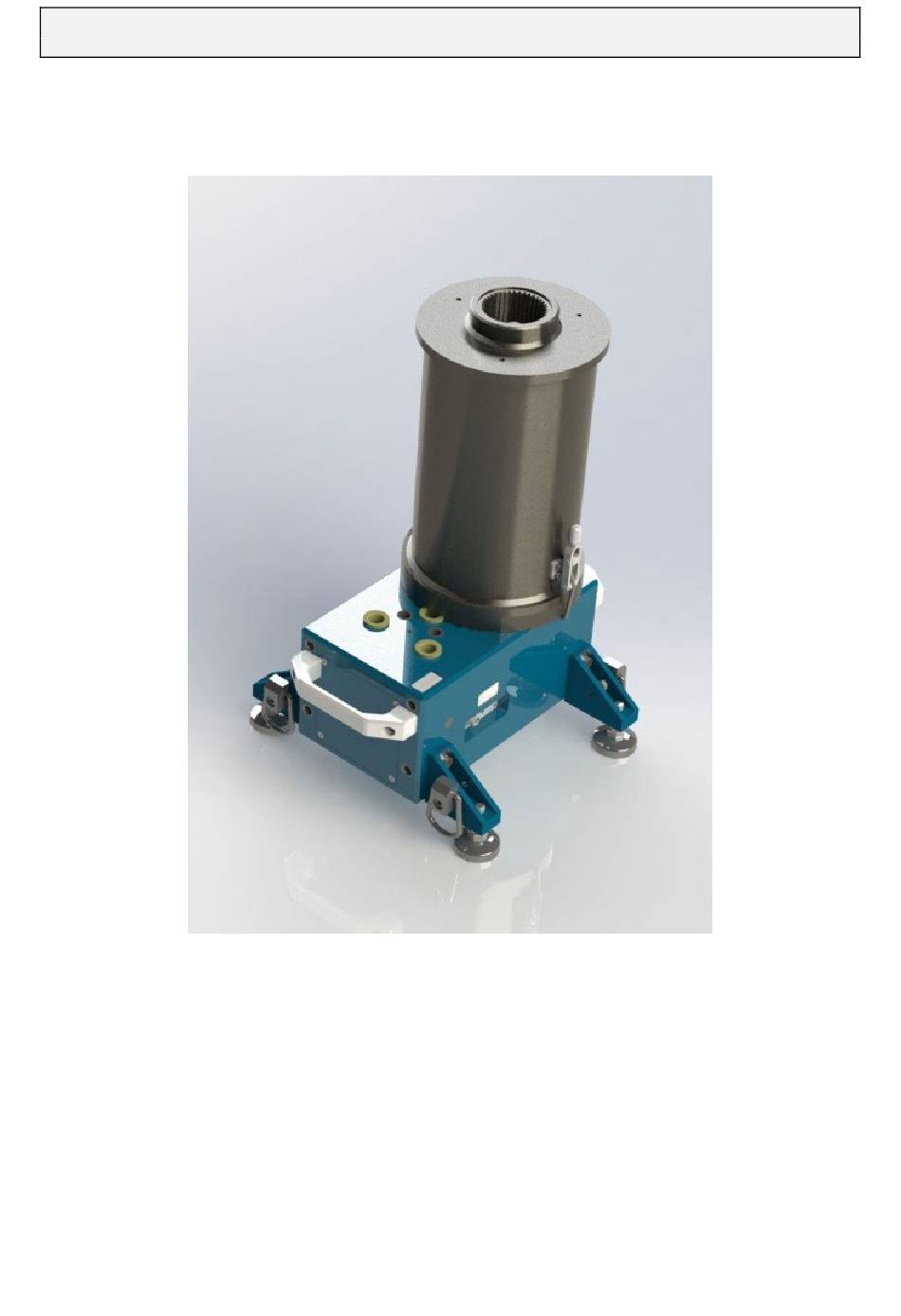

- Page 1 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 1 Of 17 Manual Testing device for Hydraulic tools Type VS-PH10-10000 Optional as passive or active transducer Subject to technical changes BA094_VS-PH10_EN_Rev01...
-
Page 2: Table Of Contents
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 2 Of 17 Content: Page: 1. Important notes 2. Description 3. Features 4. Instructions for use 5. Conditions at the site 5.1 Ambient temperature 5.2 Humidity and dust 5.3 Chemical influences 6. -
Page 3: Description
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 3 Of 17 1. Important notes: In the event of recognizable damage, the simulator may no longer be used. Use only original spare parts. Torque peaks beyond the permissible measuring range can lead to the destruction of the thread. Contamination of the nut and the M64 screw should be avoided. -
Page 4: Instructions For Use
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 4 Of 17 4. Application notes The torque transducers measure in both right and left loads. For right load, the output signal is positive, with left load negative. The type plate provides information about the measuring range end value. The screwing simulator can only be used for clockwise running. -
Page 5: Structure Of The Measuring Chain
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 5 Of 17 6. Structure of the measuring chain In order to be able to measure with the transducer, the construction of a complete measuring chain is required. This consists of: ... -
Page 6: Measuring Signals
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 6 Of 17 8. Measurement signals The transducer provides a torque-proportional voltage signal. The respective measurement signal size can be found in the type plate or data sheet. For right load, the output voltage is positive, with left load negative. 9. - Page 7 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 7 Of 17 The front page at a glance Memory number Field for Transducer end error messages Data value record Parameter set Button number without Torque function P: 1 ST: 5 DR: 1 10 Nm...
- Page 8 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 8 Of 17 The back at a glance Connection of the torque transducer For different types of torque transducers there are the appropriate connection cables! This GMV2 version is intended for the use of active transducers with ± 5V. A passive input is optionally available. Please use only the designated cables that you can obtain from ETH.
- Page 9 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 9 Of 17 Battery operation The device is optionally equipped with a battery. Since the torque sensor is also supplied, it is possible to carry out measurements independently of the power grid. The built-in lead-gel battery is maintenance-free, overcharge protected and is automatically recharged in (indefinite) mains operation.
-
Page 10: Maintenance For Rotating Screwdriving Tools
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 10 Of 17 10. Maintenance for rotating screw tools (Drawing-No.: F. 551.00.005; F. 262.00.005) In the event of stiffness or a noticeable lack of grease, the thread of the Screw M64 [pos. - Page 11 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 11 Of 17 Image 3 • Set up the adapter 4kt [pos. 05]. Image 4 • Put the screwing simulator [pos. 04] on completely. • Tools: Eye bolt [pos. 28] with spacer bolt [item 22].
- Page 12 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 12 Of 17 • Put on cover [pos. 02] • Align the hook clamps [pos. 03] to the long side of the case so that they reach into the hook pocket on the bottom of the base plate.
- Page 13 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 13 Of 17 • Put on the screwdriver, let it run clockwise until the teeth and square drive match and the machine fully engages the teeth. Image 8 Subject to technical changes BA094_VS-PH10_EN_Rev01...
-
Page 14: Conversion For Hydraulic Screw Tools
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 14 Of 17 13. Conversion for hydraulic screw tools (Drawing-No.: F.551.00.005 & F.551.00.006) Remove the machine support ring [pos. 01] (page 12, image 7). • • Open the hook clamps [pos. 03] and remove the cover [pos. 02] (page 11 image 6). Remove the screwing simulator [pos. -
Page 15: Technical Data
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 16 Of 17 15. Warnings The screw M64 [pos. 16] has no stop in the dissolving mode (left-hand rotation), i.e. the machine support ring [pos. 01] is pressed upwards. Remedy: Stop the machine before or turn it by hand until the gear is flat before the new measurement process. -
Page 16: Drawing Hydraulic Tools (F.551.00. 006)
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 17 Of 17 Subject to technical changes BA094_VS-PH10_EN_Rev01... -
Page 17: N°: 094 Date: 12.05.2022
ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 19 Of 17 Subject to technical changes BA094_VS-PH10_EN_Rev01... - Page 18 ETH- messtechnik gmbh D-74417 Gschwend Hagstr.10 N°: 094 Date: 12.05.2022 Page 20 Of 17 Subject to technical changes BA094_VS-PH10_EN_Rev01...
