Quoizel VVSP9348BN Assembly Instruction

6 CORPORATE PARKWAY
, .
GOOSE CREEK SC 29445
. .
www quoizel com
Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver.
Integrated 7W LED
Estimated Assembly Time:

Preparation:

Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.

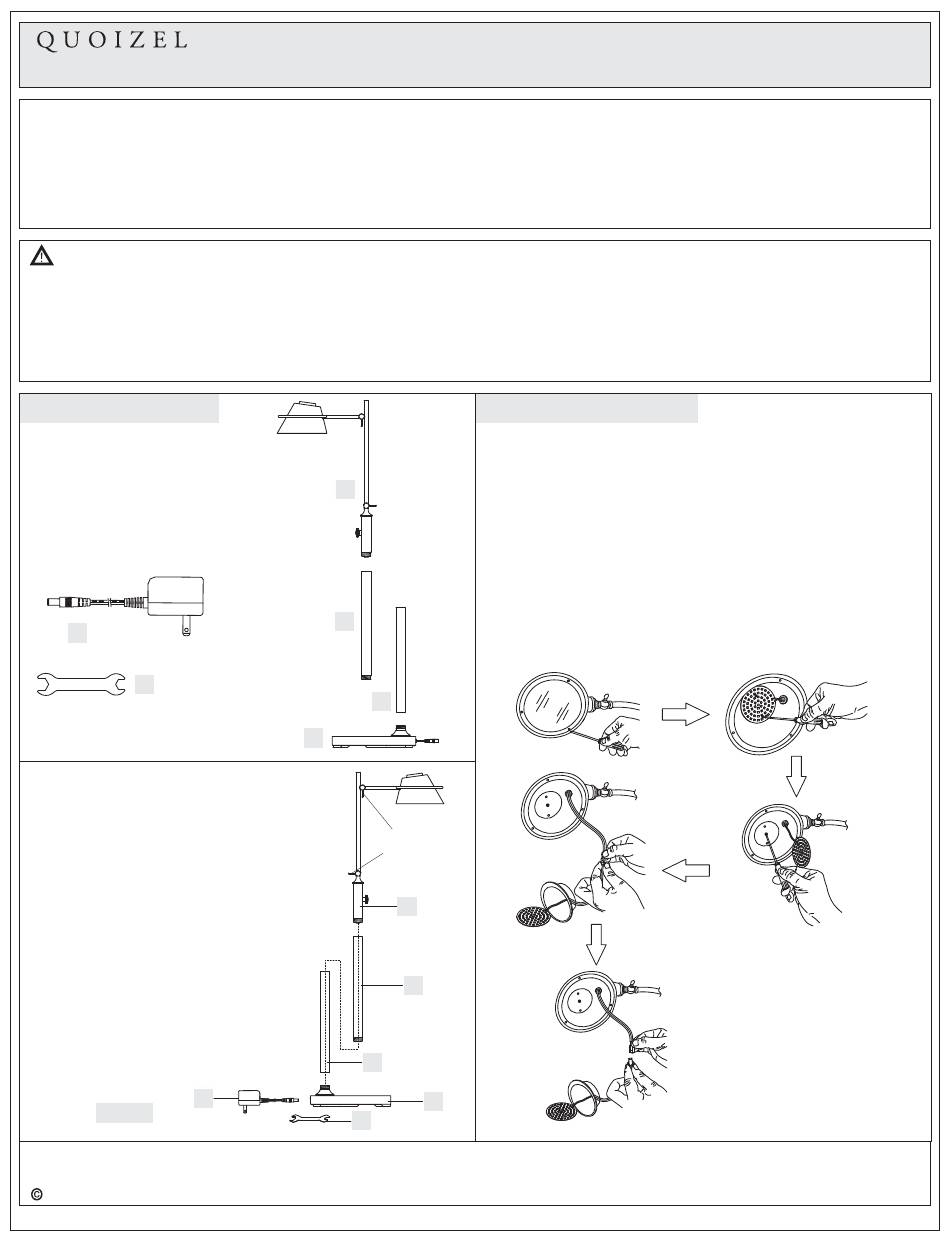

Package Contents

Plug
A
x 1
Wrench
B
x 1
-
STEP 1 Install Rods and Socket
Assembly
A. Thread the Socket Assembly (C) and the
Rods (D/E) to the Base (F) together as
shown. Hand tighten until snug. Note: If the
shade and the base are not lined up after
assembly, unscrew the hex nut on the
bottom of the base with the wrench (B),
adjust the rods until the shade and the base
are lined up. And then secure the rods to
the base. Hand tighten until snug with the
Wrench (B).
B. Adjust the Support Arm and the Shade
to proper location by adjust the
Ajustment Buttons.
C. Insert the Plug (A) into the cord from
the Base (F) as shown.
Your fixture is now assembled and
ready to use. Enjoy!
A
Figure 1
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2015 QuoizelInc.
Assembly Instruction Sheet #IS-VVSP9348
For Styles VVSP9348BN,
for product cleaning tips. Go to the
15-20 minutes
Socket
Assembly C
x 1
Threaded
Rod D
x 1
Rod
E
x 1
Base
F
x 1
Adjustment
E
B
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
Care + Maintenance selection.

Replace LED Lamp

If the LED module would fail to work it is replaceable. Please order
the replacement module from Quoizel's' Customer Service and
follow these instructions to remove and replace the LED module.
A. Unscrew the lock screws from the shade and remove the diffuser
from the shade.
B. Unscrew the screws on the LED Lamps and remove the LED lamp.
C. Unscrew the screw on the center of
reflector. Squeeze the two wings together, hold onto the bottom half
of quick connector, pull the top half of quick connector from the
bottom half.
D. To reconnect, support the bottom half while inserting the top
half aligned correctly and pushing in until the wings grab hold
and the top half cannot be pulled back out.
E. Place the diffuser back onto the shade and secure with the removed
screws. Hand tighten until snug.
Button
C
D
F
1of2
VVSP9348 WT
reflector and remove the
December2015
Rev.A
