- Page 1 All manuals and user guides at all-guides.com SMC 7.1 Surround Monitor Controller SMC 7.1 Surround Monitor Controller 7.1 Inputs Stereo Inputs Solo In Place To C Mono L/R Mute Standard 7.1 Speakers User Manual This User Manual is optimized for Acrobat Reader.
- Page 2 The eight-ganged potentiometer controls the volume of all channels in the analog domain – no control circuits like VCAs or digital attenuators are used. The SMC 7.1 is built in high-quality analog technique, which ensures a linear frequency response up to 150 kHz as well as an outstanding dynamic range.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Content Specifications Inputs Outputs Getting started Internal operating voltages Front view Power supply Rear view Dimensions (incl. feet) Operation Weight Important Notes Routing Declaration of CE Conformity Stereo Inputs 7.1 Speaker Outputs Memory Function Solo Solo In Place Solo To Center... -
Page 4: Getting Started
All manuals and user guides at all-guides.com Getting started Getting started Read thoroughly and follow the instructions as well as the security advices of the Quickstart which is enclosed in the scope of delivery! You can also download the Quickstart here. By pressing the -Button you get to the table of contents. -
Page 5: Front View

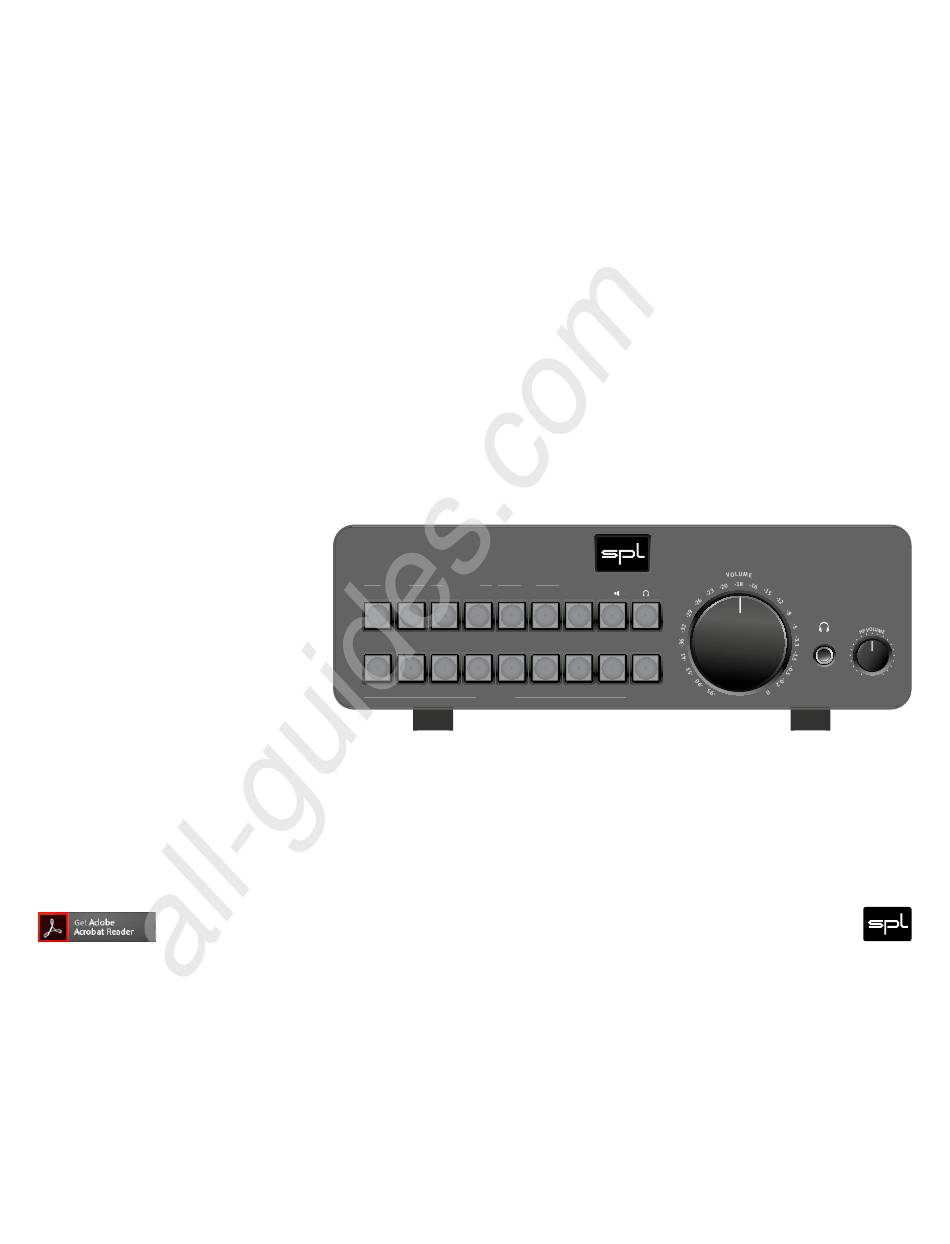

All manuals and user guides at all-guides.com Front view Front view SMC 7.1 Surround Monitor Controller 7.1 Inputs Stereo Inputs Solo In Place To C Mono L/R Mute Standard 7.1 Speakers... -
Page 6: Rear View
GCHGCHGCHGCHGCH GCH GCH GCH C=Cold (–) 1 = GND, 2 = Hot (+), 3 = Cold (-) 1 = GND, 2 = Hot (+), 3 = n.c. TASCAM Standard SMC 7.1 G=GND Made in Germany Mains Switch Balanced 7.1 Input 2 Balanced 7.1 Input 1... -
Page 7: Operation
All manuals and user guides at all-guides.com Operation Operation • To select an input, an output or a desired function, press the corresponding button. • According to the function of a button, it lights blue, red or orange if it is active. •... -
Page 8: Routing
All manuals and user guides at all-guides.com Routing Surround Monitor Controller Routing 7.1 Inputs Stereo Inputs The SMC 7.1 is equipped with extensive routing possibilities. Choose one In Place of the four inputs for monitoring by pressing the corresponding button: • 7.1 Input 1 •... -
Page 9: Stereo Inputs
All manuals and user guides at all-guides.com Routing Stereo Inputs 7.1 Inputs Stereo Inputs Solo If one of the Stereo Inputs is selected, the stereo signal is In Place To C Mono L/R routed to the 7.1 Speaker Outputs L and R. Mute 7.1 Speakers E.g.: Stereo Input 1 is routed to the 7.1 Speaker Outputs L and R. -
Page 10: 7.1 Speaker Outputs
All manuals and user guides at all-guides.com Routing 7.1 Speaker Outputs 7.1 Inputs Stereo Inputs Solo Individual 7.1 Speakers can be deactivated. In Place To C Mono L/R • Press the button of the 7.1 Speaker you don’t want to monitor. The button is no longer lit. Mute •... -
Page 11: Memory Function
All manuals and user guides at all-guides.com Memory Function Memory Function The SMC 7.1 stores the last routing per input. E.g.: 7.1 Inputs Stereo Inputs Solo In Place To C Mono L/R • Choose a routing from the 7.1 Input 1 to the 7.1 Speaker Output and deactivate the center. -
Page 12: Solo
All manuals and user guides at all-guides.com Solo Solo To monitor individual channels of your 7.1 speaker system you can use one of two Solo modes, “Solo In Place” and “Solo To Center”: Solo In Place 7.1 Inputs Stereo Inputs Solo In Place To C Mono L/R •... -
Page 13: Solo To Center
All manuals and user guides at all-guides.com Solo Solo To Center 7.1 Inputs Stereo Inputs Solo • Press the button Solo To C. The button flashes red In Place To C Mono L/R awaiting a further selection (audio is muted). All 7.1 Speaker buttons except the Center are Mute deactivated. -
Page 14: Alternate Speaker Output
Alternate Speaker Output SMC 7.1 7.1 Inputs Stereo Inputs Solo The SMC 7.1 provides an Alternate Speaker Output as well as a Sub Out. Both can drive power In Place To C Mono L/R amplifiers or an active 2.1 loudspeaker systems. -
Page 15: Headphone
Mono L/R Headphone SMC 7.1 The SMC 7.1 is equipped with a headphone amplifier with a dedicated volume control. The L/R signal of the 7.1 or Stereo Input as well as an individual 7.1 channel can be Mute SMC 7.1 monitored on headphones. -
Page 16: Mono L/R
All manuals and user guides at all-guides.com Mono L/R Surround Monitor Controller Mono L/R 7.1 Inputs Stereo Inputs Solo The Mono L/R function allows to monitor the L and R channels of the 7.1 or the Stereo Inputs in In Place To C Mono L/R mono. -
Page 17: Mute Function
All manuals and user guides at all-guides.com Surround Monitor Controller 7.1 Inputs Stereo Inputs Solo In Place To C Mono L/R Mute Function Mute Function Mute If you activate the Mute function, all (7.1 and Alternate) speakers are muted at once. •... -
Page 18: Volume
All manuals and user guides at all-guides.com Volume Volume Surround Monitor Controller The eight-ganged potentiometer is exclusively manufactured for the SMC 7.1. It 7.1 Inputs Stereo Inputs Solo In Place To C Mono L/R controls the volume of all channels in the analog domain – no control circuits like VCAs or digital attenuators are used. -
Page 19: Specifications
All manuals and user guides at all-guides.com Specifications Specifications Inputs DB25 inputs • DB25 (TASCAM-Standard) • Impedance: 20 kohms • CMR: -82 dB • Max. Input level: +22 dB XLR inputs • Neutrik XLR, balanced, Pin 2 = (+) • Impedance: 20 kohms •... -
Page 20: Outputs
All manuals and user guides at all-guides.com Specifications Outputs DB25 ouput • DB25 (TASCAM-Standard) • Frequency range: 10 Hz to 150 kHz (-3 dB) • Crosstalk at 1 kHz: -92 dB • THD & N: 0.001 % (at 0 dBu, 1 kHz, 100 kohms load) •... - Page 21 All manuals and user guides at all-guides.com Specifications Headphone output Warning: Never connect a mono jack cable to the headphone output (front panel stereo jack). Make sure that the stereo jack is fully inserted, otherwise a short circuit might damage the headphone amplifier! •...
-
Page 22: Internal Operating Voltages
All manuals and user guides at all-guides.com Specifications Internal operating voltages • Analog: +/- 18 V Power supply • Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz • Fuses: 230 V: T 500 mA; 115 V: T 1 A •... -
Page 23: Important Notes
All manuals and user guides at all-guides.com Important Notes Important Notes Version 1.0 – 03 /2017 Developer: Wolfgang Neumann / Thomas Irmen This manual includes a description of the product but no guarantee as for specific characteristics or successful results. Unless stated otherwise, everything herein corresponds to the technical status at the time of delivery of the product by SPL electronics GmbH.
