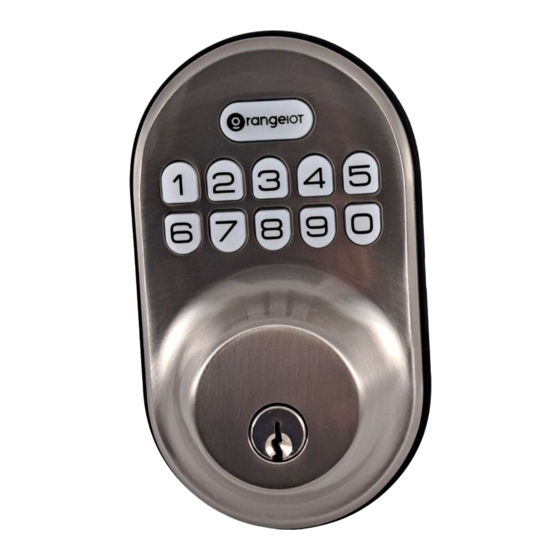

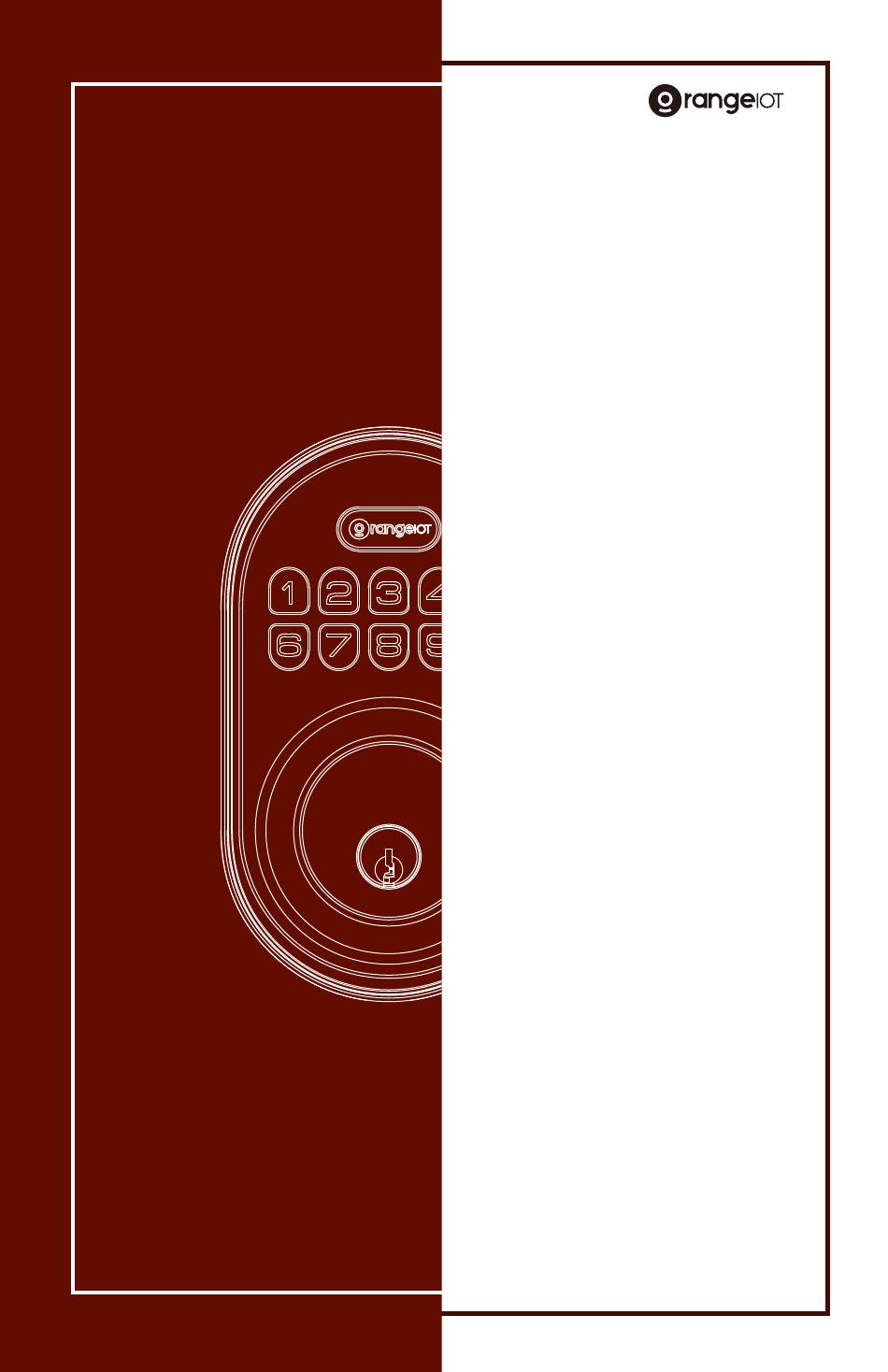

- Page 1 PLEASE KEEP THIS GUIDE PLEASE KEEP THIS GUIDE This guide contains important information about your lock. This guide contains important information about your lock. Installation & Programming Guide RZ-A...
-
Page 2: Parts List
Installation Guide Parts List Interior Assembly Latch Drive-In Collar Strike Exterior Assembly (Optional) Mounting Plate Battery Cover Exterior Assembly Mounting Plate Screws Battery Cover Latch and Mounting Plate Interior Latch Assembly Strike Screws I X 2 Interior Assembly Screws H X 2 Backup Key Mounting Plate Interior Assembly... -
Page 3: Install Exterior Assembly
Install exterior assembly IMPORTANT: Route the cable below the latch and Before installation, make sure the latch is fully retracted (in the unlocked position) . insert the cylinder tailpiece horizontally through the slot in the latch. unlocked Horizontal Send the cable through the bottom horizontal slot in the mounting plate. Secure the mounting plate with the supplied screws. -
Page 4: How To Use
How To Use LOCK the door UNLOCK the door One-touch Locking Master/ User Press and hold any key for 2 seconds. code Auto Lock Enable auto lock so the bolt will extend out automatically in 30 seconds after unlocking. Rotate the thumb turn to ! This feature is off by default. -
Page 5: Parts Illustrations
Parts Illustrations Item Specifications Remarks Battery Last up to one year AA alkaline battery x4 (Use new, non-rechargeable (Operation voltage: 4.6~6.0V) (10 times open/close per day) Alkaline batteries only.) Exterior Assembly Interior Assembly Multi-Function Button(MFB) Battery Cover Keypad Reset Button Cylinder Thumb Turn The default Master Code is 12345678. -
Page 6: Quick Setup
Quick Set Up IMPORTANT: The default Master Code is 12345678. It is recommended that you change it to a code of your own New Master Code New Master Code Press Change Master Code Master Code Wait for Wait for Wait for Succeed Long Green Lights Green Light Flash... -
Page 7: Restore To Factory Default Settings
Factory Default Settings Settings Factory Defaut Master Code 12345678 Auto Lock Disabled Silent Mode Disabled Wrong Code Entry Limit 10 times Shutdown Time 3 mins Vacation Mode Disabled Restore To Factory Default Settings This procedure will delete all User Codes associated with the lock. 1.
