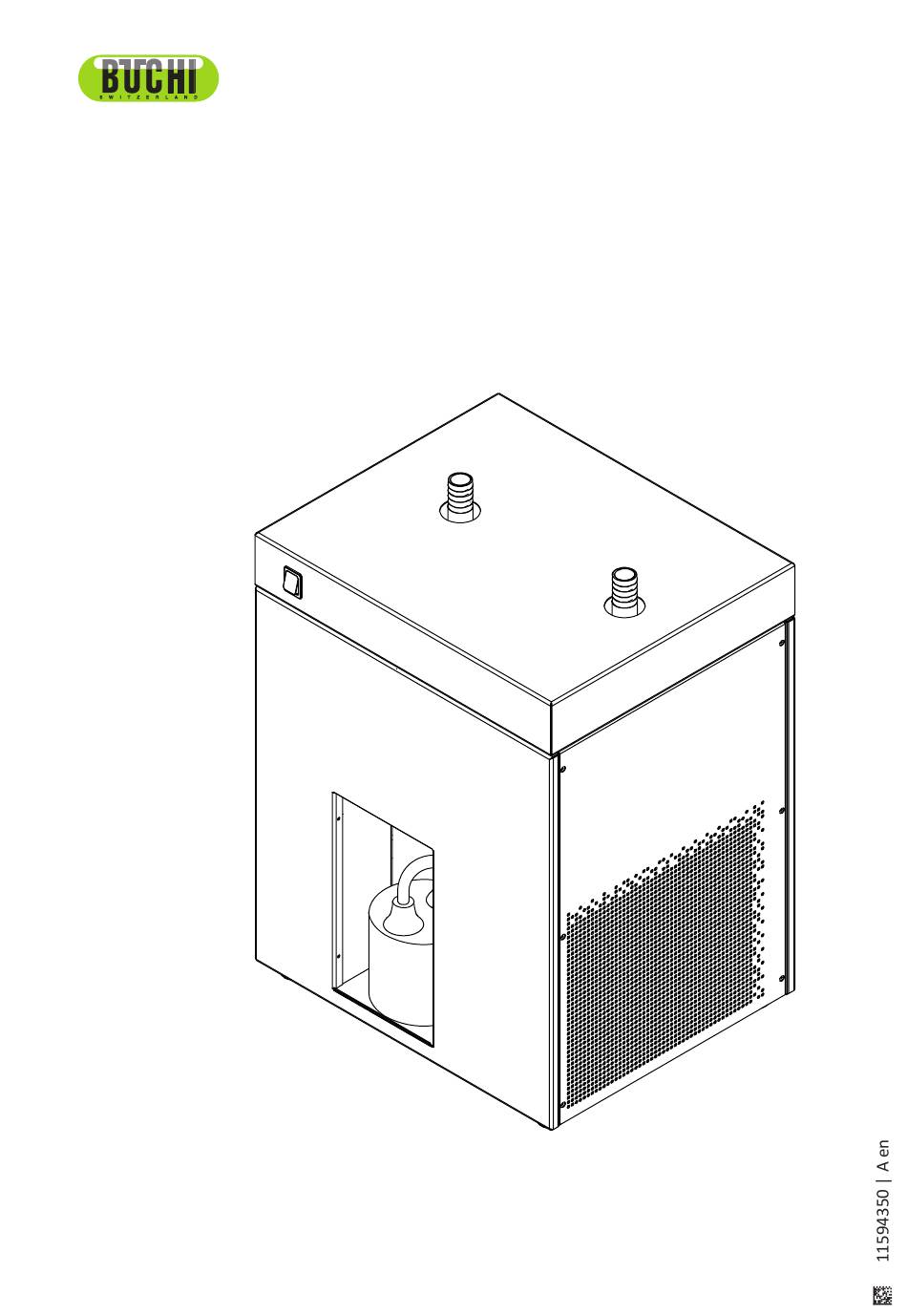

- Page 1 Dehumidifier S-396 Nano Operation Manual...
- Page 2 CH-9230 Flawil 1 E-Mail: quality@buchi.com BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experience, especially with respect to structure, illustrations and technical details. This manual is copyrighted. Information from it may neither be reproduced, distributed, or used for competitive purposes, nor made available to third parties.
-
Page 3: Table Of Contents
Front view ......................... 9 3.2.2 Rear view........................ 10 Scope of delivery ......................... 10 Type plate.......................... 10 Technical data ........................ 11 3.5.1 Dehumidifier S-396 Nano .................. 11 3.5.2 Ambient conditions .................... 12 3.5.3 Materials ......................... 12 3.5.4 Installation site...................... 13 Transport and storage ...................... 14 Transport .......................... 14... - Page 4 Cleaning the ventilation slots.................... 19 Cleaning the instrument....................... 19 Help with faults ........................ 20 Troubleshooting........................ 20 Taking out of service and disposal.................. 21 Taking out of service ...................... 21 Disposal.......................... 21 Refrigerant........................... 21 Returning the instrument ..................... 21 Appendix .......................... 22 10.1 Spare parts and Accessories.................... 22 Operation Manual Dehumidifier S-396 Nano...
-
Page 5: About This Document
Connected devices In addition to these operating instructions, follow the instructions and specifications in the documentation for the connected devices. Operation Manual Dehumidifier S-396 Nano 5/24... -
Page 6: Safety
The instrument is designed and built for laboratories. The instrument can be used for the following tasks: — Condense water from the drying gas from BUCHI spray dryer. Use other than that intended The use of the instrument other than described in proper use and specified in technical data is use other than that intended. -
Page 7: Personal Protective Equipment
— Safety-related incidents that occur while using the instrument should be reported to the manufacturer (quality@buchi.com). BUCHI service technicians Service technicians authorized by BUCHI have attended special training courses and are authorized by BÜCHI Labortechnik AG to carry out special servicing and repair measures. -
Page 8: Residual Risks
Unauthorized modifications can effect safety and lead to accidents. Use only genuine BUCHI accessories, spare parts and consumables. Carry out technical changes only with prior written approval from BUCHI. Only allow changes to be made by BUCHI service technicians. BUCHI accepts no liability for damage, faults and malfunctions resulting from unauthorized modifications. -
Page 9: Product Description
The humidity condensates while passing the refrigerator and is being collected in a closed condensate bottle. Configuration 3.2.1 Front view Fig. 1: Front view On / Off master switch Inlet Outlet Ventilation slots Condensate vessel area Operation Manual Dehumidifier S-396 Nano 9/24... -
Page 10: Rear View
Accessories are delivered as per the purchase order, order confirmation, and delivery note. Type plate The type plate identifies the instrument. The type plate is located at the rear of the instrument. See Chapter 3.2.2 "Rear view", page 10 10/24 Operation Manual Dehumidifier S-396 Nano... -
Page 11: Technical Data
210 VAC ± 220 VAC ± 230 VAC ± 240 VAC ± 10 % 10 % 10 % 10 % 10 % Primary fuse 10 A 10 A 10 A 10 A 10 A Operation Manual Dehumidifier S-396 Nano 11/24... -
Page 12: Ambient Conditions
5‒40 °C Maximum relative humidity 80 % for temperatures up to 31 °C decreasing linearly to 50 % relative hu- midity at 40 °C 3.5.3 Materials Component Materials of construction Housing St 1.4301 powder coated 12/24 Operation Manual Dehumidifier S-396 Nano... -
Page 13: Installation Site
— There is no loose paper or the like at the installation site that could drawn in the ventilation. — The installation site has an own mains outlet socket for the instrument. — The electric installation meets the requirements. See Chapter 5 "Installation", page 15 and Chapter 3.5 "Technical data", page 11 Operation Manual Dehumidifier S-396 Nano 13/24... -
Page 14: Transport And Storage
The possible consequences are crushing injuries, cuts and breakages. The instrument should be transported by two persons at the same time. Lift the instrument at the points indicated. Lift the instrument at the points indicated. 14/24 Operation Manual Dehumidifier S-396 Nano... -
Page 15: Installation
Risk of instrument damage because of not suitable power supply cables. Not suitable power supply cables can cause bad performance or an instrument damage Use only BUCHI power supply cables. Precondition: R The electrical installation is as specified on the type plate. -
Page 16: Installing The Condensate Vessel
Büchi Labortechnik AG 5 | Installation Installing the condensate vessel Put the condensate vessel in the condensate vessel area. Attach the cap nuts to the bottle. 16/24 Operation Manual Dehumidifier S-396 Nano... -
Page 17: Operation
Shutting down the instrument Set the On / Off master switch to Off. Wait until the instrument is the same as the ambient temperature. Empty the condensate vessel. See Chapter 7.2 "Empty the condensate vessel", page 18 Operation Manual Dehumidifier S-396 Nano 17/24... -
Page 18: Cleaning And Servicing
Do not carry out any servicing and cleaning operations that involve opening the housing. Use only genuine BUCHI spare parts in order to ensure correct operation and preserve the warranty. Carry out the service and cleaning operations described in this section to extant the lifetime of the instrument. -
Page 19: Cleaning And Servicing The Warning And Directive Symbols
NOTICE! Check the filling level of the bucket dur- ing the draining process. If necessary empty it. Drain the cleaning liquid through the condensate drain tubes. Repeat the cleaning procedure until the washing solution is free from particles or chemicals Operation Manual Dehumidifier S-396 Nano 19/24... -
Page 20: Help With Faults
The compressor Compressor is broken. Contact BUCHI Customer does not start up. Service. Wrong connection voltage. The outlet hose Compressor is broken. Contact BUCHI Customer does not get cold Service. Wrong connection voltage. 20/24 Operation Manual Dehumidifier S-396 Nano... -
Page 21: Taking Out Of Service And Disposal
The instrument uses refrigerant. See Chapter 3.5 "Technical data", page 11 Dispose of the appliance properly, if necessary using a professional disposal service. Returning the instrument Before returning the instrument, contact the BÜCHI Labortechnik AG Service Department. https://www.buchi.com/contact Operation Manual Dehumidifier S-396 Nano 21/24... -
Page 22: Appendix
Büchi Labortechnik AG 10 | Appendix Appendix 10.1 Spare parts and Accessories Order no. Image Screw cap SVL 22 003577 Woulf Bottle 041875 Order no. Seal PTFE 005155 PTFE hose connection SVL 22 027338 22/24 Operation Manual Dehumidifier S-396 Nano... - Page 24 We are represented by more than 100 distribution partners worldwide. Find your local representative at: www.buchi.com...
