triOS TTrig 12C100000 Quick Start Manual

TTrig
TTrig
12C100000

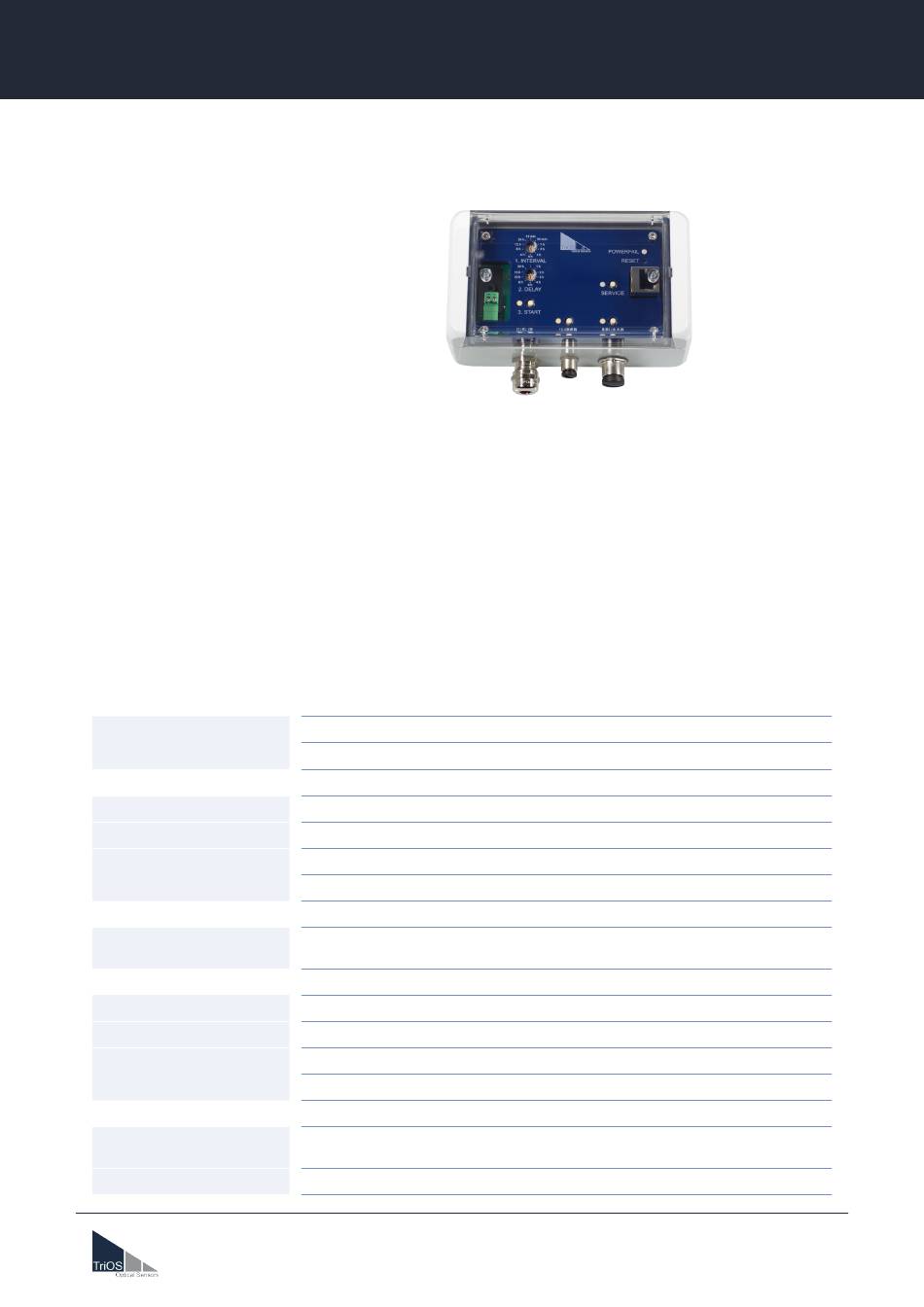

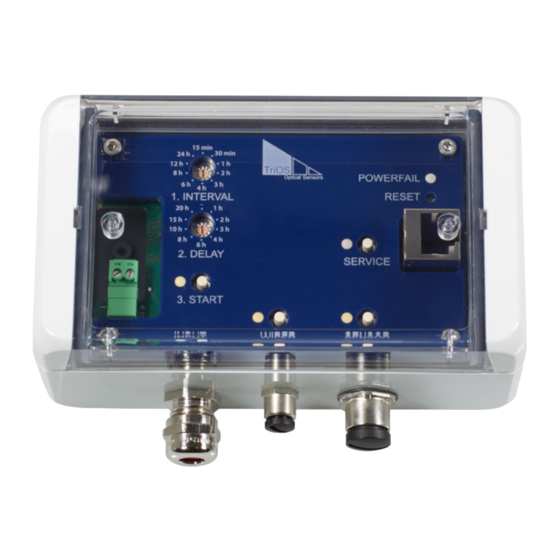

TTrig is a measurement interval switch for the TriOS G2 sensors OPUS and NICO. Due to its low standby power
(<1 mW), it is ideally suited for operation with a battery as power supply. It is designed to minimize energy consumption between
measurements.
The TTrig features an additional connection for commissioning and controlling a wiper (W55).
Remote or self-sufficient measuring stations can thus be operated maintenance-free for several months.
An RJ-45 Ethernet interface provides access to the sensor's G2 web interface for downloading the measurement data from the
data logger with a notebook.

Technical Specifications

POWER SUPPLY
Voltage supply
Power in standby
SENSOR INTERFACES
Connection
Standard
Protocol
Analog interfaces
OTHER INTERFACES
Connection
ENVIRONMENT
Operating temperature
Storage temperature
Relative air humidity
Protection type
MECHANICAL SYSTEM
Dimensions (width x height x
depth)
Weight
D04-05Aen201908 Quick Guide TTrig
TriOS Mess- und Datentechnik GmbH · Bürgermeister-Brötje-Str. 25 · D-26180 Rastede · Germany
Phone: +49 (0) 4402 69670 - 0 · Fax: +49 (0) 4402 69670 - 20 · info@trios.de · www.trios.de
12...24 VDC, max. 4A
<1mW
M12 for TriOS G2 sensors; 1x RJ-45
RS-485
Modbus RTU
No
1x M8 connector for wiper W55
Trigger output
0...+40 °C
-10...+70 °C
0...95 % (non-condensing)
IP64
140 x 80 x 60 mm
0.5 kg
1
