Sibata BU-24L Operation Manual

Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

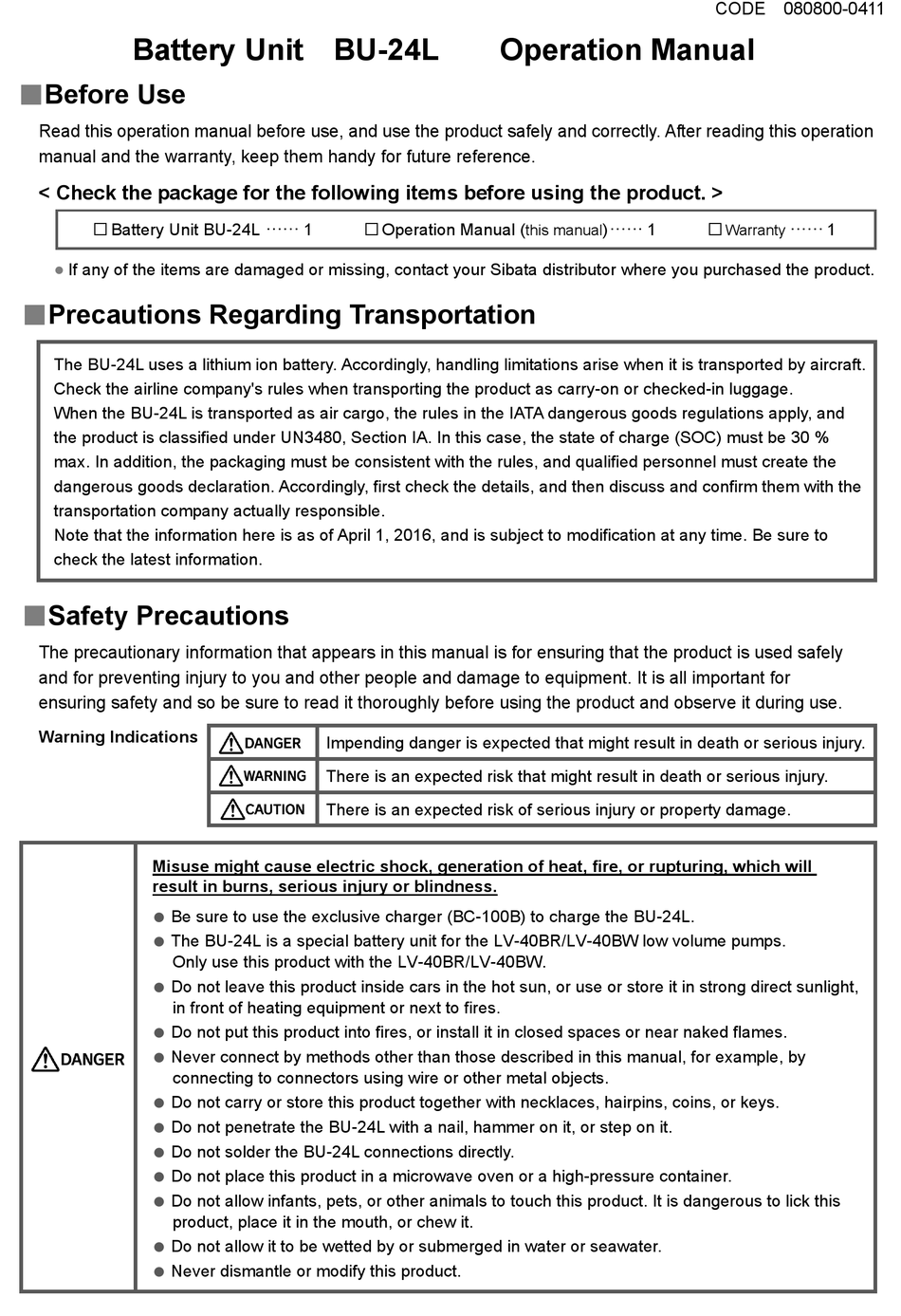

Battery Unit BU-24L

■Before Use

Read this operation manual before use, and use the product safely and correctly. After reading this operation
manual and the warranty, keep them handy for future reference.
< Check the package for the following items before using the product. >
□
Battery Unit BU-24L ······ 1
●
If any of the items are damaged or missing, contact your Sibata distributor where you purchased the product.

■Precautions Regarding Transportation

The BU-24L uses a lithium ion battery. Accordingly, handling limitations arise when it is transported by aircraft.
Check the airline company's rules when transporting the product as carry-on or checked-in luggage.
When the BU-24L is transported as air cargo, the rules in the IATA dangerous goods regulations apply, and
the product is classified under UN3480, Section IA. In this case, the state of charge (SOC) must be 30 %
max. In addition, the packaging must be consistent with the rules, and qualified personnel must create the
dangerous goods declaration. Accordingly, first check the details, and then discuss and confirm them with the
transportation company actually responsible.
Note that the information here is as of April 1, 2016, and is subject to modification at any time. Be sure to
check the latest information.

■Safety Precautions

The precautionary information that appears in this manual is for ensuring that the product is used safely
and for preventing injury to you and other people and damage to equipment. It is all important for
ensuring safety and so be sure to read it thoroughly before using the product and observe it during use.
Warning Indications
Misuse might cause electric shock, generation of heat, fire, or rupturing, which will
result in burns, serious injury or blindness.
Be sure to use the exclusive charger (BC-100B) to charge the BU-24L.
The BU-24L is a special battery unit for the LV-40BR/LV-40BW low volume pumps.
Only use this product with the LV-40BR/LV-40BW.
Do not leave this product inside cars in the hot sun, or use or store it in strong direct sunlight,
in front of heating equipment or next to fires.
Do not put this product into fires, or install it in closed spaces or near naked flames.
Never connect by methods other than those described in this manual, for example, by

connecting to connectors using wire or other metal objects.
Do not carry or store this product together with necklaces, hairpins, coins, or keys.
Do not penetrate the BU-24L with a nail, hammer on it, or step on it.
Do not solder the BU-24L connections directly.
Do not place this product in a microwave oven or a high-pressure container.
Do not allow infants, pets, or other animals to touch this product. It is dangerous to lick this
product, place it in the mouth, or chew it.
Do not allow it to be wetted by or submerged in water or seawater.
Never dismantle or modify this product.
□
Operation Manual (
Impending danger is expected that might result in death or serious injury.
There is an expected risk that might result in death or serious injury.
There is an expected risk of serious injury or property damage.
Operation Manual
) ······ 1
this manual
CODE 080800-0411
□
······ 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BU-24L and is the answer not in the manual?

Questions and answers

Related Manuals for Sibata BU-24L

Summary of Contents for Sibata BU-24L

  • Page 1 Check the airline company's rules when transporting the product as carry-on or checked-in luggage. When the BU-24L is transported as air cargo, the rules in the IATA dangerous goods regulations apply, and the product is classified under UN3480, Section IA. In this case, the state of charge (SOC) must be 30 % max.
  • Page 2 Install this product on a horizontal, stable site.  When not using this product for a long time, store the BU-24L as an individual unit, in as  cool and dry a location as possible out of the direct sunlight. Storing the BU-24L units connected together to each other might cause battery degradation.
  • Page 3 ● Up to three BU-24L units can be used at a time. When carrying them, however, be sure to move them one at a time. In addition, store each unit individually to prevent deterioration of the battery. ●...
  • Page 4 ■ Warranty If a Sibata product fails within one year from date of purchase, it will be repaired free of charge. To request repairs, contact your Sibata distributor. Be sure to provide the item code, product name, model number, serial number, a description of the problem, and other relevant information.
