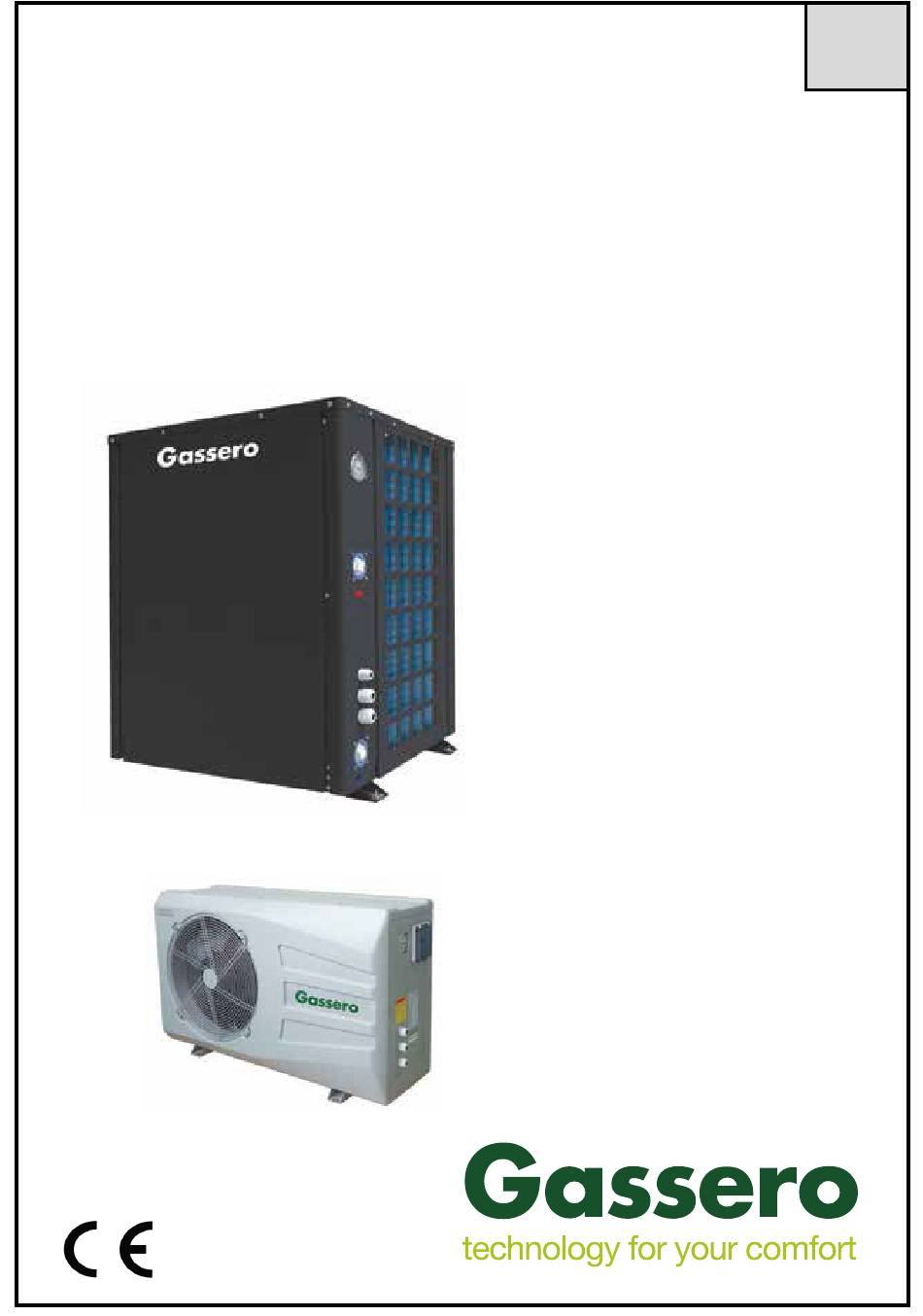

- Page 1 POOL HEAT PUMP INSTALLATION AND USER MANUAL GSR-11-PL GSR-13-PL GSR-18-PL GSR-26-PL...
-
Page 2: Table Of Contents
Before installing/mounting the heat pump please read this user manual carefully! Otherwise heat pump may be damaged, which may result in serious injury or even death for service personel and user. Heat pump shall be installed and start up by qualified personel approved by GASSERO. -
Page 3: Introduction Of Pool Heat Pump
Introduction of Pool Heat Pump Thank you for purchasing our reversible heat pump water heater for your Swimming Pool/Pond. Our heat pump was produced in accordance with the current European Standard and it is now ready to be used. Please read this manual carefully before install the heat pump, otherwise it may lead to damage to the heat pump or may injure operators as well as cause financial loss. -
Page 4: Safety Precautions
►High Efficiency With a COP value up to 5.5, our heat pumps are very efficient when transferring heat from the air to the swimming pool water. With the heat pump technology, as much as 80% of cost compared to an electrical heater can be saved. -
Page 5: Transportation And Storage
Transportation and Storage 1) The heat pump MUST be transported and stored VERTICALLY! 2) The heat pump MUST be transported and stored uprightly on a pallet with good package. 3) Should the heat pump be laid down, please wait at least 12 hours before switching it on Technical data Technical Table GSR11-PL... -
Page 6: Dimensions
Dimensions GSR11-PL GSR13-PL GSR18-PL GSR-11-PL GSR-13-PL GSR-18-PL 1006 1026 1026... - Page 7 GSR26-PL GSR-26-PL...
-
Page 8: Installations
Installation Installation Location 1. Installation must be simple and allow easy access for later work. 2. If the unit is to be installed on the floor, its undercarriage should be heightened, to avoid ingression of accumulate water in rainy season. In snowy areas, it is important to prevent accumulated snow from blocking up the air-out.The recommended height is 20cm to 30cm. -
Page 9: Pool Connection Diagram
Pool Connection Diagram ►Each addition of chemicals has to be performed through the conduits located downstream of the heat pump. ►Install a by-pass when the flow of the pool pump exceeds the authorized flow through the heat exchanger of the heat pump with 20%. By-pass Setting With the by-pass set correctly, best performance of the pool heat pump will be made. -
Page 10: Nots For Anti-Freezing In Winter
The filter connected with pipes should be cleaned regularly to make sure the water inside systems clean, NOTS for Anti-Freezing in Winter 1. The heat pump unit has auto antifreeze program. When the unit is working normally, there will not be freezing. -
Page 11: Electrical Connection
Electrical Connection This section is an indication only and must be checked and set when necessary according to installation conditions. Electrical installation and service must be carried out under the supervision of a qualified electrician or engineer. 1. The electrical power supply to the heat pump must be protected with a fuse and isolator switch (not provided) in compliance with standards and regulations valid in the country in which the system is to be installed. -
Page 12: Electric Circuit Drawing
Electric Circuit Drawing... -
Page 15: Control Panel
Control Panel ON-OFF When you switch OFF the machine on the controller, the display will indicate « Stand-by » Button serves to start/stop the heat pump. After stopping the machine with this button, it can take a few minutes till the machine comes to a complete hold. Working modes Button serves to change the working mode. -
Page 16: Time Setting
Time Setting Press one time button (hour will blink) Set hours with Press one time button (minutes will blink) Set hours with Press one time button to confirm Water Temperature Setting Start the machine and choose the desired mode (see precedent instructions). When pressing this button the display will indicate “SET”... -
Page 17: Water Flow Detection
İç Parametreler Internal Parameters Button serves to check the internal parameters. These parameters may only be modified by professionals. When the machine is displaying internal parameters, the icon will be shown. Controller State Table Screen Explanation Check Solution (if no reset) Stand-by -Verify if water in and outlet are connected correctly... -
Page 18: Maintenance And Trouble Shooting
Maintenance and Trouble Shooting Maintenance The heat pump water heater is an advanced clean and ventilated. Regularly equipment with high automization. The clean the evaporator to keep high reliability and operation life of the heat pump heat exchanging efficiency. can be expectedly gurranteed and even increased by regular inspection and Check the inside pipe connectors and effective maintenance. - Page 19 Gassero Isı Teknolojileri Sanayi Limited Şirketi İstanbul Endüstri ve Ticaret Serbest Bölgesi 4.Sokak,No:8, 34957 Tuzla / Istanbul / TÜRKİYE Telefon : +90 216 394 09 85 -86 -87 Faks : +90 216 394 24 91 www.gassero.com...
