Summary of Contents for Schiller Steiner 75-71234A

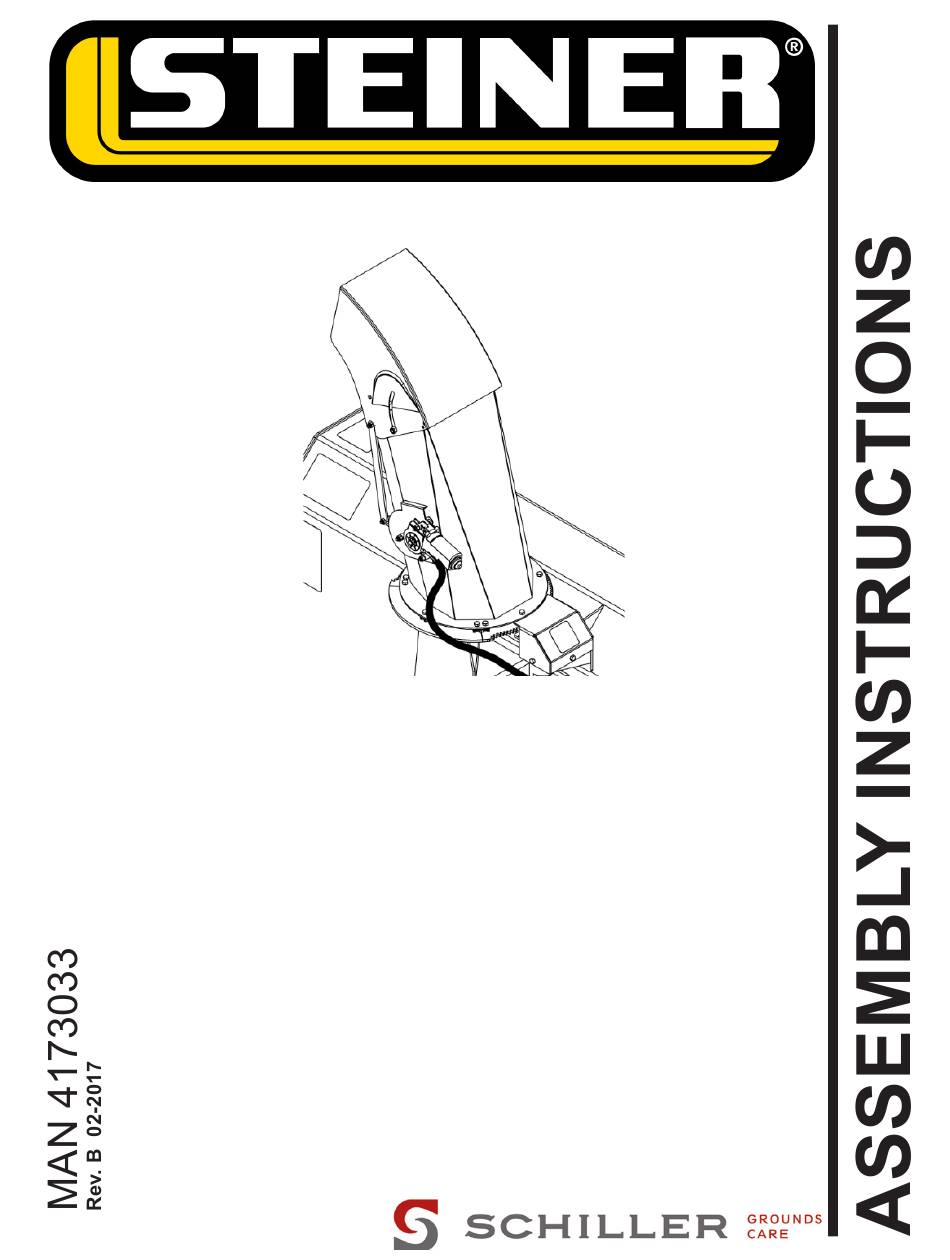

- Page 1 75-71234A ELECTRIC DEFLECTOR KIT FOR SNOWBLOWER...
- Page 3 Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety warnings and instructions.
- Page 4 These words appear in this Grounds Care, Inc. 's Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and...
- Page 5 ASSEMBLY/SET-UP INSTRUCTIONS GENERAL NOTE: FRONT, REAR, RIGHT HAND AND LEFT HAND REFERENCES BELOW ARE WITH RESPECT TO AN OPERATOR AT THE CONTROLS. TOOLS REQUIRED: 1 Flat screwdriver 1 Ratchet 1 Drill 2 Wrenches 7/16”, 1/2” 1 Bit 9/32” 1 Wrench (for the nuts on the posts of the 1 Square head screwdriver #2 battery on the unit) 1 Cross head screwdriver #2...
- Page 6 ASSEMBLY/SET-UP INSTRUCTIONS 3. Assemble the lever( Item 2) and the arm (Item 3) with one 1/4" X 3/4" hex bolt (Item 24) and one 1/4" nylon-insert locknut (Item 29). DO NOT TIGHTEN COMPLETELY so the deflector moves freely. 4. Insert three 1/4" X 2 hex bolts (Item 23) into the Ø9/32"...
- Page 7 ASSEMBLY/SET-UP INSTRUCTIONS 11. Secure lever arm (Item 3) on the head of the chute (Item B) with one 1/4" x1" carriage bolt (Item 25), four 5/16" flat washers (Item 31) and the 1/4" nylon-insert locnut (Item 29) . Note: The washers must be positioned between the head of the chute and the arm.
- Page 8 ASSEMBLY/SET-UP INSTRUCTIONS 14. Plug the breaker (Item 18) on the red wire. Plug the small wire (Item C) on the breaker. 15. Install wires A, B, C and D into switch (Item 16) as shown below. Be sure to position wire A & B properly to avoid short circuit.
- Page 9 ASSEMBLY/SET-UP INSTRUCTIONS CONTROL BOX INSTALLATION NOTE: Choose the ideal place to install the control box assembly (Item D). We suggest placing it on the right fender of the tractor, close to the driver's seat, with the switches toward the outside. 17.
- Page 10 TROUBLESHOOTING TROUBLESHOOTING (For identification, see the parts breakdown) PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Electric motor does not work. Overheating of the motor. These motors are equipped with internal protector. Wait 10 minutes before using. The deflector works inopposite the Wires are inversed. Change the black wire with the white- direction.
- Page 11 TORQUE SPECIFICATION TABLE SEE Grade No. TORQUE TORQUE TORQUE BOLT HEAD IDENTIFICATION MARKS AS PER GRADE NOTE MANUFACTURING MARKS W ILL VARY BOLT SIZE FOOT POUNDS NEW TON-METERS FOOT POUNDS NEW TON-METERS FOOT POUNDS NEW TON-METERS Inches Min. Max. Min. Max. Min.
- Page 12 PARTS BREAKDOWN...
- Page 13 PARTS LIST PARTS LIST ELECTRIC DEFELCTIR KIT FOR CHUTE COMMERCIAL GRADE Ref. .Part # English description Description française Réf. Qté. Pièce # 1 Bracket Support 4173032-02 2 Lever Levier 4173032-03 3 Arm Bras 4173032-04 4 Box Boîte 4173032-06 5 Box cover Couvercle de la boîte 4173032-07 Wire assembly...
- Page 14 Schiller Grounds Care, Inc. One Bob-Cat Lane Johnson Creek, WI 53038...
