ACOUSTIC SOLUTIONS KL-1 POP IDOL User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

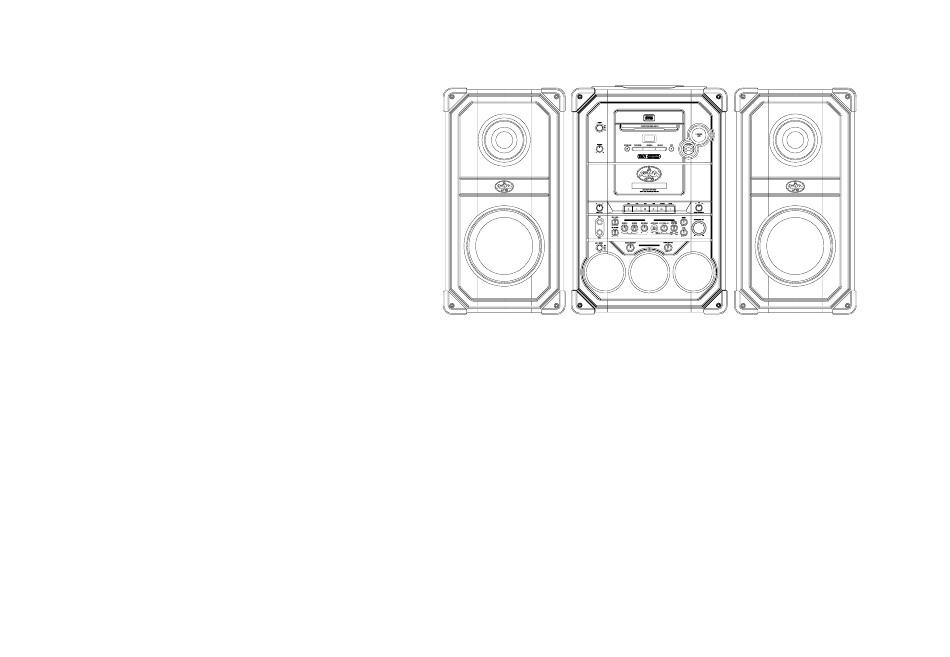

KL-1 POP IDOL KARAOKE MACHINE
CONTENTS
1
2
3
4
5
6-7
8
9-12
12-15
16
17
18
18-19
19
INTRODUCTION
Congratulations on purchasing this Pop Idol Karaoke machine from Acoustic Solutions. It has been developed following an extensive research and
development program that has culminated in what we regard as an exceptional home entertainment product.
Our aim when designing this product was to produce a home entertainment machine which could be used for a variety of applications. The robustness
and quality of the construction is testament to our research and development program which established that cheaper karaoke machine are not always
up to the job.
Because of the features built into this product, the KL-1 is ideal for the following applications:
Karaoke
Disco
Aerobics- varispeed CD & tape cassette allow BPM adjustment
General PA applications
We trust that this product will give you hours of listening pleasure, and provide years of unparalleled performance. As with any new electrical product
please be patient and allow at least 36 hours use before all components have acclimatized themselves with your surroundings, and found their optimum
working temperature.
1
Introduction
Conection locations rear panel
Connections
Troubleshooting
