Evco EVlinking EVIF25TWX Quick Start Manual

EVCO S.p.A. | EVIF25TWX | Instruction sheet ver. 4.0 | Code 104IF25TWXA403 | Page 1 of 2 | PT 46/21
EVIF25TWX/EVIF25SWX
EN ENGLISH
- powered by the controller or 12 VAC/15 VDC power supply
- clock
- TTL MODBUS port or RS-485 MODBUS port (according to the model)
- Wi-Fi connectivity.

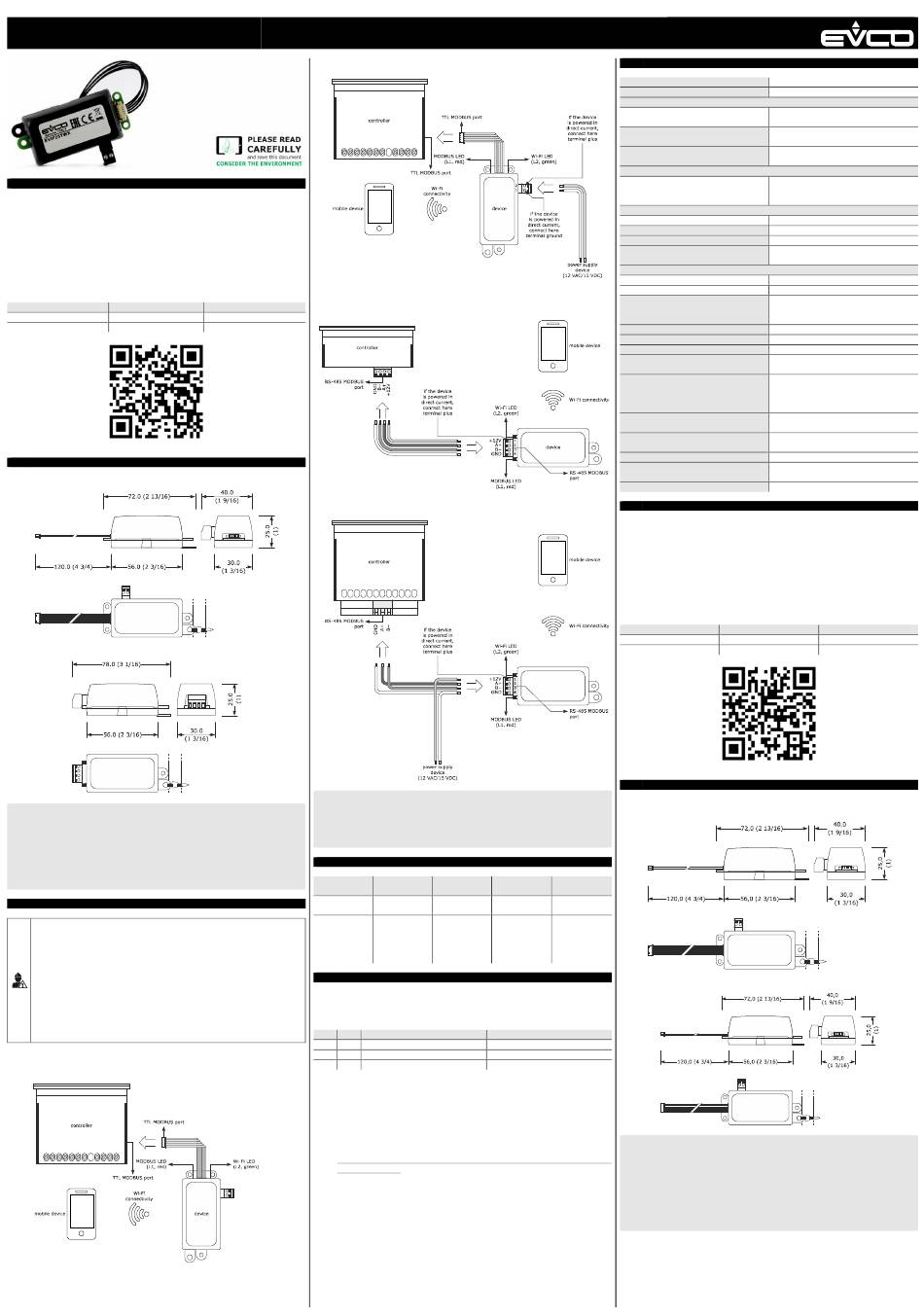

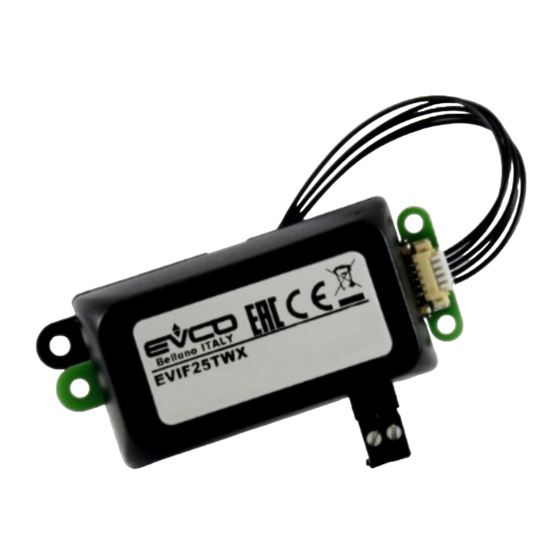

EVlinking Wi-Fi is a hardware module with Wi-Fi connectivity that can be connected to our
EPoCA compatible controllers to access the functions of the EPoCA cloud platform or those of
other control or data acquisition systems using the MODBUS TCP protocol.
The EVlinking Wi-Fi module can also be connected to third-party devices using the MODBUS
RTU protocol on the RS-485 port to allow integration with client systems.
Available models
Purchasing codes Communication port
EVIF25TWX TTL MODBUS
EVIF25SWX RS-485 MODBUS
Installer manual
1 MEASUREMENTS AND INSTALLATION
Measurements in mm (inches); to be fitted on rigid support, with cable tie (not provided).
EVIF25TWX:
EVIF25SWX:
INSTALLATION PRECAUTIONS
Ensure that the working conditions are within the limits stated in the TECHNICAL
-
SPECIFICATIONS section
Do not install the device close to heat sources, equipment with a strong magnetic field,
-
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks
In compliance with safety regulations, the device must be installed properly to ensure
-
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them.
2 ELECTRICAL CONNECTION
N.B.
- The compatibility of the controller with the remote monitoring system EPoCA and
the possibility to power EVlinking Wi-Fi from the controller depends on the kind of
controller. Consult the document "EPoCA - List of compatible controllers" available
on the web site www.evco.it and/or the controller label
- If EVlinking Wi-Fi must be powered with independent power supply, do not power it
with the same power source of the controller connected to EVlinking Wi-Fi
- The battery of EVlinking Wi-Fi is charged by the power supply of the device or by
the independent power supply: for correct operation, the battery must be fully
charged at least once a year
- To reduce any electromagnetic interference connect the power cables as far away
as possible from the signal cables and make the RS-485 connection by using a
twisted pair.
2.1 Example of electrical connection to a controller with TTL MODBUS port
In this example the controller is capable of powering the device.
EVlinking Wi-Fi module
In this example the controller is not capable of powering the device.
2.2 Example of electrical connection to a controller with RS-485 MODBUS port
In this example the controller is capable of powering the device.
Connectivity
Wi-Fi
Wi-Fi
In this example the controller is not capable of powering the device.
PRECAUTIONS FOR ELECTRICAL CONNECTION
- If the device has been moved from a cold to a warm place, the humidity may have
caused condensation to form inside. Wait about an hour before connecting it to the
controller
Disconnect the device from the controller before doing any type of maintenance
-
For repairs and for further information, contact the EVCO sales network.
-
3 MEANING OF LEDS
LED ON
MODBUS -
(L1, red)
Wi-Fi connection both
(L2, green) to the
network and to
the Cloud server
4 FIRST-TIME USE
1. Install following the instructions given in the section MEASUREMENTS AND INSTALLA-
TION.
2. Power up the controller; see the relative instruction sheet.
3. Configure the controller.
Recommended configuration parameters for first-time use.
PAR. DEF. PARAMETER
bLE 1 enable EVlinking
rE0 15 data-logger sampling interval
rE1 - - - recorded data
4. Disconnect the controller from the mains.
5. Connect the MODBUS port of the device to the MODBUS port of the controller as shown
in the section ELECTRICAL CONNECTION.
6. If the device needs independent power supply, power up the device.
7. Power up the controller and an internal test will be run.
The test normally takes a few seconds, when it is finished the LED of the device will
switch off.
8. If the controller shows the label "rtc" flashing, set the date and time.
Do not disconnect the controller from the mains in the two minutes following the setting
of the date and time.
9. Activate the Wi-Fi of a mobile device, localize the network called "Epoca" followed by a
suffix made of 6 number and letters (for example "Epoca279A62") and connect it to
the mobile device using password "epocawifi"; always verify the password on the label
of the device.
10. For more information see the Installer manual.
OFF SLOW FLASHING QUICK
SHING
no MODBUS ac- MODBUS activity -
tivity
- no connection to connection
Wi-Fi the Wi-Fi net- the Wi-Fi
work work, no connec-
tion to the Cloud
server
MIN... MAX.
0 = no 1 = yes
0... 240 min
according to the controller
5 TECHNICAL SPECIFICATIONS
Container:
Category of heat and fire resistance:
Measurements:
176.0 x 30.0 x 25.0 mm (6 15/16 x 1 3/16 x
1 in) the models with TTL MODBUS port
Mounting methods for the control device:
Degree of protection provided by the cover-
ing:
Connection method:
Removable screw terminal block for wires up
to 1,5 mm² and Pico-Blade connector for the
models with TTL MODBUS port
Maximum permitted length for connection cables:
Power supply: 10 m (32.8 ft)
Operating temperature:
Storage temperature:
Operating humidity:
Compliance:
RoHS 2011/65/CE
REACH (EC) Regulation no. 1907/2006
Power supply:
Software class and structure:
Clock:
Clock drift:
Clock battery autonomy in the absence of a
power supply:
Clock battery charging time:
Displays:
Communications ports:
Connectivity:
Wi-Fi output power (EIRP):
Wi-Fi frequency range:
I ITALIANO
- alimentato dal controllore o alimentazione 12 VAC/15 VDC
- orologio
- porta TTL MODBUS o RS-485 MODBUS (a seconda del modello)
- connettività Wi-Fi.
EVlinking Wi-Fi is a hardware module with Wi-Fi connectivity that can be connected to our
EPoCA compatible controllers to access the functions of the EPoCA cloud platform or those of
other control or data acquisition systems using the MODBUS TCP protocol.
The EVlinking Wi-Fi module can also be connected to third-party devices using the MODBUS
RTU protocol on the RS-485 port to allow integration with client systems.
Modelli disponibili
Codici di acquisto Porta di comunicazione
EVIF25TWX TTL MODBUS
EVIF25SWX RS-485 MODBUS
Manuale installatore
1 DIMENSIONI E INSTALLAZIONE
Dimensioni in mm (in); installazione su supporto rigido, con fascetta stringicavo (non in dota-
zione).
EVIF25TWX:
FLA-
to
net-
EVIF25SWX:
AVVERTENZE PER L'INSTALLAZIONE
- accertarsi che le condizioni di lavoro rientrino nei limiti riportati nel capitolo DATI TEC-
NICI
- non installare il dispositivo in prossimità di fonti di calore, di apparecchi con forti ma-
gneti, di luoghi soggetti alla luce solare diretta, pioggia, umidità, polvere eccessiva, vi-
brazioni meccaniche o scosse
- in conformità alle normative sulla sicurezza, la protezione contro eventuali contatti con
le parti elettriche deve essere assicurata mediante una corretta installazione; tutte le
parti che assicurano la protezione devono essere fissate in modo tale da non poter es-
sere rimosse senza l'aiuto di un utensile.
Black, self-extinguishing.
D.
78.0 x 30.0 x 25.0 mm (3 1/16 x 1 3/16 x 1
in) the models with RS-485 MODBUS port.
On rigid support, with cable tie (not provid-
ed).
IP00.
Removable screw terminal block for wires up
to 1,5 mm² for the models with RS-485
MODBUS port.
RS-485 MODBUS port: 1,000 m (3,280 ft).
From 0 to 55 °C (from 32 to 131 °F).
From -25 to 70 °C (from -13 to 158 °F).
Relative humidity without condensate from 5
to 95%.
WEEE 2012/19/EU
RED 2014/53/EU.
powered by the controller or 12 VAC ±15 o
15 VDC ±15%, 50/60 Hz (±3 Hz), max.
3.2 VA/2W.
A.
Secondary lithium battery.
≤ 60s/month at 25°C (77 °F).
> 6 months at 25 °C (77 °F).
24h (the battery is charged by the power
supply of the device).
For correct operation, the battery must be
fully charged at least once a year.
MODBUS and Wi-Fi communication status
LED.
1 TTL MODBUS slave port or RS-485 MOD-
BUS port (according to the model).
Wi-Fi.
11b: 67.5 mW and 11g: 71.1 mW, 11n
(HT20) 56.5 mW
2,412... 2,472 MHz.
Connettività
Wi-Fi
Wi-Fi
