IMPORTANT:
KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
WARNING:
1. Two people are required for assembly.
2. Some parts may contain sharp edges. We recommend that that you wear protective gloves.
3. When assembling and using this product, basic safety precautions should always be followed to
reduce the risk of personal injury or damage. Please read all instructions before assembly and
usage.
4. Do not leave the gazebo up where there is a risk of high winds, as possible damage will occur to
the structure. The manufacturer or retailer is not liable for any loss of the product or other items
due to the failure to take down the gazebo during strong wind.
5. WARNING: Keep all flame and heat sources away from this gazebo fabric. This gazebo is made
with fabric that meets CPAI-84 specifications for flame resistance. It is not fire proof. The fabric will
burn if left in continuous contact with any flame source. The application of any foreign substance to
the gazebo fabric may render the flame-resistant properties ineffective .
PREPARATION:
Before beginning assembly of this product, make sure all parts are present. Compare parts with
package contents list. If any part is missing or damaged, do not attempt to assemble the product.

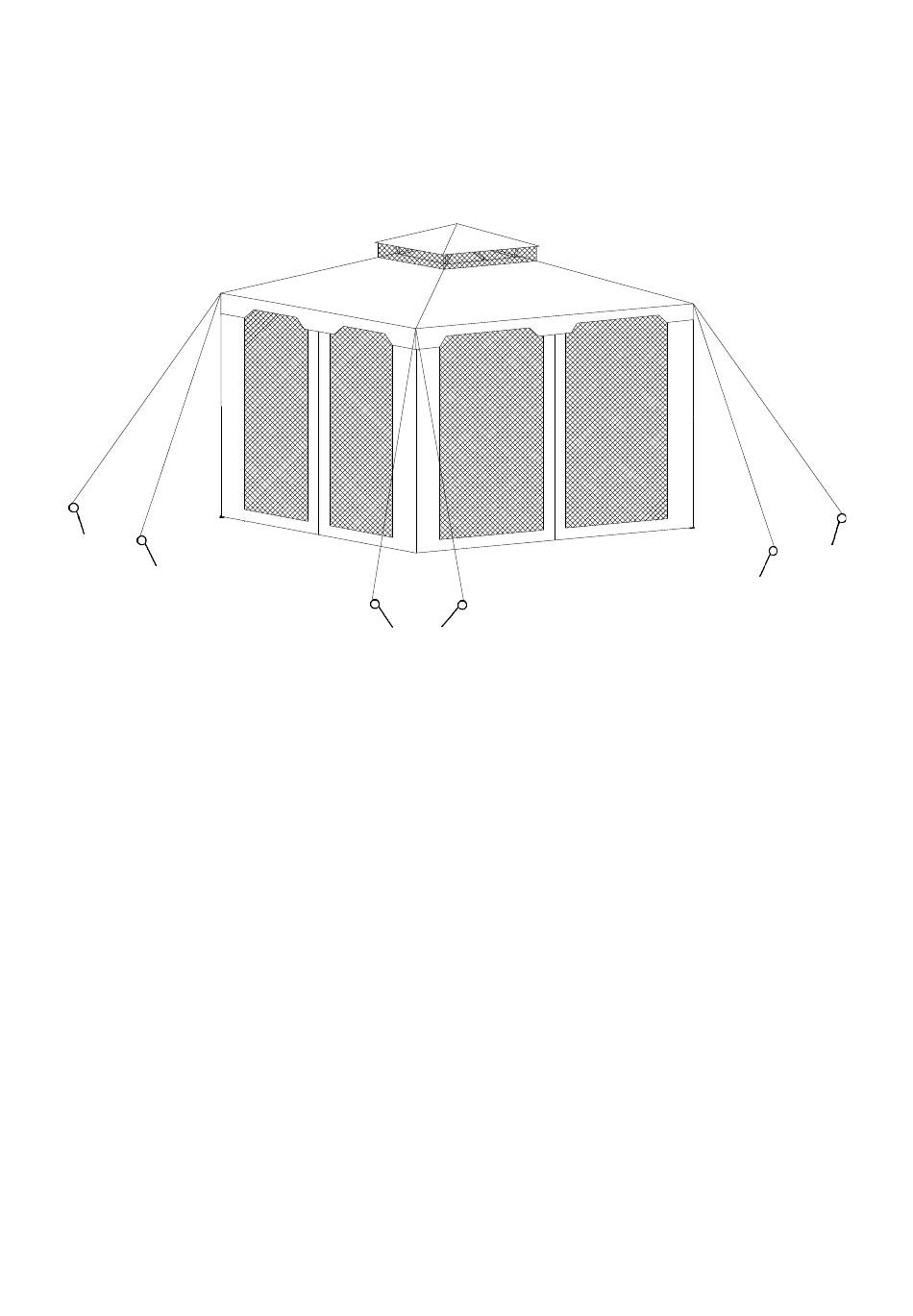

10' X 10' Weist Gazebo
Item#: A101000600
TV. #: 187018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for True Value Weist A101000600
Summary of Contents for True Value Weist A101000600
- Page 1 10’ X 10’ Weist Gazebo Item#: A101000600 TV. #: 187018 IMPORTANT: KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE. WARNING: 1. Two people are required for assembly. 2. Some parts may contain sharp edges. We recommend that that you wear protective gloves. 3.
- Page 2 Parts List Pieza Part Number Descripción Cantidad Diagrama de la pieza P000200280 Upper post 4 PCS P000200281 Down post 4 PCS P000400599 Long support pipe 8 PCS Short support P000400600 4 PCS pipe P000600877 Top short pipe 4 PCS P000600878 Top long pipe 4 PCS P000100170...
- Page 3 Assembly step: Fig.1: Insert both ends of short support pipe (4) into long support pipe (3), and then insert another end of long support pipe (3) into pipe connector (B), with gradient circular tube upwards. Fig.2: Insert one end with contracted pipe of top short pipe (5) into top long pipe (6), then insert top long pipe (6) into big top connector (C), put big canopy (E) onto frame before installing fourth top long pipe (6), do not spread out.
- Page 4 Fig.4: Insert one end with spring fastener of upper post (1) into pipe connector (B). Fig 5: Insert one end with contracted pipe of down post (2) into upper post (1); insert another end of down post (2) into base (A).
- Page 5 Before returning to your retailer, call Sunjoy Group at 1(866) 578‐ 6569 anytime 24 hours / 7 days a week, or email to truevalue@sunjoygroup.com or visit www.sunjoyonline.com for more information or assistance. Manufactured for and distributed by True Value ® Company Chicago, IL 60631-3505 © 2020 True Value Company Made in China...
