Furnika CARMA KRS05 Assembly Instructions

CARMA KRS05 assembly instructions
CARMA KRS05 – pullout dish rack with separators for dishware holding equipped with
the guide rails with the function of synchronization and dimensioning

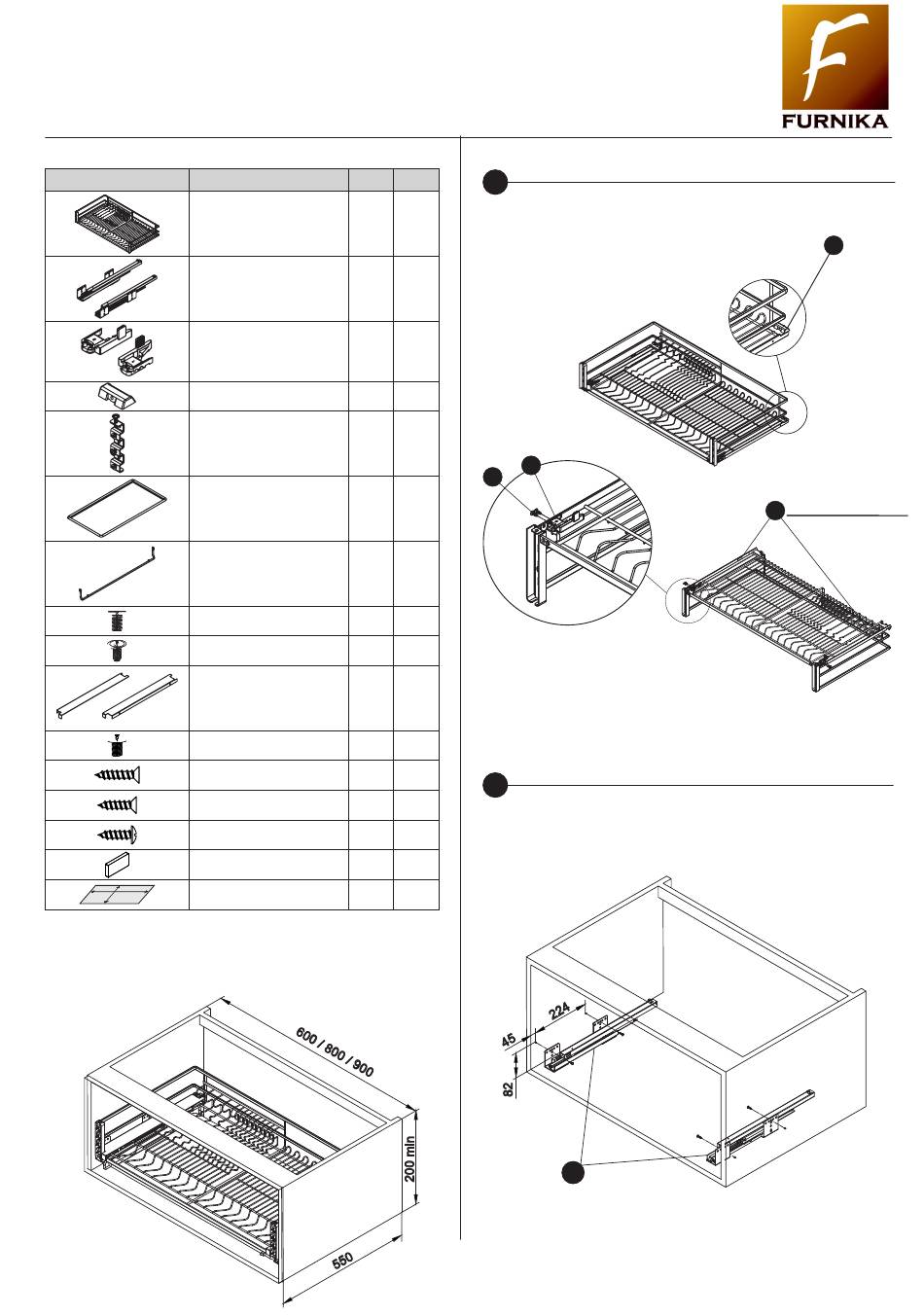

COMPONENT PARTS

Dish rack
Set of right and left
guide rails
Set of right and left
fasteners
Rack holder plate
Front wall holder plate
Tray
Tray holder plate
Screw, M5×8
Half-round screw, M5×8
Set of right and left
edge strips
Screw, M4×4
Self-tapping screw, ST4×16
Self-tapping screw, ST4×14
Half-round self-tapping
screw, ST4×14
Edge strips
Master plate of front
wall holder plates

DISH RACK PARAMETERS

KRS05/1/3/600 535х460х160 (W×D×H)
KRS05/1/3/800 735х460х160 (W×D×H)
KRS05/1/3/900 835х460х160 (W×D×H)
Name
Tag Pcs
1
A
1
B
1
C
2
D
2
E
F 1
G 2
H 2
I 2
J 1
K 4
8
L
M 4
8
N
2
O
P 1

MOUNTING

1
1.1 Attach the rack holder plate (D) to the dish rack (A)
1.2 Set the fasteners (C)
C
M
2
2.1 Set the guide rails (B) and fix them with the self-tapping screws (L)
B
D
Edge strips (O)
O
unnecessary if the
thickness is 16 mm
