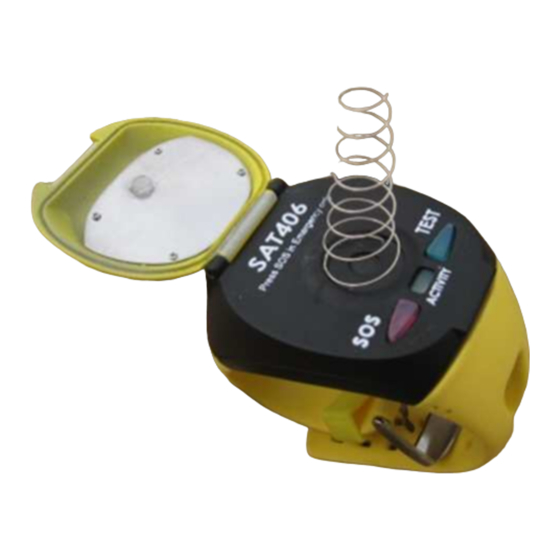

SAT406 -
Activate SOS only in case of life danger
User
1 2
• Place SAT406 on the ground or leave on the
wrist, facing the open sky
• Open cover - antenna extends automatically
SOS
button for 3-5 seconds until orange
• Press
light blinks
SOS
Mode
System
3
• SAT406 Transmits short signals, every 50
seconds, for at least 24 hours
• Satellites relay signals to base station
• Base station determines user ID and location and
alerts nearest Rescue Coordination Center (RCC)
• Nearest RCC sends rescue to user location
Deactivation (in case of
Press [SOS+TEST] for 5 sec until light turns off
false
alarm)
Advertisement
Summary of Contents for Mobit SAT406
- Page 1 Mode Activate SOS only in case of life danger User System • Place SAT406 on the ground or leave on the • SAT406 Transmits short signals, every 50 wrist, facing the open sky seconds, for at least 24 hours • Open cover - antenna extends automatically •...
- Page 2 Max. 6 GNSS Tests between battery replacements User System (after 3 minutes) • Place SAT406 on ground or leave on the wrist • Indicates GNSS fix (in GNSS TEST) with ~15 fast blinks of [orange + green] LEDs • Open cover - antenna extends automatically •...
- Page 3 • Pre Transmission: orange LED blinks fast for 4 sec; if GNSS position fixed, also green LED • Post Transmission: green LED blinks once if TEST OK; orange LED blinks once if TEST failed. On the Wrist Mobit Telecom Ltd. www.sat406.com...
