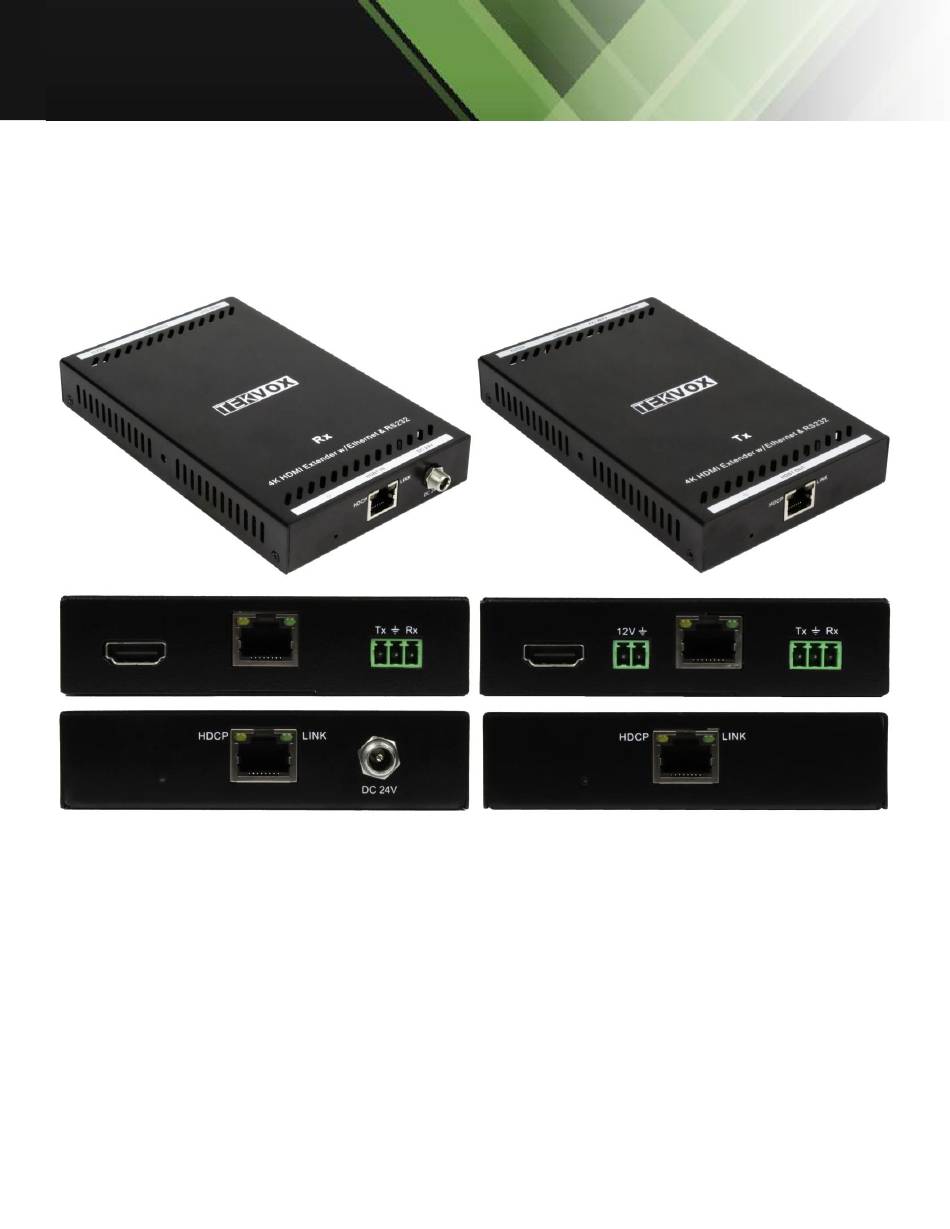

- Page 1 TPUH460S 79086S User Manual TEK TPUH-460S HDMI 1.4 Extender with Ethernet & RS-232 All Rights Reserved Version: TPUH460S_2021V1.1 www.tekvox.com...
- Page 2 TPUH460S 79086S User Manual Safety Precautions To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. • Unpack the equipment carefully, and save the original box and packing material for possible future shipment •...
- Page 3 TPUH460S 79086S User Manual Table of Contents 1. Product Introduction ........................4 2. Features ............................4 3. Package List ..........................4 4. Panel Description ......................... 5 4.1 Transmitter ............................5 4.2 Receiver ............................... 6 5. Specifications ..........................7 www.tekvox.com...
- Page 4 TPUH460S 79086S User Manual 1. Product Introduction The HDMI 1.4 Extender consists of a transmitter and a receiver. It can extend 4K or 1080p video to distance up to 328 feet (100 meters) over a single CAT cable. It supports bi-directional RS-232 pass- through control and Ethernet extension.
- Page 5 TPUH460S 79086S User Manual 4. Panel Description 4.1 Transmitter 1. HDMI IN: Connects to HDMI source device 2. CAM 12V: Provides 12V, 2.5A power for source device (e.g. camera) 3. Ethernet: Used for Ethernet extension together with the Ethernet port of the receiver. If one Ethernet port is connected to a router, the other is able to access the LAN network 4.
- Page 6 TPUH460S 79086S User Manual 4.2 Receiver 1. HDMI Out: Connects to HDMI display device (e.g. projector) 2. Ethernet: Used for Ethernet extension together with the Ethernet port of the transmitter. If one Ethernet port is connected to a router, the other is able to access the LAN network 3.
- Page 7 TPUH460S 79086S User Manual 5. Specifications Transmitter Input HDMI IN (19-pin type-A female HDMI) Output HDBT OUT (RJ45) ETHERNET (RJ45), Control RS-232 (3-pin terminal block) Power Output CAM 12V (2-pin terminal block) Receiver Input HDBT IN (RJ45) Output HDMI OUT (19-pin type-A female HDMI)
