Summary of Contents for SmartRoom WL-SR-R-01
- Page 1 SmartRoom ® Member Wireless Repeater Quick Start Guide Please refer to the software instruction manual or download the Software Download Guidance for more information if it is necessary.
- Page 3 The reproductions of the content of the manual, in whole or in part, are strictly prohibited. Without the written consent from Nanjing SmartRoom Co., Ltd, the using of the content in other computers capable of reproducing and retrieving and reverse engineering are also...
- Page 4 Trademark SmartRoom logo is registered trademark of Nanjing SmartRoom Co., Ltd. Nanjing SmartRoom Co., Ltd has the ownership of the above trademark. Usage of these trademarks is strictly prohibited without the written authorization and permission from Nanjing SmartRoom Co., Ltd. Legal action will be taken against unauthorized use of these trademarks.
-
Page 5: Basic Functions

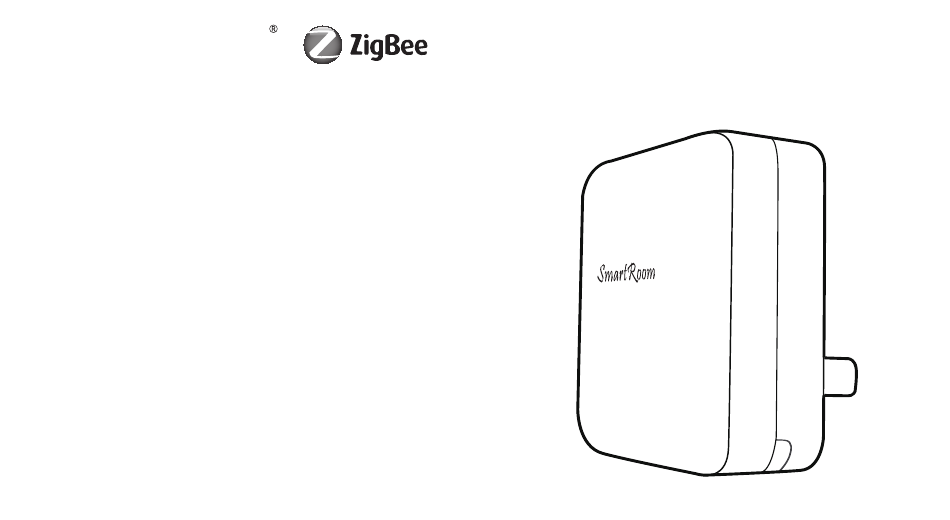

Basic Functions ● Compatible with ZigBee/SmartRoom protocol ● Strengthen wireless signals and enlarge network coverage area ● Moveable, safer and more reliable. Humanized design, plug and play ● Wireless connection without network cable... - Page 6 Function Graphic System indicator Plug Multi-function Button...
-
Page 7: Installation Steps
Installation steps... -
Page 8: Network Settings
Network Settings 1.This product can be used as an ordinary repeater and can also used with Wulian wireless gateway . Smart Terminal Wireless Gateway Wireless Repeater Smart products... - Page 9 Network Settings 2.Quickly click [Multi-Function Button] 4 times to apply to join into ZigBee network. [Sys- tem indicator light] will keep glittering when searching the network. After the success to ZigBee network, [System indicator light] will shine for 2 seconds. System indicator light Quickly click [Multi-Function Button] 4 times Each click less than 1 second.
- Page 10 Network Settings 3.Long ress [Multi-Function Button] for 10 seconds, [System indicator light] will twinkle for 4 times, then it will return to factory settings and exit from ZigBee network. [System indicator light] will go out after twinkling for 4 times Long press [Multi-Function Button] for 10 seconds...
- Page 11 Network Settings 4.Click Multi-function Key 6 times quickly, the network will allow to join in 4 minutes. [System indicator light] will twinkle for one time Shortly click [Multi-Function Button] for 6 times...
-
Page 12: How To Use
How to use This product is a plug and play type, mainly used the spread and the regional coverage of wireless network signal, so as to realize the smooth running of home wireless network. -
Page 13: Product Specification
Product Specification Communication mode IEEE802.15.4 Communication distance 100m（Under the condition of visual） Operating Temperature -10℃~+55℃ Power Requirement 110-240VAC Weight Net Weight Color Various materials and colors to choose... -
Page 14: Order Information
Order Information Name of Order Wireless Repeater Model WL-SR-R-01 Article Number SRPN1312501 Packing size 133×100×50mm... - Page 16 Building 76, Nanjing Software Vally , No.15 Fengji Avenue, Nanjing City, 210039, China Service Hot line:400-928-9288 www.SmartRoom.cn...
