IONFILTER LATT Instruction Manual

Direct flow reverse osmosis equipment
Hide thumbs

Advertisement

Quick Links

Download this manual

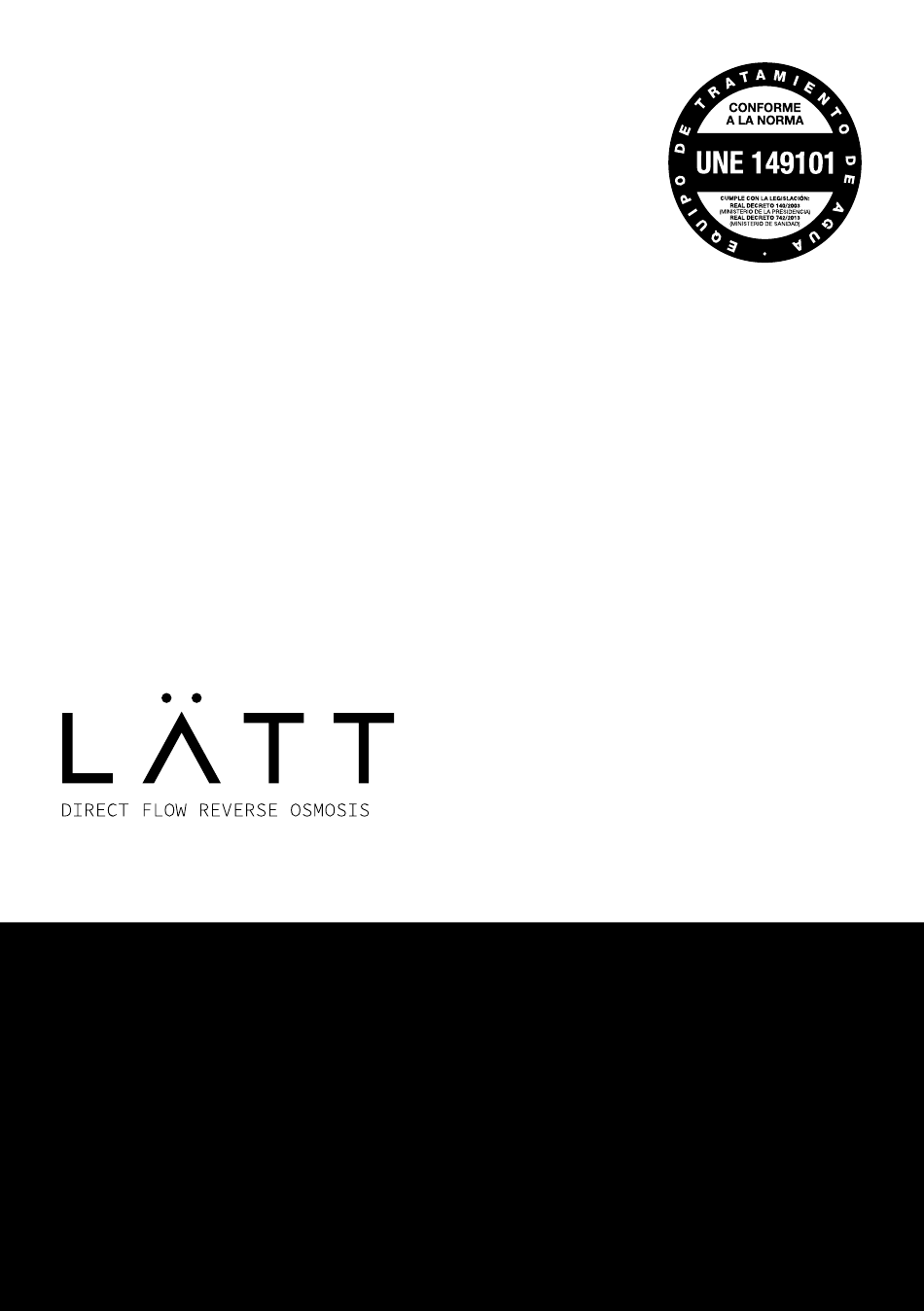

INSTRUCTION MANUAL
REVERSE OSMOSIS EQUIPMENT
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LATT and is the answer not in the manual?

Questions and answers

Related Manuals for IONFILTER LATT

Summary of Contents for IONFILTER LATT

  • Page 1 INSTRUCTION MANUAL REVERSE OSMOSIS EQUIPMENT...
  • Page 3 CONTENTS User manual Technical manual Hygienisation procedure Technical data...
  • Page 4 USER’S MANUAL FOR REVERSE OSMOSIS SYSTEMS 0. MAIN CHARACTERISTICS CLICK ELECTRONIC ADAPTER QUICK AND HIGH INCREASED SAFETY SECURE CONNECTIONS AND EFFICIENCY FILTER CONTROL DOUBLE FLOW AUTOMATIC GREATER FLOW MAINTENANCE NOTIFICATION OF WATER DISPENSED SOLENOID DIRECT VALVE ACCESS INSTANT CONTROL EASY ACCESS SAFETY MESH AND MAINTENANCE AQUASTOP...
  • Page 5 1. INTRODUCTION 3. PRECAUTIONS ATTENTION: Read carefully the warnings des- congratulations. You have purchased an excellent do- cribed in the corresponding section of the Tech- mestic water treatment equipment. nical Manual. This equipment will help you to improve the properties ATTENTION: This equipment is not a water puri- of your water.
  • Page 6 4. THE BASIC OPERATION The mains water to be treated enters the equipment through the sediment and carbon filter. In this filtration stage the suspended particles, chlorine, its derivatives and other organic substances are kept. The passage of water into the equipment is controlled by a solenoid shut-off valve.
  • Page 7 7. IDENTIFICATION AND RESOLUTION OF PROBLEMS PROBLEMS POSSIBLE CAUSE SOLUTION 1. External leakage of Several possible causes. Call for service. the equipment. 2. No production. 1. No water supply. 1. Allow the supply to return. 2. No power supply. 2. Check your home’s power supply. If the 3.
  • Page 8 TECHNICAL MANUAL FOR REVERSE OSMOSIS EQUIPMENT 1. MAIN FEATURES APPLICATION Water treatment Reverse osmosis Usage To improve the characteristics of drinking water (complying with the requirements of the European Drinking Water Directive 98/83 or its national transpositions in the different Member States of the European Community). Modifications by reduction or contribution - Reverse osmosis water treatment is able to reduce concentrations of salts and other substances by high percentages.
  • Page 9 - This equipment should not be installed either lying - If the water to be treated has a hardness greater than 15 down or tilted (2), because the leakage sensor would ºHF, this could lead to a reduction in the life of the membra- ne and in the performance of the equipment.
  • Page 10 ATTENTION: Dispose of plastic bags properly and � 16 mm keep them out of the reach of children, as they � The intelligent tap su- may be dangerous to them. pplied with the equip- ment has a connection Inside you will find: Water treatment equipment, insta- cable.
  • Page 11 8, 9 and 10. - Close the equipment faucet on the worktop and keep - Install the CF filter in the first stage of the LATT machine the equipment hydrau- (lower position), the RO membrane in the second stage of...
  • Page 12 RECOMMENDED MAINTENANCE CF prefilter: at least every 12 months. * RO osmosis membrane: Every 2 years approx (for waters to be treated soft (hardness <15 ºHF)). Postfilter CB: At least every 12 months. Hygienization: At start-up. At least every 12 months de- pending on use.
  • Page 13 Hydraulic diagram. See page 10. 1/4” 1/4” 1/4” � 3/8” 3/8” 1/4” 1/4” IN/FEED DRAIN...
  • Page 14 HYGIENISATION PROCEDURE 1. HYGIENISATION ATTENTION: Use extreme caution when handling filters, membrane and equipment components in contact with water. Wear disposable gloves or wash Material required: hands as often as necessary to avoid risks of equipment contamination. - Manual valve. - Dosing cup and connectors.
  • Page 15 - Once the unit is installed, keep the new manual inlet valve closed and open the inlet valve connected to the wall adapter (7). The measuring cup must be empty. - Pour 0.25 litres of hydrogen peroxide into the measu- ring cup inserted in the equipment inlet (8).
  • Page 16 - Pay special attention to the sanitization of the tap spout. Use the sanitizing sprayer (or in its absence, hy- drogen peroxide, measuring it in such a way that it pe- netrates the spout of the faucet) and single use drying kitchen paper.
  • Page 18 TECHNICAL DATA SHEET FOR REVERSE OSMOSIS EQUIPMENT 1. TECHNICAL FEATURES APPLICATION Water treatment Reverse osmosis Usage Improvement of the characteristics of drinking water (complying with the requirements of the European Drinking Water Directive 98/83 or its national transpositions in the different Member States of the European Community). Modifications by reduction or contribution - Reverse osmosis water treatment is able to reduce concentrations of salts and other substances by high percen- tages.
  • Page 19 CF Prefilter 1 x combined sediment/carbon. � IN � OUT RO membrane 1 x 500 GPD membrane. � IN � OUT/PURE � WASTE Flow rate of osmosed water: 1,6 lpm. Volume of osmosed water: 4,000 l. Optimum working pressure: 2bar. CB Postfilter 1 x Postfilter carbon.
  • Page 20 HYDRAULIC WIRING DIAGRAM * For salinity higher than 1500ppm consult your dis- tributor. ** Higher hardnesses may shorten the life and func- tion of certain components. *** Maximum accumulation as a function of inlet pressure. **** Flow rates may vary by 20% depending on the temperature, pressure and specific composition of the water to be treated.
  • Page 21 3.2. FUNCIONALIDADES FUNCTION ACTIONS LIGHT STATUS During the wash, the water quality light 1. Cleaning for first The RO membrane will be washed by the use. machine for 5 minutes. Afterwards, open the is shown flashing red at 1Hz. After 6 mi- tap for 30 minutes.
  • Page 22 3.3. IDENTIFICATION AND RECTIFICATION OF FAULTS TYPE NOTIFYER SOLUTION DISPLAY ACOUSTICS When the water pressure at the inlet 1. Lack of water pres- Fault-light in red, 3 beeps. returns, the system also returns to its sure at the inlet. CF light in blue. normal state, and the alarm is turned off.
  • Page 24 4. WARRANTY The distributor guarantees the equipment for a period of two years in the event of any non-compliance detected in the equipment, in accordance with Royal Decree 1/2007 of 16 November (revised text of the General Law for the Defence of Consumers and Users). - The guarantee includes the repair and replacement of faulty parts by personnel authorised by the distributor or by the official technical assistance service (S.A.T.) at the place of installation or in its workshops.
  • Page 25 5. INSTALLATION REGISTER SHEET NOTES TO THE TECHNICIAN/INSTALLER: read this manual carefully. If in doubt, contact your dealer’s Technical Support Service (T.A.S.). The data marked with the symbol * must be filled in by the technician/installer and transcribed by him/herself to the WARRANTY page. This sheet must be kept by the installer and may be requested by the distributor in order to improve after-sales service and customer service.
  • Page 26 6. MAINTENANCE SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORISED TECHNICIAN DATE SERVICE TYPE SETTING UP FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION...
  • Page 27 6. MAINTENANCE SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORISED TECHNICIAN DATE SERVICE TYPE SETTING UP FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION...
  • Page 28 6. MAINTENANCE SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORISED TECHNICIAN DATE SERVICE TYPE SETTING UP FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION...
  • Page 29 6. MAINTENANCE SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORISED TECHNICIAN DATE SERVICE TYPE SETTING UP FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION OUTSTANDING. OTHER WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY HYGIENISATION...
  • Page 30 NOTES...
  • Page 31 NOTES...
