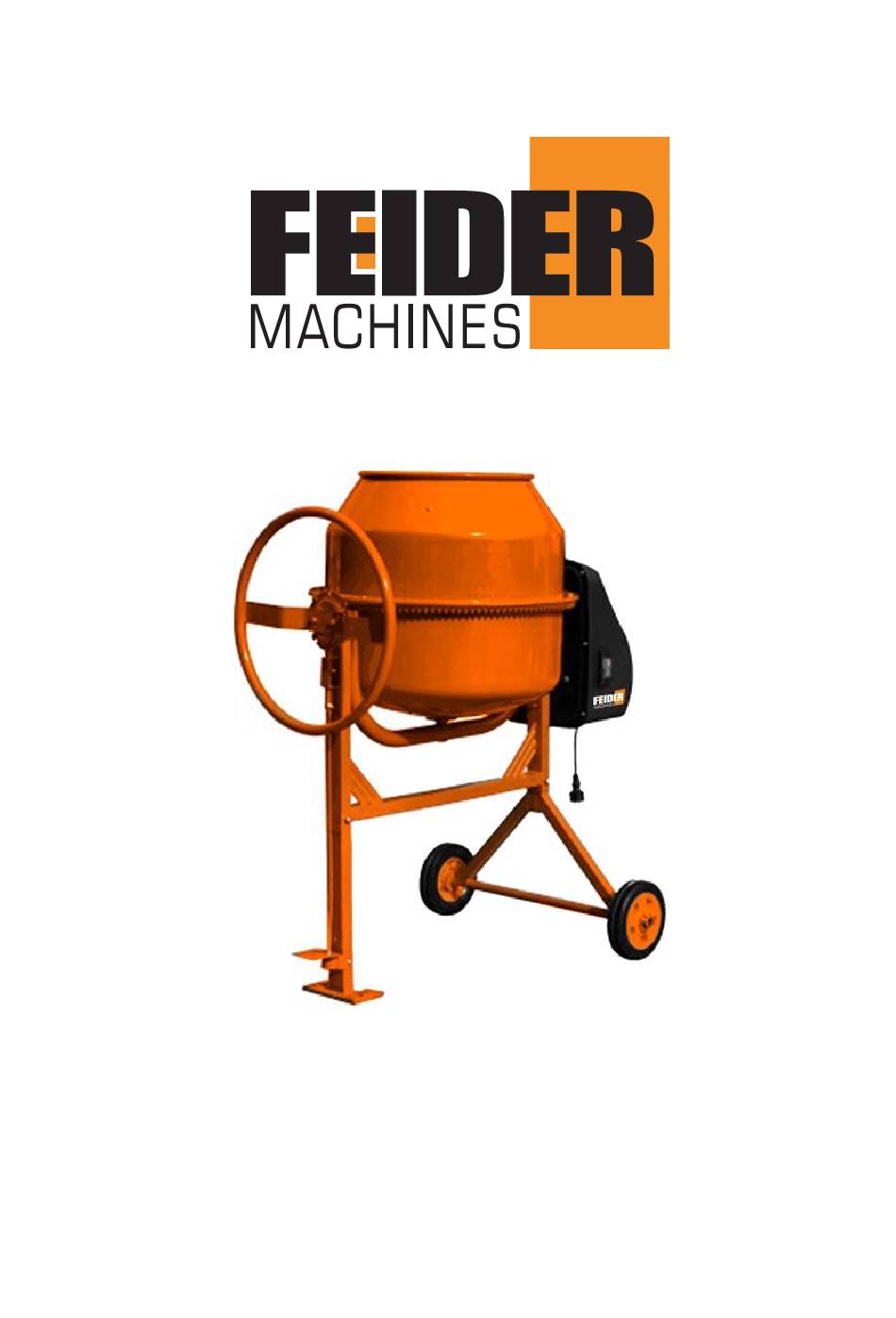

- Page 1 ORIGNIAL INSTRUCTIONS >EN CONCRETE MIXER FBTE120L USER GUIDE CAUTION: Read the instructions before using the machine.
-
Page 2: Table Of Contents
CONTENT INTENDED USE...............3 RESIDUAL RISKS..............3 SAFETY INSTRUCTIONS............3 ELECTRICAL SAFETY ............5 SYMBOLS................7 PRODUCT DESCRIPTION............9 TECHNICAL DATA..............9 ASSEMBLY INSTRUCTIONS..........10 OPERATION INSTRUCTIONS..........17 MAINTENANCE INSTRUCTIONS..........18 DISPOSAL................19 DECLARATION OF CONFORMITY........20 WARRANTY................21 PRODUCT FAILURE..............22 WARRANTY EXCLUSIONS...........23 Read and understand the operating instructions before using the appliance. Familiarize with the control elements and how to use the appliance properly. -
Page 3: Intended Use
1. INTENDED USE The concrete mixer has been designed to be used exclusively for concrete and mortar production. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. - Page 4 sure it does not fall over). 7. To prevent tripping, remove any obstacles on the site. 8. The operator is responsible to third persons in the work area. 9. Do not operate the mixer unattended. 10. Do not let children near the mixer. 11.
-
Page 5: Electrical Safety
4.ELECTRICAL SAFETY Operation is only allowed with a safety switch against stray current (RCD max. current of 30mA). WARNING! Before opening the housing, disconnect from the electric grid. The housing must be fully closed before operating the machine. 1. Concrete mixer with protective insulation, (Protection class II) 2. - Page 6 insulation materials/components are used for a repair and when the insulation distances are not changed. OPERATION 1. Never touch inside the running mixer drum (rotary stirrer). Keep adequate safety distance from the mixer. 2. Prevent any contact with the rotary or moving parts of the machine. 3.
-
Page 7: Symbols
5. SYMBOLS Caution! Read the operating instructions to reduce the risk of injury. Always wear goggles when using the machine. Wear gloves! Wear safety shoes with steel reinforcement! Wear ear protectors! Always wear a breathing mask Always unplug the machine when not in use, before moving, making adjustments, changing parts, cleaning or working the machine. - Page 8 Only use the machine on a solid, flat and level surface. Replace damaged, missing or failing parts before using the machine. Before switching on, always remove adjustment tools, shovels, hand trowels, and other tools from the machine area. Keep your hands away from all moving parts. Warning against dangerous voltage Sound power level L CE marking...
-
Page 9: Product Description
6. PRODUCT DESCRIPTION 1. ON/OFF switch 5. Wheel bracket 2. Operating wheel 6. Wheels 3. Drum 7. Motor compartment 4. Support bracket 7. TECHNICAL DATA Mains voltage: 230V~, 50Hz Power input: 550W Speed: 29m/min Drum capacity: 120L Drum mouth size: 324mm Weight: 43 kg Degree of protection: IP44 Overall dimensions LxWxH in mm: 1070x665x1230... -
Page 10: Assembly Instructions
8. ASSEMBLY INSTRUCTIONS Two people assist in assembly recommended. Step1 Step2 Take out the wheels, wheels Assemble the support wheels and the wheels brackets, the support bracket Take the support wheels and the wheels, 4 washers and 2 pins and the frame as shown. as shown. - Page 11 Step5 Install the screw M8*70 and lock nut M8 (with blue rubber ring inside) as shown to fix the pedal. Step6: Step7 Assemble the pedal Take out the lower drum (2 people shall do it) by holding the 2 sides of the curved bracket and put in place as circled. Step8: Install the tie rod, washer M6, spring washer M5 and 2 nuts M5 in order as shown;...
- Page 12 Step9: Assemble the steering wheel Use 2 sets of screw M8*16 & spring washer M8 & washer M8 as shown to fix. Step10: Assemble the mixer blades and lower durm Install 2 sets of screw M8*16 & washer M8 inside and 2 nut M8 outside as shown to fix the bottom of the mixer blades.
- Page 13 Step12: Assemble the upper and lower drum according to the arrows, tighten the screws with nuts. Step13: Step14: Install 2 sets of screw M8*16 & Tighten the screws and nuts with tools as shown. washer M8 outside and 2 nuts inside to fix the top of the mixer blades.
- Page 14 Step16: Step17: Assemble the motor. Install 2 sets of screw M8*25 & spring washer M8 & washer M8 in the 2 circled holes to fix the motor. Step18: Rotate the drum as shown, install screw M8*55 & spring washer M8 & washer M8 to fix the motor.
- Page 15 Step19: Make sure that the product is well installed. Gear protection assembling process: A. Take out the gear protection and 2 screws. B. Locate the place where the gear protection must be assembled: C. Place the gear protection on its emplacement.
- Page 16 D. Fix the gear protection with the 2 screws.
-
Page 17: Operation Instructions
9. OPERATION INSTRUCTIONS 9.1 DRUM TILTING The spring-loaded tipping wheel with locking lugs provides an easy positive control of the drum which can be locked in the mix, discharge and stored position. The drum is locked in position by lugs on the self-locating tipping wheel which engage into the locking plate on the mixer frame. -
Page 18: Maintenance Instructions
3. Add the required amount of sand into the drum. 4. Pour the required amount of water into the drum. 9.4 EMPTYING Do not turn mixer off while full of load. Emptying the drum with drum rotating. 9.5 CLEANING Never put hands inside the drum with drum rotating. Thoroughly clean the mixer at the end of each day’s operation. -
Page 19: Disposal
repairs carried out, to any of the electric components must be undertaken by a qualified electrician. Parts in a circle should only be fitted by a qualified electrician. WIRING DIAGRAM 11. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of... -
Page 20: Declaration Of Conformity
12. DECLARATION OF CONFORMITY BUIDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following machine: CONCRETE MIXER FBTE120L Serial number: 20210656428-20210659451 Is in conformity with the Directive Machine 2006/42/EC and with the regulation transposing it... -
Page 21: Warranty
13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 22: Product Failure
14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 24 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2021...
