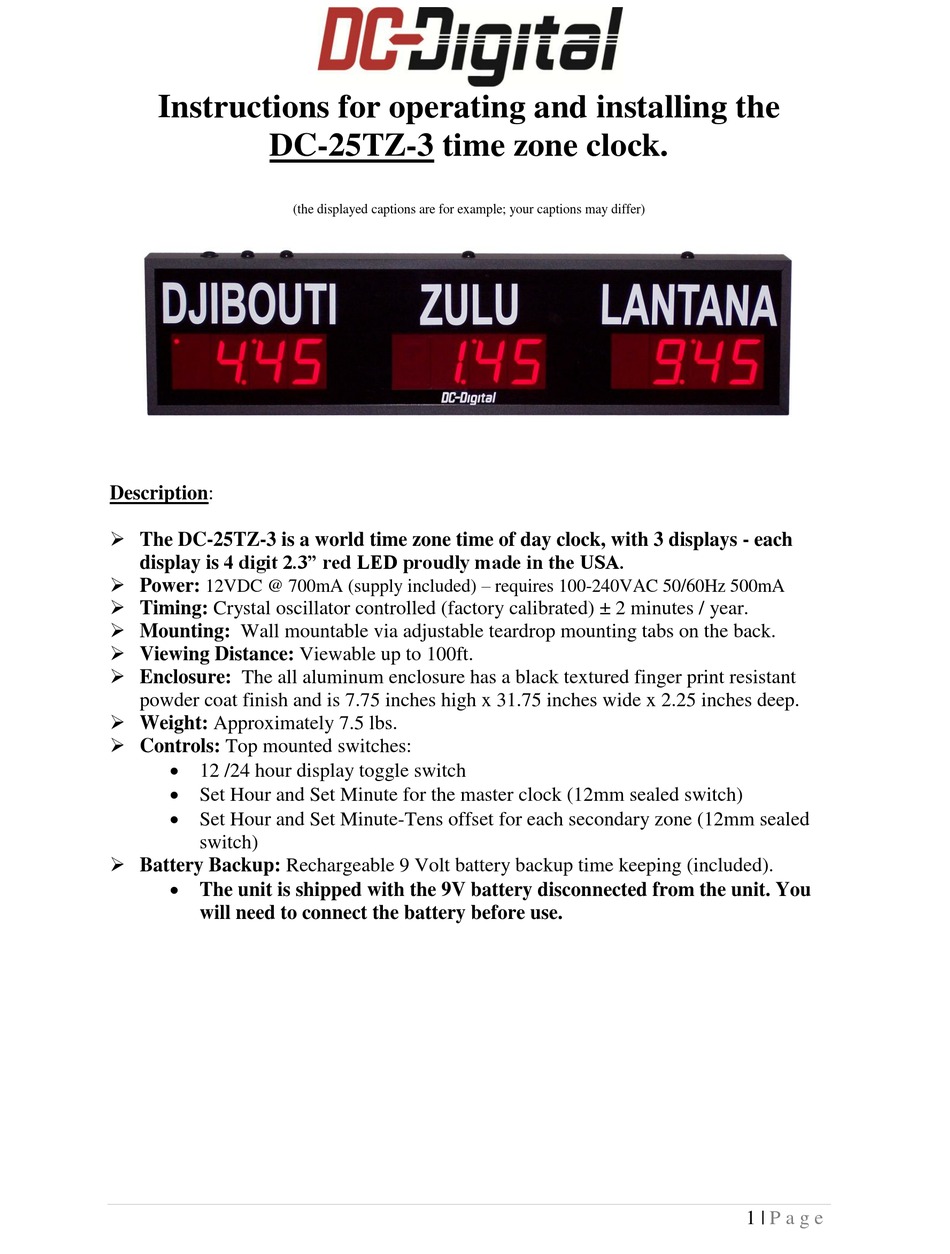

DC-Digital DC-25TZ-3 Instructions For Operating And Installing

Instructions for operating and installing the
DC-25TZ-3 time zone clock.
Description:
 The DC-25TZ-3 is a world time zone time of day clock, with 3 displays - each
display is 4 digit 2.3" red LED proudly made in the USA.
 Power:
12VDC @ 700mA (supply included) – requires 100-240VAC 50/60Hz 500mA
 Timing: Crystal oscillator controlled (factory calibrated) ± 2 minutes / year.
 Mounting: Wall mountable via adjustable teardrop mounting tabs on the back.
 Viewing Distance: Viewable up to 100ft.
 Enclosure: The all aluminum enclosure has a black textured finger print resistant
powder coat finish and is 7.75 inches high x 31.75 inches wide x 2.25 inches deep.
 Weight: Approximately 7.5 lbs.
 Controls: Top mounted switches:
 12 /24 hour display toggle switch
 Set Hour and Set Minute for the master clock (12mm sealed switch)
 Set Hour and Set Minute-Tens offset for each secondary zone (12mm sealed
switch)
 Battery Backup: Rechargeable 9 Volt battery backup time keeping (included).
 The unit is shipped with the 9V battery disconnected from the unit. You
will need to connect the battery before use.
(the displayed captions are for example; your captions may differ)
