Table of Contents
Summary of Contents for Silis Electronique CHAUFFAGE SMS V2
- Page 1 CHAUFFAGE SMS V2...
-
Page 2: Table Of Contents
SUMMARY 1Presentation of the product ............... 3 2Features ....................5 3Installation ....................6 3-1 Inserting the SIM card ....................... 6 3-2 Electric heater with pilot wire(1 zone or 2 zones) ..............7 3-3 Electric heater without pilot wire(1 zone or 2 zones) ..............8 3-4 Boiler (with circulator or control input) .................. -
Page 3: 1Presentation Of The Product

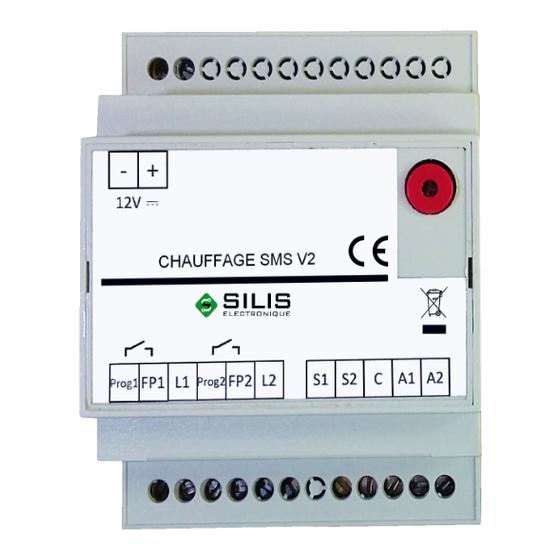

RESENTATION OF THE PRODUCT CHAUFFAGE SMS is designed to bring comfort and economy to the heating of your second home. It acts directly on the ambient temperature without changing the installed heating nor programming. CHAUFFAGE SMS is controlled by your smartphone by sending or receiving SMS. It is not necessary to take internet subscription (no box needed), you just need to install a SIM card in the product. - Page 4 Existing installation Chauffage Electric Heating or Boiler Room thermostat or programmer * Adding this probe is not required This sensor allows you to regulate the temperature of your house to the setpoint chosen (from 6°C, for frost protection for example, to 20°C). If you feel that there is no risk of Temperature sensor* frost in your home, you can do without this probe.
-
Page 5: 2Features
EATURES Depending on your existing heating installation, the table below will help you identify the features offered by the product. Electric heating with pilot wires Electric heating without pilot wires Boiler “PRESENT” mode: Your programmer “PRESENT” mode: Your heating manages the regulation of your radiators “PRESENT”... -
Page 6: 3Installation
NSTALLATION For safety reasons this product must be installed in your electrical panel by an authorized person. Below you will find wiring diagrams for different types of installation. 3-1 I NSERTING THE CARD To install the SIM card, open the Chauffage SMS product box, the SIM connector is on the back of the circuit board. -
Page 7: Electric Heater With Pilot Wire(1 Zone Or 2 Zones)
3-2 E LECTRIC HEATER WITH PILOT WIRE ZONE OR ZONES If you use the 2 heating zones do not forget to set the second output in heating zone (Z2). For this refer to Chapter 4 (Usages). -
Page 8: Electric Heater Without Pilot Wire(1 Zone Or 2 Zones)
3-3 E LECTRIC HEATER WITHOUT PILOT WIRE ZONE OR ZONES If you use the 2 heating zones do not forget to set the second output in heating zone (Z2). For this refer to Chapter 4 (Usages) The addition of the power contactors is imperative to ensure proper system operation. Without these contactors you risk damaging the product and thus losing the warranty. -
Page 9: Boiler (With Circulator Or Control Input)
3-4 B OILER WITH CIRCULATOR OR CONTROL INPUT... -
Page 10: Alarms Inputs
3-5 A LARMS INPUTS You also have the possibility to connect 2 alarm inputs. You will find below how to wire them according to the number of alarms desired. The information delivered by your alarm must be dry contact type (potential free), closed at rest. -
Page 11: Outputs On/Off
3-6 O ON/OFF UTPUTS In the absence of a second heating zone (Z2), it is possible to configure the second output to a switching output (ON / OFF) by sending the SMS command “ON” or “OFF”. This feature allows you to control electrical devices (lighting etc ...). The power must be less than 100W, otherwise it is necessary to install a contactor. -
Page 12: 4Usages
SAGES Chauffage SMS can be downloaded on our website (https://www.silis-electronique.fr/) or on Google Play Store by SMS using the commands below. Commands must be sent in CAPITAL (otherwise you will receive an error message: “Invalid or unauthorized command”) 4-1 S ETTING UP The administrator is the person who receives the alarm messages and manages the addition or deletion of different users. -
Page 13: Administrator Change Procedure And Adding/Deleting Users
Examples: SMS configuration examples Description of the configuration ADMIN: Registering your phone number as administrator ENG: English language ADMIN,ENG,PRESENT,6,ON PRESENT: Present mode 6: temperature setpoint at 6°C ON: Relay output ON ADMIN: Registering your phone number as administrator ... -
Page 14: Description Of Sms Commands
4-3 D SMS C ESCRIPTION OF OMMANDS 4-3-1 C O M M AN DS TO B E SE NT B Y T HE USE R VI A TO T HE PR OD UC T Commands must be sent in CAPITAL (otherwise you will receive an error message: “Invalid or unauthorized command”) SMS to send Examples Description... - Page 15 Switching to the PRESENT mode The regulation is managed by the heating PRESENT PRESENT system or the programmer. Switching to the ECO mode The regulation is managed by the product at the temperature setpoint CHAUFFAGE SMS can also be controlled by a downloadable application on our website (https://www.silis-electronique.fr/) or on the Google Play Store.
-
Page 16: Description Of Sms Received By The User
4-3-2 D SMS R E SC R I PT I O N OF E C E I VE D B Y T HE U SE R Examples Description Config OK Config OK The administrator receives this message after the configuration of device. Admin : +33xxxxxxxxx Admin : +33612345678 If no probe is detected on the input sensor, you receive this alert: “Warning, no probe.”... -
Page 17: Received Alert Messages
4-4 R ECEIVED LERT ESSAGES ALARM 1 You receive this message when the 1 alarm input is activated DETECTED ALARM 1 You receive this message when the 2 alarm input is activated DETECTED DISAPPEARING You receive this message when the 1 alarm input has disappeared ALARM 1 DISAPPEARING... -
Page 18: 6Android Application
NDROID APPLICATION 6-1 I NSTALLATION CHAUFFAGE SMS can also be controlled by a downloadable application on our website (https://www.silis-electronique.fr/) or on the Google Play Store. This application is only available for ANDROID devices. To install the application CHAUFFAGE ECO on your Android device, you have 2 options: Perform download directly via the Google Play Store ... - Page 19 Then; it’s really simple: Download the apk file Go to your downloads and select the apk file Confirm the install by clicking on “Install” You will then find the application icon with the other icons present on your device and can use it normally.
-
Page 20: Description
6-2 D ESCRIPTION Once the application is installed on your device you can proceed to the configuration. When you open the application for the first time you had to choose your language : French or English. Then you had to choose if you will the product as an administrator or user. Configuration for the administrator: Choose a product name (ex : Chauffage ECO) Enter the SIM card phone number you had inserted on the product (ex: 0612345678) - Page 21 If you selected the ECO mode, you also had to enter a temperature setpoint (from 6°C to 20°C) Select the output 2 mode (second heating zone or electrical output ON/OFF) Before validating the configuration you had to press the push button on the front face of the product within the 2 minutes after product the power on.
-
Page 22: 7Change Batteries
Please be sure to update the product settings before making any changes with this icon This action is for to be sure that all parameters you have are synced with the product. HANGE BATTERIES When the batteries are too low, you receive a warning message “Low Batteries”. To replace the batteries, turn off the product ( pay attention to the risks of electric shocks) then open the front of the case. -
Page 23: 8Specifications
- Power supply: The product is supplied by an external 12V DC power supply not included Alimentation ALIMECO 12V from SILIS Electronique recommended) as well as 3 x 1.5V alkaline batteries type LR03 or AAA supplied (batteries required in case of power failure) - Power: 0.5W... -
Page 24: 9Warranty
ARRANTY The warranty is valid for 2 years from the purchase date of the product. IS NOT COVERED: - Damage engaging the responsibility of a third party or resulting from an intentional act or fraudulent. - Damage resulting from negligence, energy use, employment or installations not in accordance with the manufacturer's facilities.
