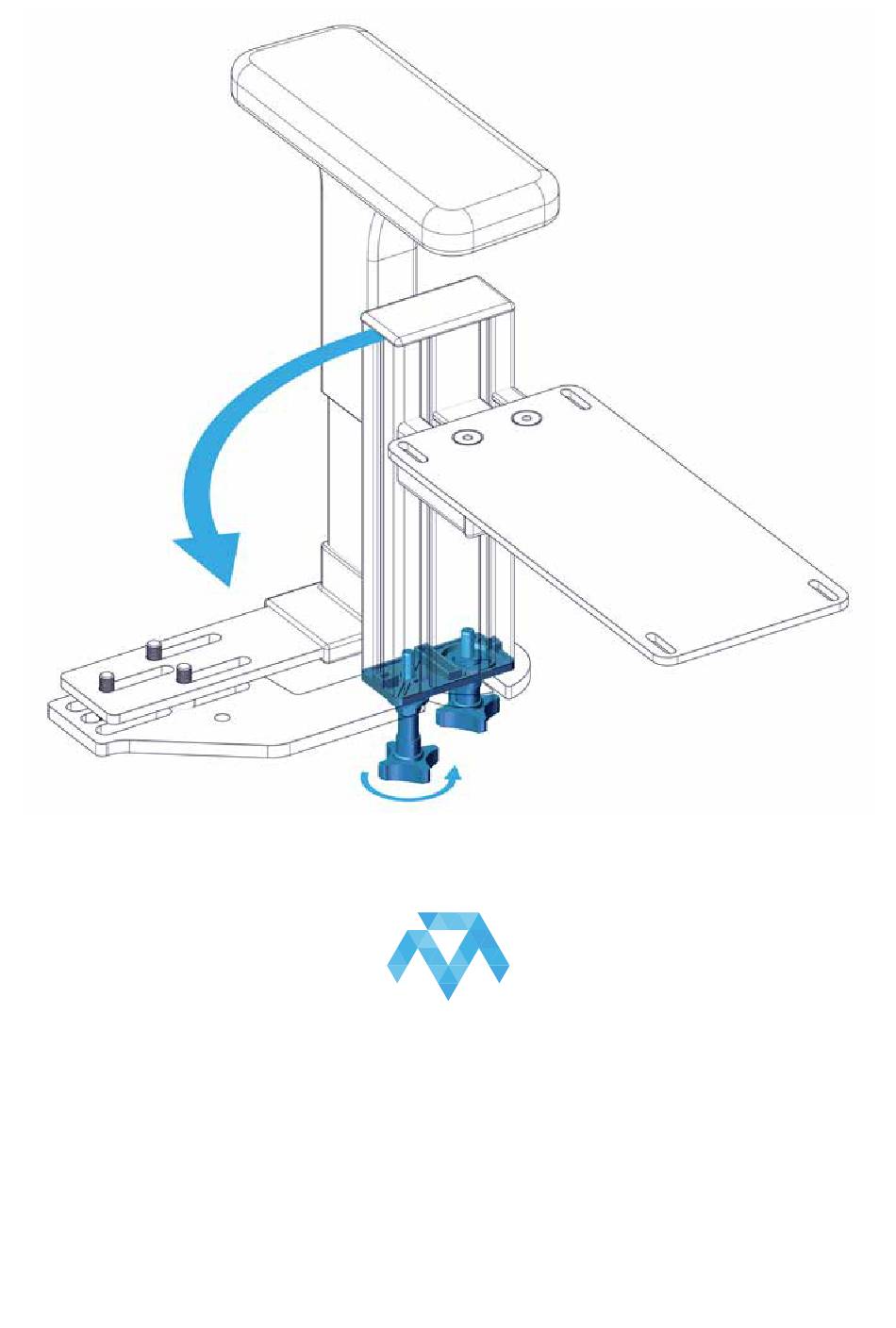

- Page 1 CHAIR MOUNT SWIVEL ADAPTER Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Page 2 PARTS [dimensions in mm / different scales] No extra or spare parts listed! MTSIM CHAIR MOUNT SWIVEL ADAPTER INSTRUCTION MANUAL...
- Page 3 CHAIR MOUNT SWIVEL ADAPTER ASSEMBLY detach the Chair Mount MTSIM CHAIR MOUNT SWIVEL ADAPTER INSTRUCTION MANUAL...
- Page 4 Ø24 bearing star knob star knob MTSIM CHAIR MOUNT SWIVEL ADAPTER INSTRUCTION MANUAL...
- Page 5 SWIVEL keep tighten loosen swivel fasten in any position MTSIM CHAIR MOUNT SWIVEL ADAPTER INSTRUCTION MANUAL...
- Page 6 QUICK RELEASE swivel a little loose both star knobs take off MTSIM CHAIR MOUNT SWIVEL ADAPTER INSTRUCTION MANUAL...
- Page 7 18-03-2022...
- Page 8 WARNING NOTICES CAUTION! Do not clamp your fingers while attaching the chair mount. CAUTION! Check before usage if all screws are tightened. CAUTION! Check before usage that the mounting plate is screwed on tight after making height adjustments. DANGER: Contains small parts not suitable for children under 3 years. Only suitable for children over 12 years and adults.
