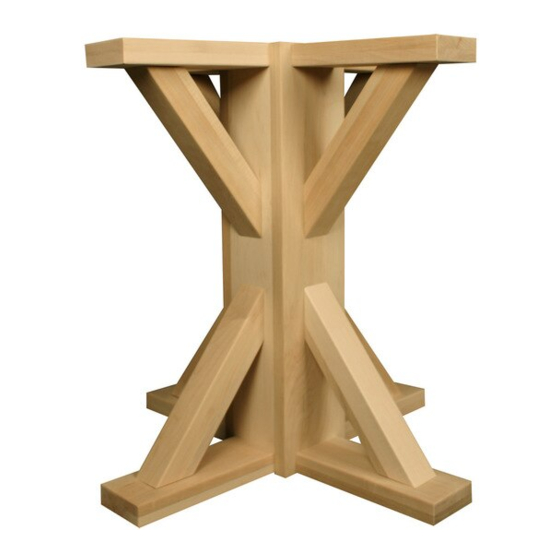

Osborne Journeyman 1186 Assembling Instructions

In this box:


One pedestal center with pre-drilled holes (see picture part A)

Four pedestal feet with bolts, nuts, and washers on one end (see picture part B)

Four pedestal arms with bolts, nuts, and washers on one end (see picture part C)

Eight cross-brace pieces with bolts, nuts, and washers on both ends (see picture part D)

You will need:


½" Wrench, or Ratcheting Socket Wrench

Screwdriver (flathead or Phillips)

Ruler

Instructions:

1. Locate the cross-brace pieces. The angles on the ends are different. The flat on one end is 2 7/8" long and the
flat on the other end is 3 ½" long.
2. Line up the cross-brace pieces with all of the 2 7/8" sides closest to you. This will be the side to insert into the
feet and arms.
3. Locate the pedestal feet. The feet have the black plastic levelers installed on the bottom.
4. Loosely attach one cross-brace piece to one foot piece. Make sure the 2 7/8" long flat is against the foot. When
installed, the hanger bolts on the foot piece and on the cross-brace piece will point in the same direction.
5. Repeat with the other three feet pieces.
Thank you very much for choosing Osborne for your table project.

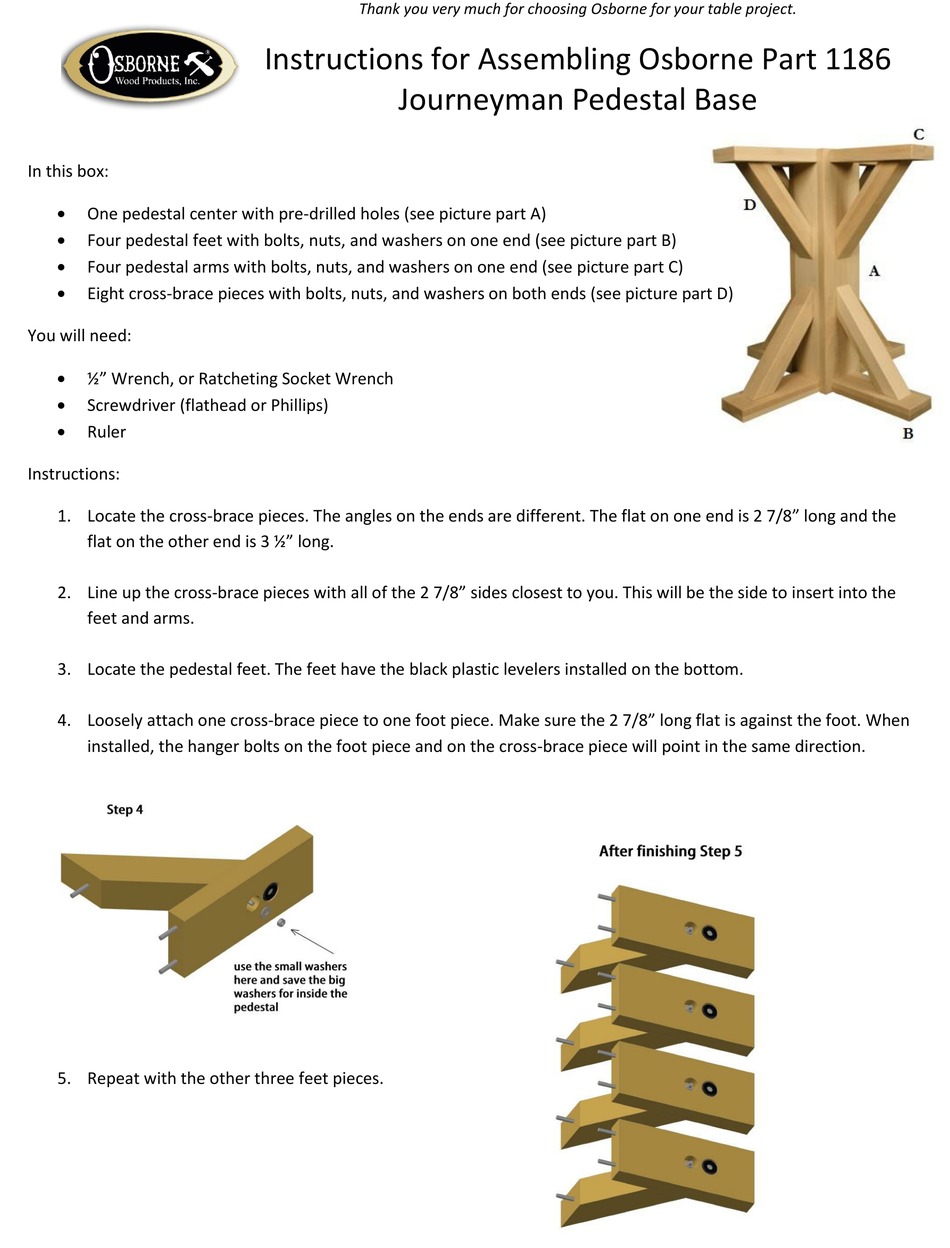

Instructions for Assembling Osborne Part 1186
Journeyman Pedestal Base
