CM 5000D
Conventional and
Flip to Pages 6-13 for
Wiring Diagrams 4-11.
PRO-TECH INC.
1256 N. Barkley Rd., Statesville, NC 28677
Phone (704) 872-6227 - Fax (980) 223-2872
www.pro-techinc.com - Email: sales@pro-techinc.com
Copyright by Pro-Tech Inc. 2004. All rights reserved
Tunnel
IN A HURRY?
Instructions
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Pro-Tech CM 5000D

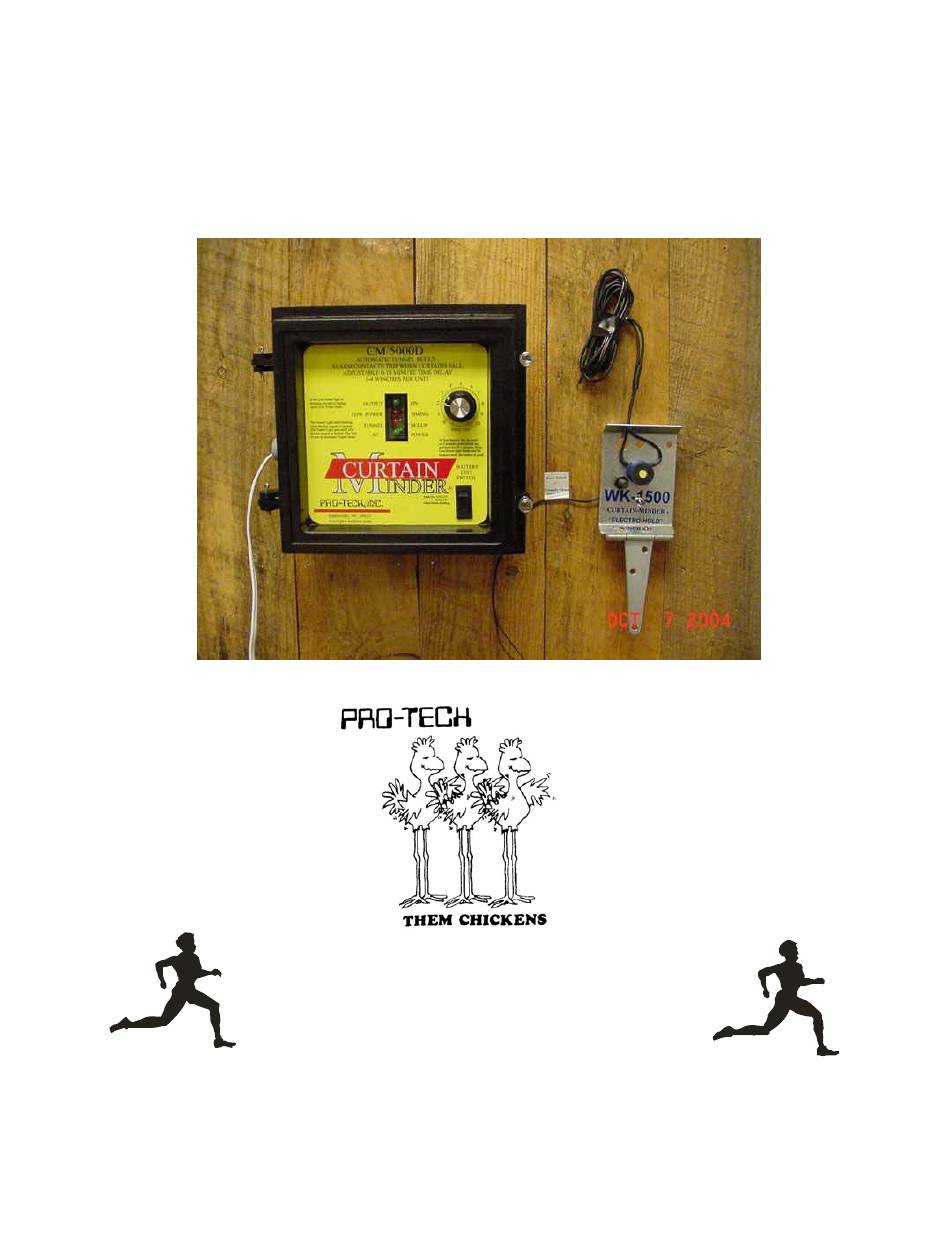

- Page 1 Instructions IN A HURRY? Flip to Pages 6-13 for Wiring Diagrams 4-11. PRO-TECH INC. 1256 N. Barkley Rd., Statesville, NC 28677 Phone (704) 872-6227 - Fax (980) 223-2872 www.pro-techinc.com - Email: sales@pro-techinc.com Copyright by Pro-Tech Inc. 2004. All rights reserved...
- Page 2 3- Mount the CM 5000D Curtain-Minder on the wall so the white wires will reach the transformer. Connect the white lamp cord from the 24 VAC terminals of the Curtain-Minder to the screw terminals on the transformer.
- Page 3 Being near the winch can be very hazardous, so STAY CLEAR! 7- The CM 5000D has a relay with a dry contact that can be tied to your alarm to tell you when the unit has detected low power. There are three terminals at the top of the board (see Figure 3) for this output.
- Page 4 12- An extra safety feature is also on the board. If for some reason, the curtains have not dropped in the amount of time you have set on the CM 5000D, after 10 minutes the circuit dies and the magnets release.
- Page 5 14- The CM 5000D Curtain-Minder is the most fail-safe Curtain Release device available. The CM 5000D will release curtain winches upon power outages and low voltages. If the Curtain- Minder releases the curtain winches upon low voltage, the LOW POWER light will be blinking or on if, the unit has timed out.
- Page 6 Connections for a CM 5010D to be used as a stand alone alarm system OPE R . OPE R . T RIP zones OU T R ET UR N Normally Open DD-3E Contacts To House DIGITAL DIALER Trip Siren Phone Can Monitor High/Low Temp, Water Pressure, or 6-16 VDC...
- Page 9 Figure 3 You can monitor low AC or no AC power by wiring your CM 5000D into your alarm system. Connect the alarm contacts labeled COM and either the N/C or N/O terminal to your alarm system. The N/C is...
-
Page 14: Limited Warranty
Pro-Tech, Inc. will repair or replace this product if it proves to be defective in material or workmanship.
Need help?
Do you have a question about the CM 5000D and is the answer not in the manual?
Questions and answers
