Summary of Contents for ritm RDD2

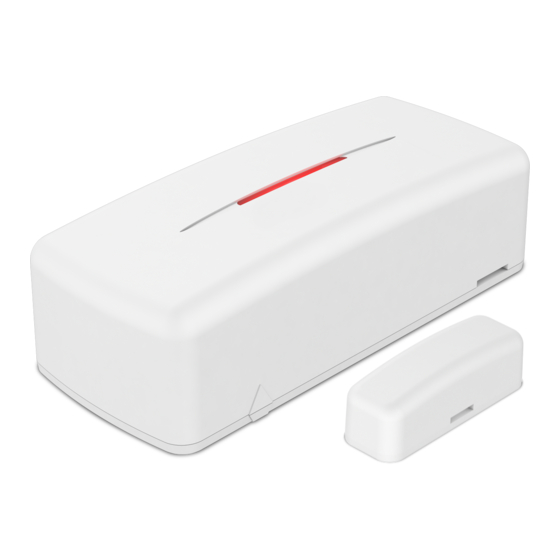

- Page 1 Magnetic wireless sensor RDD2 Data sheet Device identification number...
- Page 2 1. General Information The RDD2 radio channel magnetic contact sensor (hereinafter referred to as the device) is designed to be used as an opening sensor (reed relay). The device generates alarm signals for sensors, additional ribbon cables, enclosure break-in, and transmits them to the control panel.
- Page 3 4. Technical Specifications Parameter Value Communication channels band, MHz 433.075–434.775 Number of communication channels Maximum distance for strong signal, line-of-sight, m Transmitter radiated power, mW not exceeding 10 Reed relay gap (in between magnet), not exceeding, mm Monitoring period of device operation in radio system, min Enclosure break-in tamper Surface tear-off tamper Normal state setup for additional wire loop...
- Page 4 Jumpers should be installed with the battery removed. JMP3 Designation of jumpers is described in Paragraph 6. Red and green LEDs are located on the back of the RDD2 board. The operating modes of these LEDs are described in Paragraphs 7. 6. Designation of Jumpers To change a device’s operating mode, remove its battery, install (remove) necessary...
- Page 5 Configuration Mode Red + Green Always on Device ready to be connected to PC Blinks 5 times Getting ready for configuration reset Configuration reset to factory settings Blinks faster than once Device not added to radio system per second Blinks 5 times after 3 s Faulty device 8.
- Page 6 Green The battery is tested each time the device cover is closed! 8.5. If the red indicator emits short flashes twice in 5 seconds (not to be confused with the battery test mode), this means the battery is depleted and needs to be replaced.
- Page 7 Send test message Green Got the answer 8.9. If an additional alarm wire loop is used, insert the ribbon cable and connect it to the XT1. 8.10. Put corresponding wires in slots and secure the enclosure base on the surface. An enclosure tear-off tamper is installed by default.
- Page 8 10. Replacing Battery If necessary, clean the bonding pads and replace the battery. When replacing a battery, close the battery contacts for 2 seconds and then install the new battery. 11. Transportation and Storage The device should be transported in packaging in closed vehicles. Storage premises should be free of current-conducting dust, acid and alkaline fumes, corrosive gases and gases harmful to insulation.
