1. Dear Music Lover,

Thank you for purchasing mhi Evidence Tower, a high performance and high quality speaker system.
The unique features of this product provide clear imaging and smooth high definition sound. Each system
incorporates wide range high sensitivity woofers (up to 10k Hz), a pure aluminum true ribbon tweeter (up to
120k Hz) and AAC (Accurate Alignment Calibration) spike bolts to produce true-to-life and accurate sound.
We are confident that once you listen to these systems you will hear their strengths. The sound is our Evidence.

2. Important Symbols

Wrong
Do not

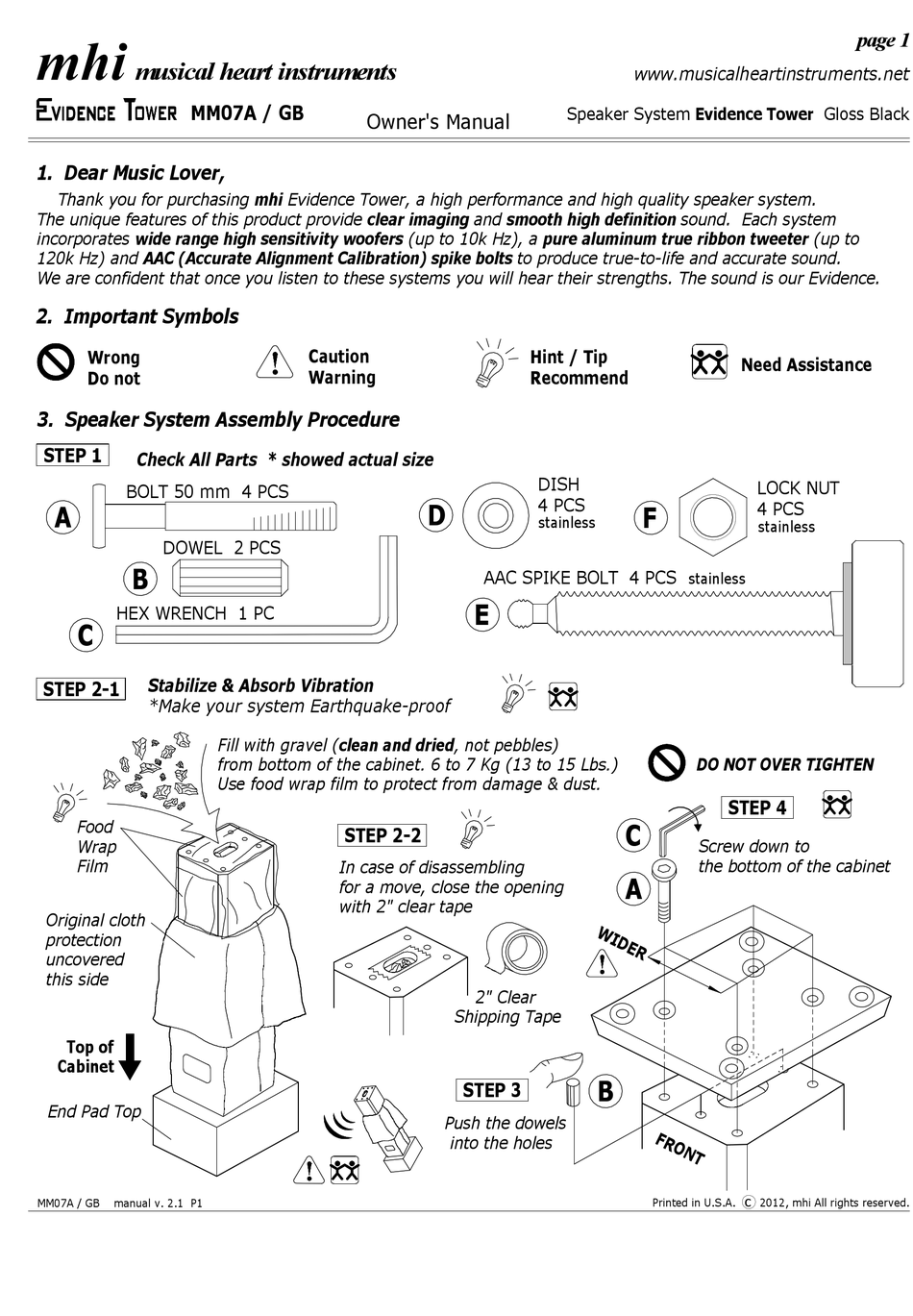

3. Speaker System Assembly Procedure

STEP 1
Check All Parts * showed actual size
BOLT 50 mm 4 PCS
A
DOWEL 2 PCS
B
HEX WRENCH 1 PC
C
Stabilize & Absorb Vibration
STEP 2-1
*Make your system Earthquake-proof
Food
Wrap
Film
Original cloth
protection
uncovered
this side
Top of
Cabinet
End Pad Top
MM07A / GB manual v. 2.1 P1
Owner's Manual
Caution
Warning
Fill with gravel (clean and dried, not pebbles)
from bottom of the cabinet. 6 to 7 Kg (13 to 15 Lbs.)
Use food wrap film to protect from damage & dust.
STEP 2-2
In case of disassembling
for a move, close the opening
with 2" clear tape

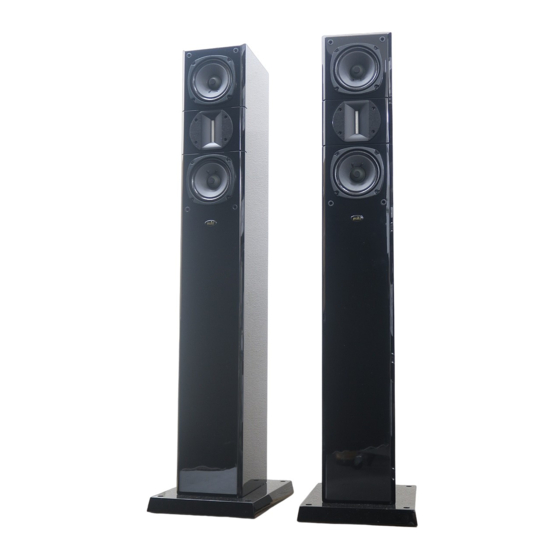

Speaker System Evidence Tower Gloss Black
Hint / Tip
Recommend
DISH
4 PCS
D
stainless
AAC SPIKE BOLT 4 PCS
E
2" Clear
Shipping Tape
B
STEP 3
Push the dowels
into the holes
www.musicalheartinstruments.net
Need Assistance
LOCK NUT
4 PCS
F
stainless
stainless
DO NOT OVER TIGHTEN
STEP 4
C
Screw down to
the bottom of the cabinet
A
c
