Acoustic Imaging Camera

Users Manual

Version 5

SDT International sa-nv • Bd de l'Humanité 415 • B-1190 Brussels (Belgium) • Tel: +32(0)2 332 32 25 • email: info@sdtultrasound.com

SDT North America • 7677 County Road 2, Cobourg, ON • Phone: 1-800-667-5325 | 1-905-377-1313 • email: hearmore@sdtultrasound.com

www.sonavu.com

Table of Contents

Need help?

Do you have a question about the SonaVu and is the answer not in the manual?

Questions and answers

Summary of Contents for SDT SonaVu

Page 1 All Rights Reserved SDT International sa-nv • Bd de l’Humanité 415 • B-1190 Brussels (Belgium) • Tel: +32(0)2 332 32 25 • email: info@sdtultrasound.com SDT North America • 7677 County Road 2, Cobourg, ON • Phone: 1-800-667-5325 | 1-905-377-1313 • email: hearmore@sdtultrasound.com...
Page 2: Table Of Contents
Insights for SonaVu ....................... 27 Browser-Based Reporting Application ....................27 Additional Settings ........................28 Software update ............................28 *SonaVu™ Software Update Procedure....................28 Product Warranty ........................29 Standard Warranty ............................29 Extended Warranty ............................. 29 Voiding the Warranty ..........................29 Product Maintenance .......................
Page 3: Precautions And Safety Statement
This is both a personnel safety and an instrument care issue. • Your SonaVu™ should only be stored in a cool, dry area. Avoid storage rooms that are hot, humid, dirty, dusty, or in direct sunlight. Also avoid storing your SonaVu™ in rooms where other chemicals are kept.
Page 4: Welcome Message
To get the most from your investment in SonaVu™ I urge you to read this manual in its entirety. It contains many tips for the safe, trouble-free operation and long-life of your product. Additionally, visit our website (www.sonavu.com) often for new content including case studies, operational guidance, and news releases...
Page 5: General Overview

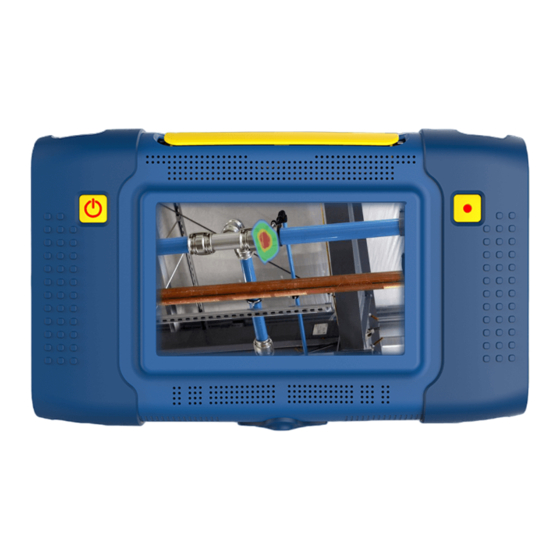

SonaVu™, is a multi-frequency acoustic imaging camera that takes airborne ultrasound inspection to a new level. Equipped with 112 highly sensitive sonic sensors and a precision optical camera, SonaVu™ brings the power of super-human hearing to focus on its vibrant, color touch screen. It unlocks limitless applications for asset reliability, energy conservation, and safety including compressed air leak management, electrical asset reliability, and much more.
Page 6: Product Configuration
6 Product Configuration SonaVu™ is available in two configurations. SonaVu™ BASE and SonaVu™ PRO: SonaVu™ BASE Article Code Description FS.SVU.STN.001 SDT SonaVu™ Base Kit SonaVu™ Acoustic Imaging Camera w/ Hand Strap and FU.SVU.001-01 Rubber Grip FU.SVU.PWR.001 SonaVu™ Power Supply w/ Adapters FU.SVU.CLN.001...
Page 7: Sonavu™ Pro
7 SonaVu™ PRO Article Code Description FS.SVU.PRO.001 SDT SonaVu™ Pro Kit SonaVu™ Acoustic Imaging Camera w/ Hand Strap and FU.SVU.001-01 Rubber Grip FU.SVU.PWR.001 SonaVu™ Power Supply w/ Adapters FU.SVU.CLN.001 SonaVu™ Cleaning Kit FU.SVU.EXPC.001 SonaVu™ External Battery Cable SonaVu™ External Battery Pack w/ Charger & USB-C FU.SVU.EXBP.001...
Page 8: Hardware Features And Configuration
8 Hardware Features and Configuration SonaVu™ was designed with efficiency, ergonomics and simplicity as the top priorities. The table below describes the main features of the instrument and illustrates where they are located. Name Description Quantity Microphone/Sensor Ultrasound sensor array...
Page 9: Operation
Connection Port Overview All connection ports are located on the left side of the device under the yellow rubber SonaVu™ protective cover. Open the cover from the top while the screen is facing you. The side cover is hinged at the bottom.
Page 10: Status Indicator Lights
Status Indicator Lights Power Status Indicator (1) After powering ON the SonaVu™, a Green LED indicator will light on the top left corner of the casing. Charging Status Indicator (2) When the power adapter is connected the SonaVu™ will automatically start charging the internal battery and a Red LED indicator will light on the top right corner.
Page 11: External Interface Connections
The SonaVu™ can be connected to an external monitor with an HDMI cable. ② USB Port Image and video files stored in SonaVu™ can be transferred to a USB drive (FAT 32 format) via the USB port. To copy data*: Connect the USB memory device to the USB port located on the left.
Page 12: Bluetooth Setup
Make sure Bluetooth is enabled (the switch on the top right is on): ③ Press the Scan button on the SonaVu™ and the Pair button on your Bluetooth device. Look for the Bluetooth device to show under the New Devices section: ④...
Page 13: Disconnecting A Paired Device
Removing a Paired Device Removing a paired device makes the SonaVu™ forget the connection to the selected Bluetooth device. Use this option if you’ve had troubles pairing the device and need to re-connect the device.
Page 14: Using The Power Button
14 Using the Power Button Press the power button on the left side and hold for 2 seconds to power the SonaVu™ on. The green LED power status indicator on the top left side of the device will light.
Page 15: Using The Light Feature
page 15 ① Save Image A short press of the Record button saves the screen you are measuring as an image (JPG format). The saved images can be viewed by clicking the library icon on the right side of the main screen.
Page 16: Sonavu™ Firmware
16 SonaVu™ Firmware Main Screen (User Interface) The main screen for the SonaVu™ software is shown below. Users can set and view various measurements parameters on the main screen without having to connect to a PC. Internal Trigger Measurement...
Page 17: Icon Functions
page 17 Icon Functions At the top left of the main screen a total of four icons are shown, each icon's function, definition, and description are shown in the table below. Icon Function Description Language/Time zone Displays the current date/time. Check and Setting To change the language or the Time Zone press and hold the icon:...
Page 18 (up to 3 m). Internal Memory Displays the amount memory available on the Status Indicator SonaVu™ The internal memory capacity of SonaVu™ is 53GB. The status bar has three sections: Green: less than 98% used Orange: more than 98% used...
Page 19 page 19 Folder Settings This icon (object) shows the current folder location. You can also click and hold the icon (object) to create and delete new folder, to select a folder. Tap this icon and scroll through it. You can create folder names in any language.
Page 20 USB Memory Device is not connected Transfer in progress Transfer complete Library Press this icon to check or delete a measurement file (Check/Delete (image/video) from the SonaVu™ internal memory. measurement file) Press 'Images' or 'Videos' to view the measurement files. Version 5...
Page 21 page 21 Actions: ① Select a single file from the list ② Press ‘Delete’ (bottom right) to delete ③ Press - transfer the file to a USB drive Press 'Quit' - return to the main screen Press 'Delete All' - delete all files. ④...
Page 22 Icon Function Description Battery Displays the current battery charge level. Fully charged, the SonaVu™ Status Check operates for approximately four hours. Battery Capacity 2 ~ 9 % Battery Capacity 10 ~ 29 % Battery Capacity 30 ~ 72 %...
Page 23 page 23 The Operating States are as follows: Green Normal Orange Dangerous Abnormal Ex) All 112 sensors are normal Ex) Sensors 42,47,63,69,80 are blocked by foreign substances. See the section on ‘Cleaning the Sensor Array’ for details on how to clean the debris.
Page 24: Measurement Mode
page 24 Hide Icon Toggle this to hide/display the four parameters on the right side- 'Threshold', 'Image Range', 'USB Transfer' and 'Library'. In custom mode, the frequency setting sliders will be hidden too. Measurement Mode On the left side of the main screen, select the measurement mode: •...
Page 25: Signal Power Setting
page 25 Signal Power Setting The Signal Power settings control the display of the measured signal in a rainbow- shaped color scheme. Parameters include the Threshold (Display Reference Value), Image Range, and Image Average. The Signal Power visually shows the amount of pressure produced in the direction of measurement on the camera, in the selected mode/band-pass frequency.
Page 26: Image Average
page 26 Image Average Image Average setting adjusts the response time of the image range. FAST - The Image Range is SLOW - The Image Range is calculated every 3 frames captured calculated every 10 frames captured. (default setting) The SLOW setting makes visualizing short bursts easier to see. The image takes longer to dissipate on the screen.
Page 27: Insights For Sonavu Tm
SonaVu™ Acoustic Imaging Camera are uploaded to SonaVu InSights™ Report Library for seamless reporting and sharing. The SonaVu InSights™ Image and Report Library is a secure place to store, organize, analyze, and prioritize your findings with your SonaVu™ Acoustic Imaging Camera.
Page 28: Additional Settings
Additional Settings Software update Notifications for updated software files will be sent via E-mail and will be made available on the SonaVu™ support website. To update to the latest software in SonaVu™, follow the instructions below. DO NOT turn off the SonaVu™...
Page 29: Product Warranty
29 Product Warranty Standard Warranty Included in the purchase of your SonaVu™ is a two-year, standard warranty from the date the customer receives the product. Extended Warranty Extended Warranty is available after the standard warranty period has expired. Please contact SDT for details and pricing.
Page 30: Product Maintenance
Cleaning the Sensor Array There are 112 microphone sensors in front of SonaVu™. If the microphone is dirty or clogged with debris, etc., it can be cleaned at a distance of approximately 30cm (12 in) under low air pressure from the compressed air injector (squeeze bulb) included in your kit.
Page 31: Product Specification
page 31 Product Specification Microphone Array Item Specification Microphone Array Microphone Type Digital MEMS Number of Microphones 112 EA Measurement Frequency Range 1 k ~ 47.5 kHz Microphone Sensitivity -41 dBFS Signal to Noise Ratio (SNR) 66 dB(A) Camera View Angle Horizontal 66°, Vertical 54°...
Page 32: Product Certifications
113 °F / 45 °C. Do not attempt to remove or remove the battery. If there is a problem with the battery, contact Technical Support at SDT. ※CAUTION: If the battery is not replaced with the correct type, there is a risk of the battery exploding.
Page 33 33 How to Get Support If for any reason you require assistance with your SonaVu™ equipment, contact: For Support in Europe SDT International Bd. de L'Humanité 415 B-1190, Brussels Belgium Phone +32 (0) 2 332 32 25 Email: info@sdtultrasound.com For Support anywhere else in the world SDT North America, Inc.
Page 34 34 CGI 2022/03/21 Battery Info CGI 2022/02/09 SonaVu InSights™ CGI 2021/05/07 Bluetooth + software update CMA 2021/04/26 Revised version/Product certifications CGI 2020/09/23 Original version Ver. Editor Nature of modification Verified Version 5...
