INVISILIGHT NIU MODULE ASSEMBLY INSTRUCTIONS

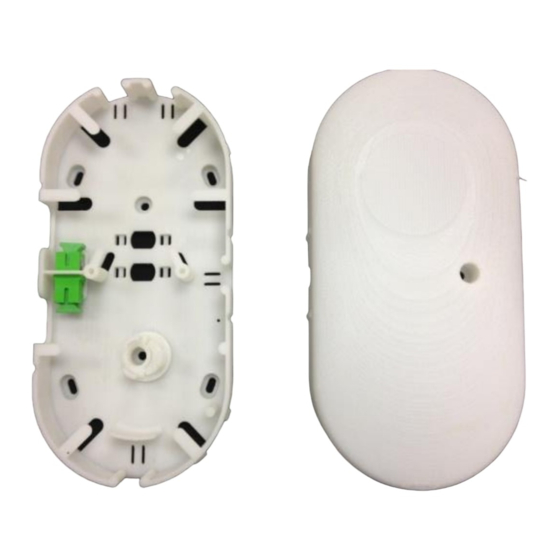

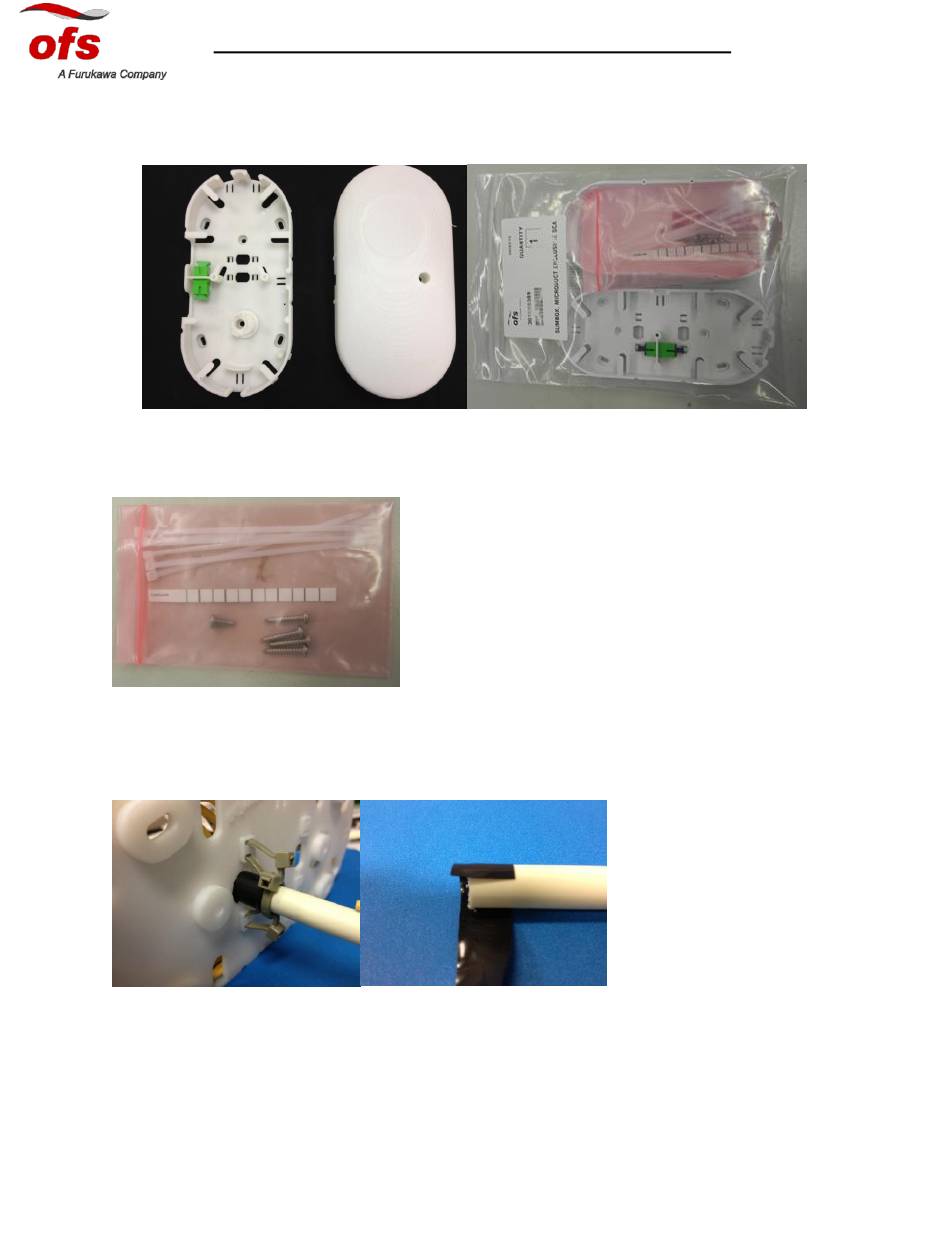

This document describes the assembly instructions for the InvisiLight NIU Module. The enclosure is
comprised of multiple components including the cover, base, adapter, six cable ties, and anchor hardware.
Instructions
1. Open the package and find the wood screws from the accessories package.
2. Place the base on the wall where you want to mount the enclosure and secure the base. If
microduct is entering the module then it will have to be attached prior to mounting the enclosure.
3. Tape the duct so that some of the tape is past the edge of the duct. Attach the duct into one of the
six ports and secure with the cable ties.
4. Secure the base to the wall using the wood screws and anchors, attaching at a secure point to the
wood joints..
5. Complete the blown fiber process in the microduct and secure the connector into the adapter.
M13AK0007
9/30/2013
Advertisement
Table of Contents
Summary of Contents for Furukawa Ofs INVISILIGHT M13AK0007
- Page 1 INVISILIGHT NIU MODULE ASSEMBLY INSTRUCTIONS M13AK0007 9/30/2013 This document describes the assembly instructions for the InvisiLight NIU Module. The enclosure is comprised of multiple components including the cover, base, adapter, six cable ties, and anchor hardware. Instructions 1. Open the package and find the wood screws from the accessories package. 2.
- Page 2 INVISILIGHT NIU MODULE ASSEMBLY INSTRUCTIONS M13AK0007 9/30/2013 6. Remove the tabs on the side ports where the microduct or InvisiLight fiber enters the base through the port. 7. The fiber idenfication should be filled in on the label and secured to the inside cover. 8.
