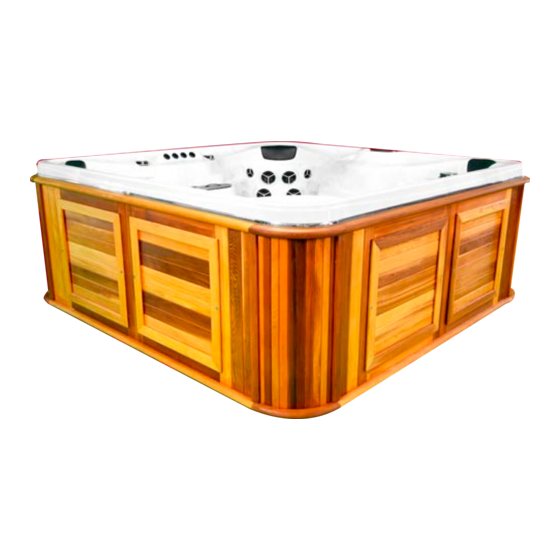

Arctic Custom Series Startup Manual

Hide thumbs

page of 14

/ 14
Bookmarks

Quick Links

Download this manual

Start Up Guide - Custom Series

*include upgraded Classic Series

CUSTOM SERIES

Arctic Fox

Cub

Yukon

Frontier

Kodiak

Klondiker

Tundra

Summit

Summit XL

Ocean -AWP

Okanagan - AWP

UPGRADED CLASSIC SERIES

McKinley

Mustang

Totem

Eagle

Timberwolf

Hudson - AWP

Kingﬁsher - AWP

Athabascan - AWP

Wolverine - AWP

The purpose of this guide is to provide you with a quick setup.

For more detailed instructions on setting filtration cycles, on/off

features etc,

Additional Custom Series information can be

found on pages 28 - 36 of the owner's manual.

Arctic Hot Tubs 910 Dundas St. W, Whitby, ON ● 172 Chrislea Ave, Vaughan, ON ●

322 Fairall St, Ajax, ON

Need help?

Do you have a question about the Custom Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Arctic Custom Series

Page 1 For more detailed instructions on setting filtration cycles, on/off features etc, Additional Custom Series information can be found on pages 28 - 36 of the owner's manual. Arctic Hot Tubs 910 Dundas St. W, Whitby, ON ● 172 Chrislea Ave, Vaughan, ON ● 322 Fairall St, Ajax, ON...
Page 2 Installing Filters - Silver Sentinel Filters Turning the Power On Completing Start-up Home Connect Home Connect continued SpaBoy® & Onzen™ Start Up SpaBoy® & Onzen™ Maintenance Bromine Start Up and Maintenance Guide Chlorine Start Up and Maintenance Guide Cool stuff my Arctic spa can do...
Page 3 Step 1: Filling your new Arctic Spa Fill your spa with a garden hose put the hose in your filter canister. (img 1.1) Once the water level has reached the bottom of the headrest, turn off the water and remove the hose from the spa.(img 1.2) (img 1.1)
Page 4 Preparing SpaBoy® Probe - Plug installed If the plug has been installed (img 2.3) there is a possibility that the SpaBoy® probe was not installed upon delivery due to cold weather or the spa not being filled and turned on for an extended period of time. (img 2.3) To verify the probe has been installed Please open the cabinet door behind the probe housing to confirm you can...
Page 5 Step 3: Installing the ﬁlters - Progessive Filters Your new Custom Series Arctic Spa comes equipped with 2 new Progressive Filters. One filter is a High Flow and the other is a Standard Flow (img 3.1). To determine which side the filters belong locate you model on the chart below.
Page 6 Step 3: Installing the ﬁlters - Silver Sentinel Filters ** upgraded Classic Series Your new Arctic Spa comes equipped with 3 different types of filter media. A Silver Sentinel thread in filter (img 3.1s), a rescue bag (img 3.2s) and a short pleated thread in filter (img 3.3s) ** NOTE - Timberwolf will only come with Silver Sentinel...
Page 7: Step 4: Power On
Step 4: Power ON Now that your spa is full, filters are in place, ORP probe is uncovered and the protective grate is installed (SpaBoy® option only), you are ready to turn the power on to your spa. Ensure your breaker inside your main panel is turned on. Locate your outside breaker box (img 4.1) and flip to the on position.
Page 8: Step 5: Completing Start-Up
Each custom series spa is accessible via a website www.myarcticspa.com or through the Arctic Spas app. In order to access your spas functions via your device, the spa must first be connected to your home network. Your new spa does come equipped with WIFI but as previously indicated in your signed appendix, WIFI may not work in your area or specific installation.
Page 9 You will need a login to access your spa remotely when your device is not connected to the same network as your spa. Be sure to select Arctic Hot Tubs Whitby/Vaughan as your preferred dealer.
Page 10 Recommended Salt Dosage Salt Dosage Summit XL 2033 L 4.5 kg 1041 L 2.3 kg Summit 1363 L 3.0 kg Arctic Fox 787 L 1.7 kg Tundra 1556 L 3.4 kg 5100 L 11.2 kg Kodiak 1295 L 2.8 kg...
Page 11 To lower pH, add 1 cap of Salt Water Balance in 15 minute increments, checking between each dose either through ONSPA (Arctic Spas app), the topside control or by logging on myarcticspa.com through a web browser NOTE: AWP add 2 caps at a time.
Page 12 Bromine Start Up & Maintenance Before you attempt to balance the water, the water temperature must first reach a minimum temperature of 85°F (29°C) Step 1: Establish Correct Water Chemistry Add the initial dose of ULTRA SPA (200 gm/1000L). Turn pumps on wait 30 mins Add the initial dose of BEST DEFENCE (2 oz/ 100L).
Page 13 Chlorine Start Up & Maintenance Before you attempt to balance the water, the water temperature must first reach a minimum temperature of 85°F (29°C) Step 1: Establish Correct Water Chemistry Add the initial dose of ULTRA SPA (200 gm/1000L). Turn pumps on wait 30 mins Add the initial dose of BEST DEFENCE (2 oz/ 100L).
Page 14 Access all your spas features using you to monitor and control your hot tub from anywhere in the world using the Arctic Spa App on your phone or via the myarcticspa.com web portal. OnSpa®, no problem. All of your spa’s important Your spa isn’t connected to...
