BE AM Series Operations & Parts Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Operations & Parts Manual

Purchase Date

Dealer

BE-AMxx

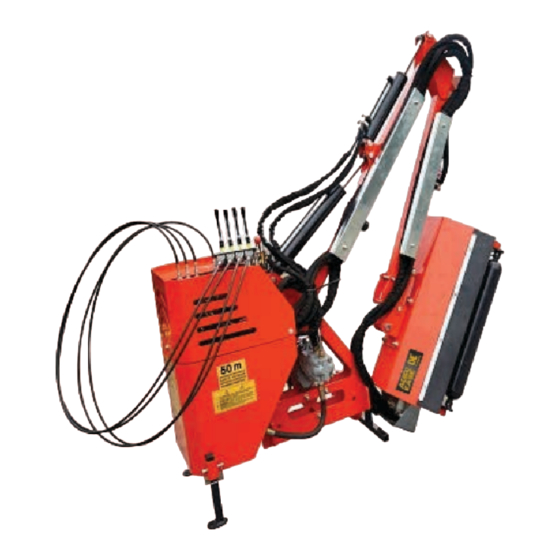

Hedge Cutter

For Models:

• BE-AM60

• BE-AM80

• BE-AM100

Model No.

Serial No.

Table of Contents

Need help?

Do you have a question about the AM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BE AM Series

Page 1 BE-AMxx Hedge Cutter Operations & Parts Manual For Models: • BE-AM60 • BE-AM80 • BE-AM100 Purchase Date Model No. Serial No. Dealer...
Page 2 At equivalent daily noise exposure levels of between 85 and 90 DB, ear protection is recommended, it should be used if any window is left open. Record the serial number of your machine on this page and always quote this number when ordering spares.
Page 3: General Information
GENERAL INFORMATION BE-AMxx Read this manual bore ﬁtting or operating the machine. Whenever any doubt exists contact your local dealer. Use only BE Genuine spare parts on BE equipment and machines. DEFINITIONS The following deﬁnitions apply throughout this manual: WARNING! An operating procedure, technique, etc., which can result in personal injury or...
Page 4: Safety Information
• Use clear suitably sized warning signs to alert others to the nature of the machine working within that area. Signs should be placed at both ends of the work site. (It is recommended that signs used are of a size and type speciﬁed by the Department of Transport and positioned in accordance with their and the Local...
Page 5 • Never carry out maintenance of a machine or tractor whilst the engine is running. The engine should be switched o , the key removed and pocketed. • Never leave a machine unattended in a raised position - it should be lowered to the ground in a safe position on a level ﬁrm site.
Page 6 INITIAL ATTACHMENT TO TRACTOR BE-AMxx The machine will be delivered in a partially dismantled condition, secured with transport strap and banding. • Chose a ﬁrm level site. • Remove the transport strap, banding straps and loose items. • Check hydraulic ﬂuid is at recommended level.
Page 7 The axle brackets supplied will be accompanied by a ﬁtting sheet with instruction for their attachment to your tractor, follow the instructions exactly as they are speciﬁc to your particular make and model of tractor.
Page 8 STANDARD TYPE BRACKETS BE-AMxx With the frame in the vertical position, measure dimensions ‘A’ and ‘B’, subtract ‘B’ from ‘A’ to obtain measurement ‘X’. Measure dimension ‘C’. Select mounting holes which position the mounting bars in the end of the latch arms so that dimension ‘D’...
Page 9 ALTERNATIVE TYPE BRACKETS BE-AMxx With the frame in the vertical position, measure dimensions ‘A’ and ‘B’, subtract ‘B’ from ‘A’ to obtain measurement ‘X’. Measure dimension ‘C’. Select mounting holes which position the mounting bars in the end of the latch arms so that dimensions ‘D’ equals dimension ‘C’ minus measurement ‘X’ and also when the draft...
Page 10 Ensure no one is standing close to or within the linkage arms or bars. Note: Be aware - as lift occurs the machinery may tilt slightly. Insert catch lock pins - refer to diagram below for speciﬁc type.
Page 11 Measure PTO shaft and cut to dimension shown (distance ‘A’ minus 75mm) - see diagram opposite and refer to maintenance section for further details. Note: For subsequent use on a di erent tractor measure again - there must be a minimum of 6” (150mm) of shaft overlap.
Page 12 FIRST FITTING ONLY - for Dealer Reference Request assistance. Operate ‘Lift up’ on machine controls su cient only for the dipper arm to clear the ground. Pivot out the dipper until the tension link can be reconnected.
Page 13 STORAGE If the machine is to be left standing for extended periods of time, lightly coat the exposed portions of the ram rods with grease. Subsequently this grease should be wiped o before the rams are next moved.
Page 14 Ensure that the same ‘hole position’ is selected on each side of the machine. Note: The hole on the lower link bracket should be the rear most that permits the machine to be mounted without fouling the tractor.
Page 15 ‘R’ clip. (See Fig. 5) Note: Fig. 5 The quadrant pin must be ﬁtted in the lowest hole on the stabilizer in order that it acts as a ‘bottom stop’. This will prevent the machine from dropping when stopped and permit the tractor’s inbuilt transport...
Page 16 Fig. 8 Measure the PTO shaft and cut to the dimensions shown. The ﬁnished length of the PTO shaft should be 75mm (3”) less than the measured distance ‘A’ between tractor shaft and gearbox stub shaft to enable ﬁtting. (See Fig. 8)
Page 17 • Ensure the Lift Ram tap and Slew Ram taps are open. • Request assistance. • Operate ‘lift up’ on machine controls su cient only for end of the dipper arm to clear the ground. • Pivot out the dipper arm until the tension link can be connected.
Page 18: Flail Head Attachment
Operate machine controls to maneuver into position to enable attachment of the ﬂail head. The bottom of the hose junction bracket must be parallel with the ground. (Refer to ‘Pre-Operational Checks’ for correct bolt torque settings. Connect up ﬂail hoses as indicated below.
Page 19: Removal From Tractor
READ CAREFULLY BEFORE COMMENCING TO REMOVE THE MACHINE FROM THE TRACTOR. THE ORDER OF THE FOLLOWING STEPS MUST BE FOLLOWED EXACTLY DISCONNECTING THE TOP LINK MUST BE THE LAST OPERATION PRIOR TO DRIVING THE TRACTOR AWAY FROM THE MACHINE. WARNING! Do not operate quadrant lever or machine controls through the rear cab window whilst standing on or amongst linkage components.
Page 20 STORAGE BE-AMxx If machine is to be left standing for an extended period of time, lightly coat the exposed portions of the ram rods with grease. Subsequently this grease should be wiped o before the rams are next moved. If the machine has to be stored outside tie a piece of tarpaulin or canvas over the control assembly, do not use a plastic fertilizer bag which could lead to rapid corrosion.
Page 21: Operation
Practice operating the machine in an open space without the rotor running until you are fully familiar with the controls and operation of the machine. CAUTION! Care must be taken when working with the ﬂail head close in as it can come into contact with the tractor.
Page 22: Machine Controls
MACHINE CONTROLS BE-AMxx Cable controlled machines only.
Page 23 In these instances tractor forward motion may be maintained with care. Where breakaway has occurred as a result of contacting a post or tree, etc. the tractor must be halted and the controls of the machine utilized to maneuver the head away from the obstacle.
Page 24: Moving Into The Transport Position
MOVING INTO THE TRANSPORT POSITION BE-AMxx Select ‘ROTOR OFF’ and wait until the rotor has stopped turning. Ensure that the ‘lift’ and ‘angled ﬂoat’ are switched o . Select ‘SLEW’ mode on the control assembly. Operate ‘SLEW IN’. Operate ‘LIFT’ and ‘REACH’ to position the machine.
Page 25 ‘Over Center’ causing the tension link to crash into the rear cross member of the tractor’s cab. WARNING! During Transport: The ‘SLEW’ mode must ALWAYS be selected on the control assembly.
Page 26 TRANSPORT BE-AMxx When in transport the PTO must be disengaged and the power to the control box switched o . The acceptable speed of transport will very greatly depending upon the ground conditions. In any conditions avoid driving at a speed which causes exaggerated bouncing as this will put unnecessary strain on the tractors top hitch position and increase the likelihood of the tension link contacting the cab rear cross member.
Page 27: Rotor Operating Speed
BE-AMxx TRACTOR FORWARD SPEED The material being cut determines tractor forward speed. Forward speed can be as fast as that which allows the ﬂail head su cient time to cut the vegetation properly. Too fast a speed will be indicated by...
Page 28: High Voltage Cables
OVERHEAD OBSTRUCTIONS Always be aware of the height of the machine when working or folded and take care especially when maneuvering near or under bridges, buildings, power cables or any other obstacles you may encounter...
Page 29 HEDGE CUTTING PROCEDURES BE-AMxx 1.) Cut the side and bottom of the ﬁeld side ﬁrst. This leaves the maximum thickness of hedge on the road side to prevent the possibility of any debris being thrown through the hedge into the path of oncoming vehicles.
Page 30 NEVER CUT ON THE BLIND SIDE OF THE HEDGE. It is impossible to see potential hazards or dangers and the position of the ﬂail head would possibly allow debris to be propelled through the hedge towards the tractor and the operator. WORKING ON ADVERSE SLOPES...
Page 31: Maintenance
MAINTENANCE BE-AMxx LUBRICATION GENERAL Grease daily all the points shown in the diagram above. PTO SHAFT Regularly check the PTO guards for damage and ensure the anti-rotation chains are in place and that their anchor points are in good condition. Lubricate the points shown on the diagram below at the intervals indicated using general purpose lithium based grease.
Page 32: Hydraulic System
Check the oil level in the reservoir daily. No ﬁxed time period can be quoted for oil changes as operating conditions and maintenance standards vary so widely. Burnt and scorched oil odors and the oil darkening and thickening are all signs of oxidization and indicate the oil should be changed.
Page 33: Hydraulic Hoses
Hoses that have su ered damage to the metal braid should be changed at the earliest opportunity.
Page 34 AM CONTROL ASSEMBLY BE-AMxx DESCRIPTION SPECIFICATION...
Page 35 AM CONTROL ASSEMBLY (CONT.) BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. BH-6.07.091 Short Hand Shank 702830121 MBH-6.08.108 Joystick (Short) 702910335 GB6172.1-M10 Thin Nut 503010099 AM60.01.120 Shifting Block 702770020 AM60.01.119 Protecting Bush 702770019 GB70.1-M5X40 Hexagon Socket Cap Screw 505011396 GB119.1-B-6X26...
Page 36 AM MOWING PART BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. DIN985-M14 Hexagon Locking Thin Nut 503010764 GB97.1-14 Plain Washer 506010058 GB5783-M14X40 Screw Bolt 501011142 AM60.02.017 Hitch Frame Weldment 802770061 AM60.02.010 Hood Weldment 802770037 AM80.02.010 Hood Weldment 802780005 AM100.02.010 Hood Weldment 806830004 AM60.02.110...
Page 37 AM MOWING PART (CONT.) BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. GB5783-M8X25 Screw Bolt 501011100 AM60.02.103 Motor Guard Board 702770026 GB70.1-M8X25 Hexagon Socket Cap Screw 505011416 GB93-6 Spring Washer 506030034 AM60.02.104-2 Motor Oil In & Out Connector 702780010 GB3452.1-G-23.6X2.65...
Page 38 AM MOWING PART BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. AM60.03.016 Fuel Tank Cover 802770115 CBW-00-011 Air Plug M16X1.5 CBW-00-011 AM60.03.017Y-1 Fuel Tank 802770118 JB7941.2-B80 Liquid Level Meter 509010012 EF100.00.117 End Cover 700920105 1G-150-01-142 Middle R Pin 703190209 EF100.00.111A...
Page 39 AM MOWING PART (CONT.) BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. 200.56.011 Lock Pin Assembly 700080010 AM60.03.021 Lifting Eye Weldment 802770135 AM60.03.022 Connecting Lever Weldment 802770138 GB27-M20X95 Articulation Bolt 501014279 FM120.00.199 PTO Shaft Cover 703400008 GB96.1-8 Extra Large Plain Washer...
Page 40 AM MOWING PART BE-AMxx...
Page 41 AM MOWING PART (CONT.) BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. 200.56.011 Articulation Bolt 501014283 AM60.03.021 Small Support Arm 802770096 AM60.03.022 Plain Washer 506010061 GB27-M20X95 Hexagon Locking Thin Nut 503010767 FM120.00.199 Articulation Bolt 501014240 GB96.1-8 Pushing Pull Plate 802770093...
Page 42 AM MOWING PART BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. AM60.04.022Y Three Way Valve 702770159 GB5782-M8X60 Half Thread Bolt 501010741 ZBT32001.3-ZG3/8-19” Inner Hexagon Tapered Plug 516010003 MBH-8.08.302Y Oil In & Out Connector 702930544 1CB-18-06WD Connector M18x1.5-G3/8 700250036 MBH-8.08.305Y Valve Throttle Connector...
Page 43 AM MOWING PART (CONT.) BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. GB97.1-8 Plain Washer 506010055 DIN985-M8 Hexagon Locking Thin Nut 503010761 RFA-100X30L Return Oil Filter 702770173 1CM-18WD M18x1.5 (Both End) Adapter 706530042 GB3452.1-G-18X2.65 O Sealing Ring 510013132 JB982-42 Bonded Washer M42 510015250 AM60.04.104-1...
Page 44 AM MOWING PART BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. DIN985-M14 Hexagon Socket Cap Screw 503010764 GB97.1-14 Plain Washer 506010058 GB5783-M14X40 Screw Bolt 501011142 AM60.02.017 Hitch Frame Weldment 802770061 AM60.02.010 Hood 802770037 AM60.02.110 Front Board 702770033 GB5783-M8X20 Screw Bolt 501011099 GB97.1-8...
Page 45 AM MOWING PART (CONT.) BE-AMxx REF NO. PART NO. DESCRIPTION ARTICLE NO. DIN985-M10 Hexagon Locking Thin Nut 503010762 GB97.1-10 Plain Washer 506010056 GB5783-M10X25 Screw Bolt 501011112 AM60.02.112 Rubber Board 702770035 AM60.02.111 Pressing Bar 702770034 GB5783-M8X25 Screw Bolt 501011100 AM60.02.103 Motor Guard Board 702770026 GB70.1-M8X25...
