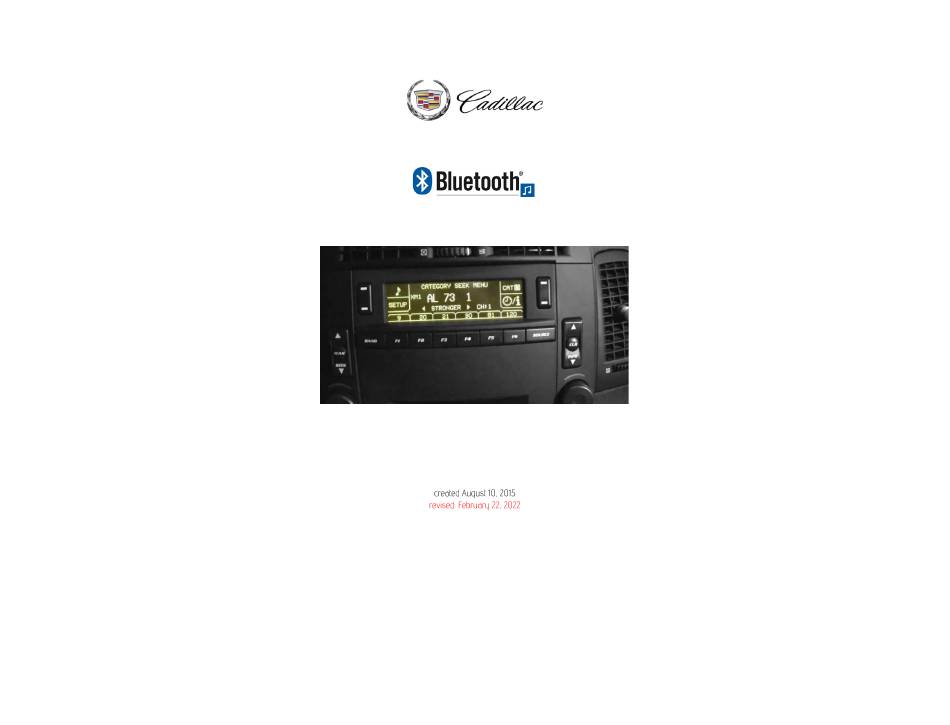

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2D-CTS QUICK START MUSIC STREAMING INSTALLATION GUIDE FOR CADILLAC CTS/SRX WITH XM TUNER...
- Page 2 Cadillac CTS or SRX still drives great but lack ability to assembly below radio (See Fig. 2) stream music application. Our new and improved A2D-CTS music streaming module allows these vehicles owners to stream music applications from Smartphone, Tablet, Kindle etc. through the factory radios XM port. For this module to work, the compatible vehicle must have an XM Tuner module with or without subscription.
- Page 3 Connect installation harness 8-pin black plug (See Fig. 6) to radio chamber vacated in step 6 Fig. 3 Pull radio forward to reveal connectors (See Fig. 4) Fig. 6 8-pin plug Warning: Bose system radios may not be able to provide enough current to power amplifier and module and as a result module will randomly connect/disconnect.
-
Page 4: Operation
Pairing Operation Pairing varies among devices but basic steps are the same. This process is done Radio must be in XM mode in order to stream on car speakers. upon initial install and will not have to be repeated. Turn ignition and radio “ON” 2. -
Page 5: Optional Remote
Use wireless remote to perform the following functions on any iOS7.0 and higher Optional remote or Android 4.4 and higher. Optional remote control allows users to: Control music wirelessly 2. Track up/down 3. Volume up/down Pairing: Contents: Operation:... - Page 6 If pin 4 is TAN/WHITE (See Fig. 8) select 2003-04 © 1995-Feb-22 Discount Car Stereo, Inc. All rights reserved. Information in this document is If pin 3 in TAN/White (See Fig. 9) select 2005-07 subject to change without notice. Other products and companies referred to herein are...
