Axiom Technologies
255 Pennbright Dr, Suite 220, Houston, Texas 77090
Axiom Technologies L.L.C
255 Pennbright Dr, Suite 220
Houston, Texas 77090

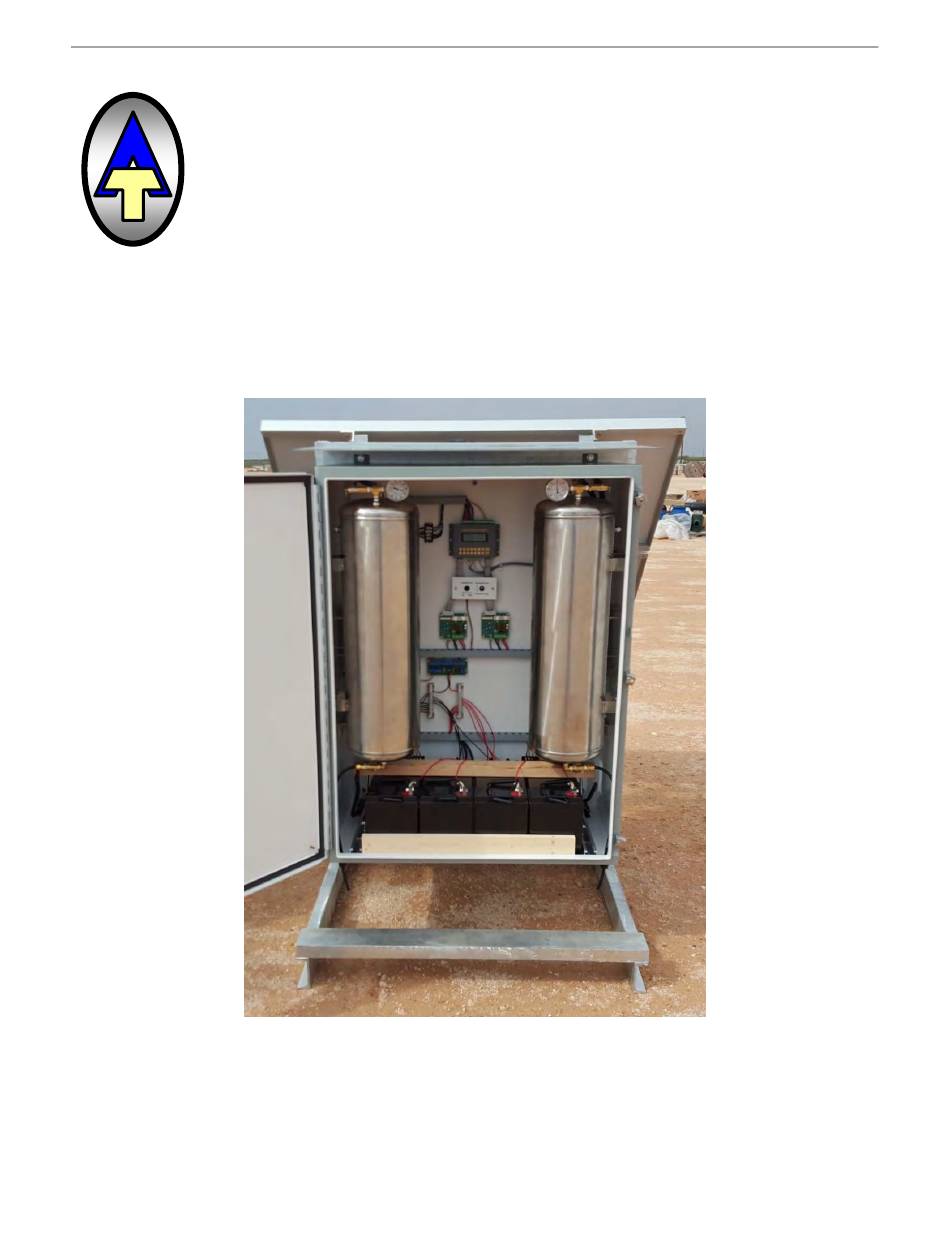

ZEUS Dual Compressor
Dual-Solar-Powered-Air-Compressor-Manual-2022.docx
USER'S MANUAL
Programmable
Solar Powered
Air Compressor
ZEUS Dual Compressor Manual
Phone 281 931 0907
Telephone: 281 931 0907
Fax: 281 231 6562
www.axiomsafety.com
1
Advertisement
Summary of Contents for Axiom ZEUS
- Page 1 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 Axiom Technologies L.L.C Telephone: 281 931 0907 255 Pennbright Dr, Suite 220 Fax: 281 231 6562 Houston, Texas 77090 www.axiomsafety.com ZEUS Dual Compressor USER’S MANUAL...
- Page 2 INTRODUCTION This document addresses operation of the ZEUS with application program version “Charger7P.rgd”. Note that for this version to operate correctly you must first install Axiom OS version 149 or later (see instructions near the end of this document). WARNING – EXPLOSION HAZARD ...
- Page 3 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 ACCESSING MENUS Charger operation is controlled by employing a series of setpoints using the onboard keyboard and LCD display. In order to access the main menu, press the minus (-) key on the unit’s keyboard.
- Page 4 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 SETPOINTS Note: Setpoints are system parameters that typically remain constant and are not normally altered in the field. Values that are typically field-application specific are found under the Display menu.
- Page 5 “high level” signal. Level Steady Sec: when using the ZEUS to control a tank dump valve, this is used to filter false “high level” signals due to tank sloshing. The controller will ignore “high level” signals that are shorter in duration than the value entered.
- Page 6 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 Cal pressure XD Station 2 (Not used for the ZEUS Compressor) Station 3 (Not used for the ZEUS Compressor) Station 4 (Not used for the ZEUS Compressor) Station 5 (Not used for the ZEUS Compressor) Dump Function Since the LCD has only four lines, only four lines at a time can be shown.
- Page 7 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 entering the new value followed by the ENTER key, the new value will take effect and the display will return to normal.
- Page 8 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 large accumulators. Using the cycle mode, the duty cycle of the compressor can be limited to reduce peak temperatures of the compressor head which will extend compressor life.
- Page 9 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 7)Reset fail now=0 8)PSI now=Xducer#1 9)Max run min. = 60.0 (Default=60) This run min. = 0.0 Line 2 presents pressure in PSI being measured and current in amps being supplied to the compressor.
- Page 10 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 that both compressors share runtime. In that scenario, both compressors would be set to transducer #1 (or transducer #2). This option should only be used if the outputs of both tanks are teed together upstream of any check valves.
- Page 11 The procedure will start by asking the user to identify which channel they wish to calibrate (for the ZEUS Jr., this will always be channel 1. Then it will ask the user to apply a high pressure to the transducer and type in the pressure that was applied. Usually this will be a pressure near the expected operating point for that channel.
- Page 12 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 Channel=1 Key1=Back, Key2=Next Here, key ‘3’ will toggle between channels 1 and 2. Once the channel to be calibrated is selected, press key ‘2’ to proceed to the next display:...
- Page 13 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 CALIBRATING ONBOARD TEMPERATURE The onboard temperature measurement is used to offset the battery charge completion voltage so as to neither over-charge nor under-charge the lead acid battery whose terminal voltage is dependent upon temperature.
- Page 14 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 will stay off. Once the alarms are all corrected, then the FAIL output will turn off and the OK output will turn on. The STROBE output is presently unused.
- Page 15 ZEUS Dual Compressor Manual Axiom Technologies 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 Dual-Solar-Powered-Air-Compressor-Manual-2022.docx...
- Page 16 Axiom Technologies ZEUS Dual Compressor Manual 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 Dual-Solar-Powered-Air-Compressor-Manual-2022.docx...
- Page 17 Axiom Technologies ZEUS Dual Compressor Manual 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 Dual-Solar-Powered-Air-Compressor-Manual-2022.docx...
- Page 18 Axiom Technologies ZEUS Dual Compressor Manual 255 Pennbright Dr, Suite 220, Houston, Texas 77090 Phone 281 931 0907 Dual-Solar-Powered-Air-Compressor-Manual-2022.docx...
- Page 19 CHARGER MODBUS INTERFACE The unit is programmed to respond as a slave to modbus RTU polls on RS485 serial port 4. Port serial parameters are: baud 9600, no parity, 8 bit word, 1 stop bit. Slave address is 1. The tag list for reading statuses using message types 1 or 2 is the following: Word1: (Charger local alarms) Bit 1 Low battery voltage alarm Bit 2 Low battery cutoff alarm...
- Page 20 Register 18 Compressor #2 total cycles, MS (/1000) Register 19 Compressor #1 cycles so far today (since midnight) Register 20 Compressor #1 cycles yesterday Register 21 Compressor #2 cycles so far today (since midnight) Register 22 Compressor #2 cycles yesterday Register 23 Compressor #1 total running hours, LS Register 24 Compressor #1 total running hours, MS (/1000) Register 25 Compressor #2 total running hours, LS...
