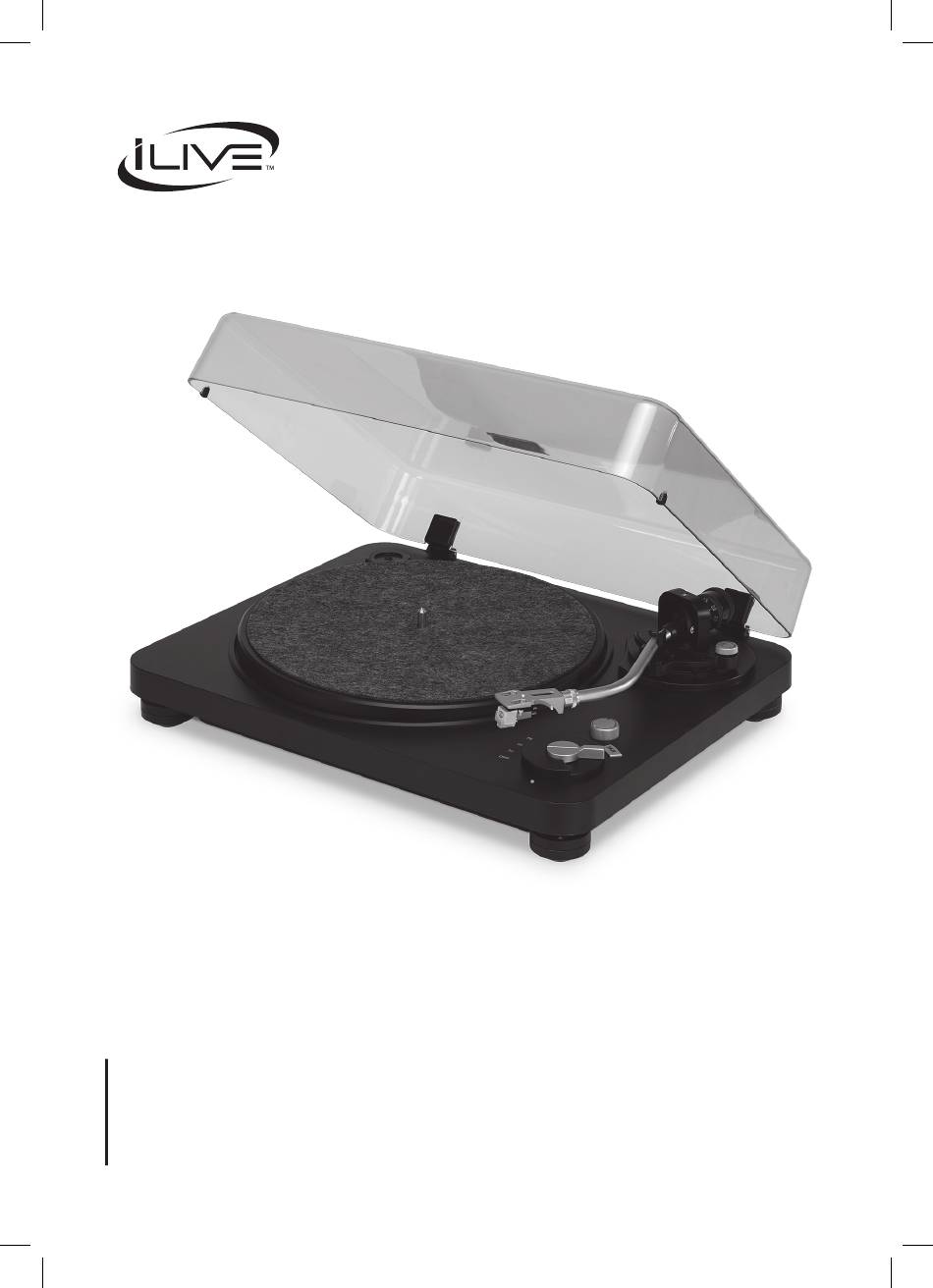

- Page 1 TURNTABLE WITH BLUETOOTH TRANSMITTER Model ITTB2022B For the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com...
- Page 2 Safety Instructions & Warnings Important Safety Instructions WARNING: To reduce the risk of electric CAUTION shock, do not remove cover (or back). No RISK OF ELECTRIC SHOCK DO NOT OPEN • Read these Instructions. user-serviceable parts inside. Refer servicing ATTENTION •...
- Page 3 Additional Warnings and Precautions • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY • If you think batteries might have been swallowed or INSERT. placed inside any part of the body, seek immediate medical •...
-
Page 4: Table Of Contents
Table of Contents Get to Know Your Turntable–5 Features–5 What’s in the Box?–5 Top–6 Rear–6 Controls–7 Let’s Get Started–8 Power –8 Loading a Record–8 Using the Counterweight–9 Connecting to a Bluetooth Speaker–10 Connecting to External Speakers–11 Line Out–11 Phono–11 Hints and Tips–12 Anti-Skating–12 Pitch Adjustment–12 Stylus Replacement–12... -
Page 5: Get To Know Your Turntable-5
Get to Know Your Turntable Features • Anti-Skate Adjustment • Built-in Bluetooth transmitter for connecting to Bluetooth speakers • Plays 33, 45, and 78rpm records • Lift and return action of the tone arm at the end of • Built-in RIAA preamp a record •... - Page 6 Get to Know Your Turntable Rear 1. 45rpm Adapter 6. Bluetooth ON/OFF 2. Platter 7. RCA Line Out 3. Tone Arm Lift Switch 8. AC Power Input 4. Tone Arm 9. Line Out/Phono Switch 5. Cartridge & Stylus...
- Page 7 Controls 1. Counterweight Adjustment: Turn to adjust the amount of weight placed on the record by the stylus. 2. Anti-Skating Adjustment: Turn to adjust the inward tracking of the stylus on the record. 3. Pitch Adjustment: Turn to fine tune the speed of the platter as it spins.
-
Page 8: Let's Get Started-8
Let’s Get Started Power Plug the external power adapter into a standard wall outlet. Loading a Record • Place your record on the platter, aligning it with the center spindle. • Set the speed selector dial to match your record type - 33, 45, or 78. If you are playing a 45rpm record, be sure to place the 45rpm adapter on the platter first, so that it is between the platter and the record. -
Page 9: Using The Counterweight-9
Using the Counterweight The Counterweight controls how much pressure the stylus will put on a record. If there is too much pressure, the sound may become distorted. If there is too little pressure, the stylus may skip out of the grooves on a record. The Product Guide recommends using 4 grams of pressure on a record. -
Page 10: Connecting To A Bluetooth Speaker-10
Connecting to a Bluetooth Speaker • Start by enabling Pairing Mode on the Bluetooth Speaker you want to use. Before beginning the pairing process, be sure no other devices are connected to the speaker. • On the turntable, turn Bluetooth Mode ON by adjusting the switch on the back of the unit. •... -
Page 11: Connecting To External Speakers-11
Connecting to External Speakers • Use an RCA audio cable to connect to a pair of external speakers. Connect the Line Out ports on the turntable to the corresponding color-coded ports on the speakers. • Set the selector switch on the back of the turntable to Line Out to send audio to the speakers. •... -
Page 12: Hints And Tips-12
Hints and Tips Anti-Skating The Anti-Skating dial adjusts the inward tracking of the tone arm on the record. Usually, the dial should be left in its lowest setting. However, if the turntable is experiencing excessive skipping as the record plays, increase the anti- skating effect in increments of 1 using the dial. - Page 13 -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC ID: 2A657-ITTB2022B...
