AIS over WiFi with the DT-06 WiFi module

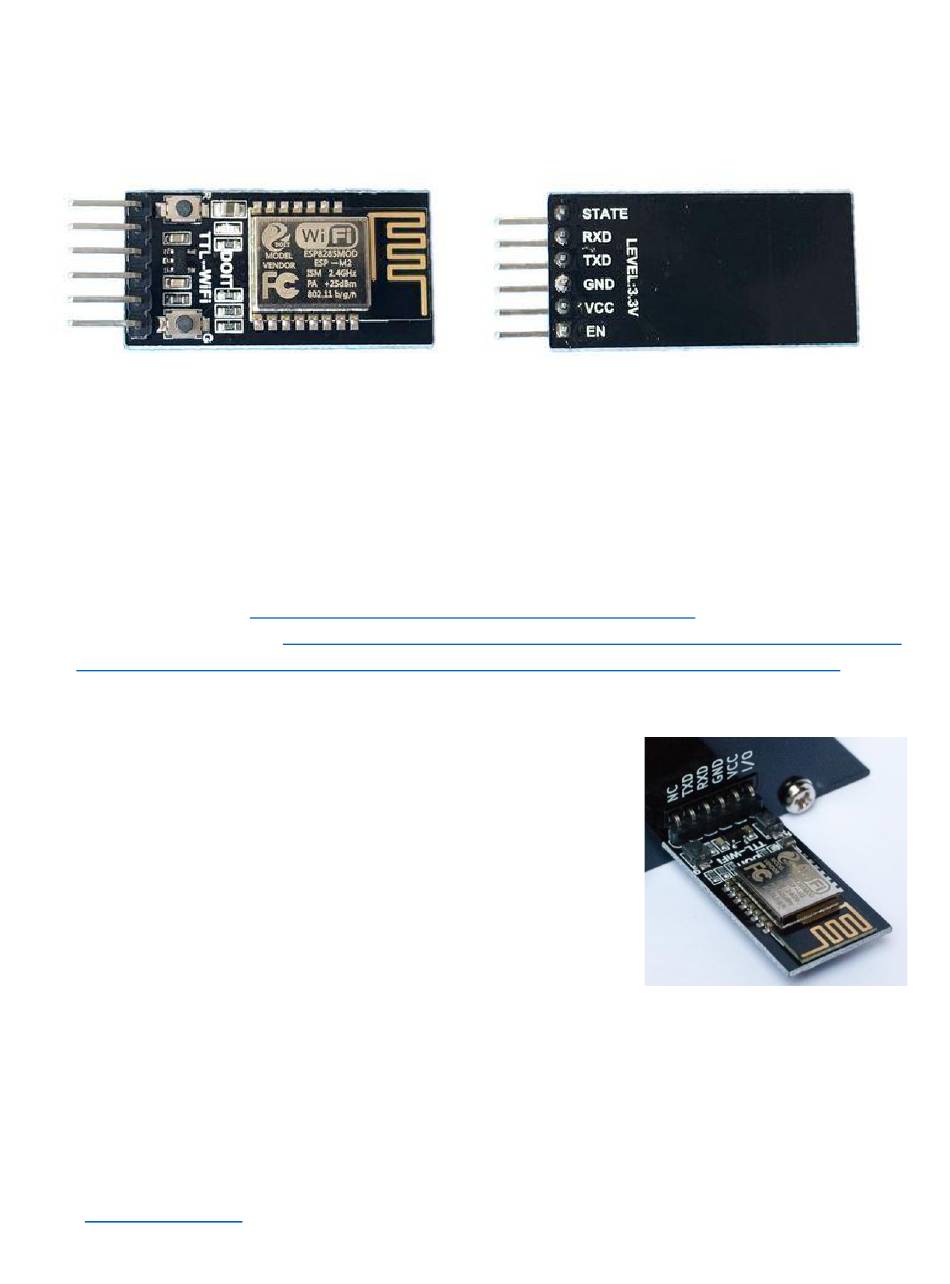

The auxiliary serial port is pin-compatible with the inexpensive DT-06 WiFi module. With the module,

dAISy 2+ can make data available wirelessly to mobile devices like laptops, tablets and smartphones.

What you need

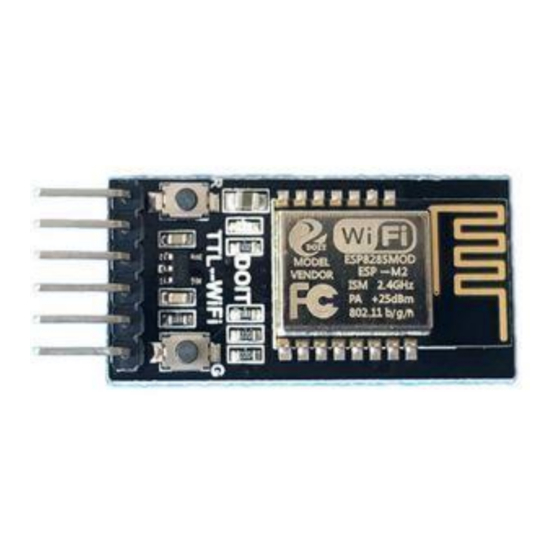

DT-06 WiFi module, available for US$4 to $10 on Ebay and other online shops.

An app that accepts AIS from a network connection, like for example OpenCPN, Navionics,

BoatBeacon or SailGrib. In this document, we will use OpenCPN, but configuration of other apps

is very similar.

WARNING: We received reports that some DT-06 modules offered on Ebay and AliExpress don't

work. We buy our modules from these two vendors:

szdoit on AliExpress:

Geekcreit on BangGood:

Transmission-Module-TTL-To-WiFi-With-bluetooth-HC-06-Interface-ESP-M2-p-1141047.html

Remove power from the dAISy AIS receiver before installing the

module.

Plug the WiFi module into AUX Serial so that the VCC and GND pins of

the WiFi module line up with the respective labels on dAISy. With that,

dAISy TXD will be connected to WiFi RXD, and dAISy RXD to WiFi TXD.

The module may be upside down compared to the picture, that's ok if

the pins are connected as described above.

Connect dAISy to power. The LED on the WiFi module should light up.

At any time, the module can be reset to factory default settings by keeping the button labelled G

pressed until the LED turns off.

When first powered up, the module will show up as a WiFi access point with the name Doit_WiFi_x,

where x are the last 6 characters of the module's MAC address.

Connect to this access point with a computer or mobile device. Open a browser and in the address bar

type

http://192.168.4.1

https://www.aliexpress.com/item/32813585141.html

https://www.banggood.com/DT-06-Wireless-WiFi-Serial-Port-Transparent-

and press enter. You will see the configuration menu of the WiFi module.

Table of Contents

Do you have a question about the DT-06 and is the answer not in the manual?

Page 1 AIS over WiFi with the DT-06 WiFi module The auxiliary serial port is pin-compatible with the inexpensive DT-06 WiFi module. With the module, dAISy 2+ can make data available wirelessly to mobile devices like laptops, tablets and smartphones. What you need DT-06 WiFi module, available for US$4 to $10 on Ebay and other online shops.
Page 2 First, configure the communication between the WiFi module and dAISy. Navigate to MODULE > Serial. Set BaudRate to 38400. Leave the remaining fields at their defaults (8, NONE, 1, 50). Click Save. Next, configure protocol, address, and port on which AIS data will be broadcasted.
Page 3 We recommend protecting access to the WiFi module by setting a password. Navigate to MODULE > WiFi. In the section SOFT AP Settings enter the desired password into the field Password. The password must be 8-63 characters. Optionally, you can change the name of the WiFi module by updating the field SSID Name.
Page 4 Configure Navionics Boating App Garmin Boating, also known as Navionics, is a popular app for mobile devices that in its paid version also supports AIS. Connect your mobile device to the WiFi access point of the dAISy 2+ AIS receiver. Open the Navionics app.
