- Page 1 Tagmaster Anilog 3060 Instructions Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e...
-
Page 2: Table Of Contents
Quantifiable Actions. Page 15 Search Mode. Page 16 Communications Mode. Page 16—17 Speed Mode. Page 17—18 Tools Mode. Page 18— 19 Print. Page 18 Battery Status. Page 19 Update Firmware. Page 19 Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... - Page 3 Disable Configurations. Page 26 RFM Tuning Mode. Page 26 Ancillary Options. Page 26 Battery Charging. Page 27 Equipment List. Page 28 Technical Specs. Page 28 Trouble Shooting. Page 29—30 Notes. Page 31—33 Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e...
-
Page 4: About The Anilog

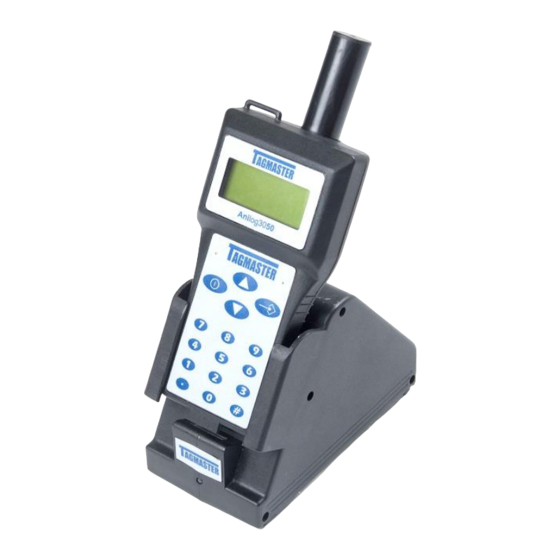

Each animal carries a special tag which has a unique electronic identification (EID) number. The Anilog 3060 recognises this tag and can thus identify each animal. The 3060 can be used to read any international standards organisation (ISO) electronic ear tag on any animal The stockman can record information about the animal on the 3060’s... -
Page 5: Main Parts
Numeric Keypad Standard 0 - 9 and # keys allows manual input of information. Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 6: Menu Structure
Information Print Old Tags Battery Status Print Info Update Firmware Set Backlight Setup Anilog Set Weigher Set Communication Mode Set Date and Time Set Beeper Set Timeout Clear History Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 7: Navigation
Navigation The Anilog 3060 uses four main buttons to navigate it’s menu structure Switches the Anilog 3060 on and off. Also used to close any option or sub menu Scroll up a list of options Scroll down a list of options... -
Page 8: Set Time And Date
The SET DATE screen is displayed. Use the keypad arrows to change the displayed day, once the correct day is displayed press to move to month. Repeat this process for the year, hours and minutes. Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360... -
Page 9: Choose A Weigh Method
To set Communication mode: Press to power on the Anilog Scroll through the menu using the arrows keys until you reach SETUP ANILOG, press Scroll until you reach SET COMMUNICATION MODE, press Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 10: Specify Eid Mode
Once you have selected a Communication mode you will be returned to the Main menu. Note: If you are unsure of the type of EID tags you are using then please contact your supplier. Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360... -
Page 11: Log An Action
Once you have selected your required actions press to store them. Note: The actions available in the Anilog depend on the actions that you downloaded from the Anidata software. Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 12: Dealing With Newborns
Once the number has been stored you will be taken back to the actions menu You can choose another action if required or press to store the action Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 13: Colour/Breed
Anilogs database for the correct DAM Once found press to store the DAM against the new born Note. If the dams number is not found then this needs to be downloaded to the Anilog Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360... -
Page 14: Birth Weight
Use the arrow keys to select the BOUGHT FROM action, press Use the keypad to enter the animal’s official number. Press to store the information. You will be taken back to the actions menu. Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360... -
Page 15: Quantifiable Actions
Once you are finished press to log the action Note: In order for this to work you must have a quantifiable action created and downloaded to the Anilog Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 16: Search Mode
Connect the cable to the serial port at the back of the cradle and plug the cradle’s power socket into the mains. Connect the other end of the PC cable to a serial port on the PC Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695... -
Page 17: Speed Mode
When you have selected all the required actions press to return to the SPEED MODE menu (you may have to press this twice) Scroll until you reach START and press Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 18: Tools Mode
A message will appear on the screen saying press LOG ( ) to print or any other key to return to previous menu. Do as required Tagmaster Press once to return to the TOOLS menu or twice to return to the main menu. -
Page 19: Battery Status
Note: This Update Firmware software will not be supplied as standard. Please contact your supplier for more details. IMPORTANT: During update DO NOT REMOVE or SWITCH OFF the Anilog as this may cause Tagmaster serious damage. www.tagmasterlivestock.co.uk Tel: (01450) 370695... -
Page 20: Setup Anilog
Scroll through the next menu until you reach SET WEIGHER, press Select either ELECTRONIC or KEYPAD ENTRY by scrolling down the choices and pressing Tagmaster A brief message will be displayed confirming your choice. Press return to the main menu. -
Page 21: Communication Mode
Use the keypad arrows to increase, decreased until the correct day is displayed, press to move to the month field. Repeat the above process for the year and time. Press to return to the main menu Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 22: Beeper
The screen displays SYSTEM TIMEOUT, if necessary use the arrow keys to change, press to confirm your choice The System timeout dictates how long the Anilog remains on when inactive. Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 23: Clear History
Note: If you clear the history or tags you will not be able to retrieve them again. EID Mode This option allows you to specify the type of electronic tags you have used on Tagmaster your animals www.tagmasterlivestock.co.uk Tel: (01450) 370695... -
Page 24: Contrast
To set tag entry mode: Press to power on the Anilog Scroll through the menu until you reach SETUP ANILOG, press Scroll again until you reach MAN TAG ENTRY, press Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e... -
Page 25: Configuration Options
Test Memory Test the memory of the Anilog. When you select this option ou will be asked Tagmaster if you want to start the test, make your selection and press www.tagmasterlivestock. Note: All data stored in memory will be cleared when testing the memory co.uk... -
Page 26: Test Weigher
Disable Configurations This will disable the configuration options menu in the Anilog RFM Tuning Mode Contact Tagmaster UK for this option Ancillary Options Using Multiple Anilogs Each Anilog can be allocated a two digit number in the range of 0—99. This number forms the first two digits of the six-digit temporary ID, which the Anilog uses when it cannot find a tag in it’s history log. -
Page 27: Battery Charging
The LED situated at the front of the cradle identifies the Orange flashing Power supply error charging status. This is shown in (<11.7v) the table to the right. Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e | 27... -
Page 28: Equipment List
Equipment List The Anilog 3060 is supplied with the following accessories PC cable Charging cradle and power supply Instructions for use manual The following accessories are available as optional extras. Replacement battery Weigher cables EID to official number data disk (Anidata Tag bucket disk) -
Page 29: Trouble Shooting
The unit read tag flashes The unit is not too close to large metal objects or electrical devices There is not more than 1 EID tag in range Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e | 29... - Page 30 If possible please return the unit in the box it was supplied in along with all accessories. **Note. DO NOT send the unit back until you have contacted Tagmaster UK. If you do so then the unit may be returned to you without being tested.
-
Page 31: Notes
Notes Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e | 31... - Page 32 Notes Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e | 32...
- Page 33 Notes Tagmaster www.tagmasterlivestock.co.uk Tel: (01450) 370695 Fax: (01450)374360 P a g e | 33...
- Page 34 ©COPYRIGHT NOTICE This software system and documentation are copyrighted © 2009 by Tagmaster. All Rights are reserved world-wide. No part of this publication may be altered, distributed, transmitted, transcribed or translated without the express written permission of Tagmaster. DISCLAIMER Tagmaster makes no warranties as to the contents of this documentation and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.
