GGM GLK873C Installation And Operation Manual

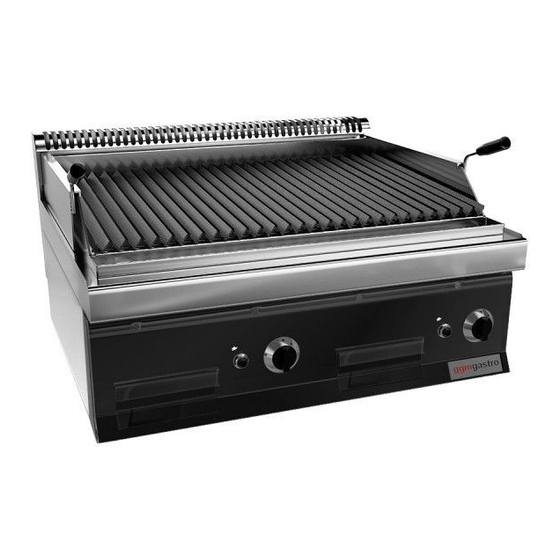

Gas lava rock grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

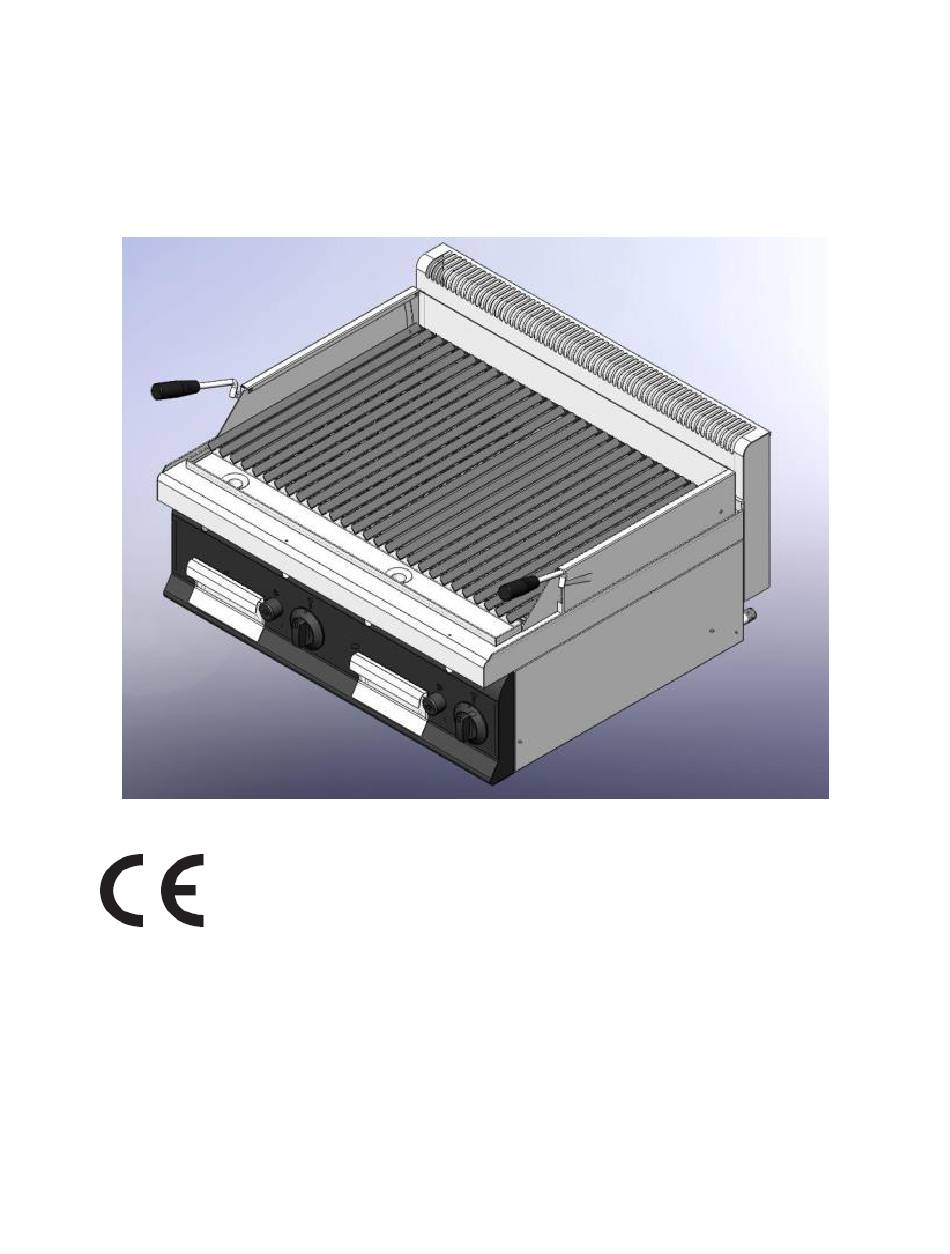

GAS LAVA ROCK GRILL
Installation and Operation Manual
Model No.:
GLK873C GLGK800-E
Important:
1. You are advised to read these instructions first before installation commences.
2. This manual must be handed to the end user after installation and commissioning.
3. These instructions are only valid if the country code appears on the appliance. If the code does not appear on the
appliance, refer to the technical instructions for adapting the appliance to the conditions for use in that country.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLK873C and is the answer not in the manual?

Questions and answers

Summary of Contents for GGM GLK873C

  • Page 1 GAS LAVA ROCK GRILL Installation and Operation Manual Model No.: GLK873C GLGK800-E Important: 1. You are advised to read these instructions first before installation commences. 2. This manual must be handed to the end user after installation and commissioning. 3. These instructions are only valid if the country code appears on the appliance. If the code does not appear on the appliance, refer to the technical instructions for adapting the appliance to the conditions for use in that country.
  • Page 2 Introduction We are confident that you will be delighted with your Lava Rock Griller, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Griller, there are two important things you can do. Firstly: Please read the instruction book carefully and follow the directions given.

  • Page 3: Technical Specification

    Technical specification Technical Specifications Table MODEL GLK873C DIMENSIONS WIDTH (mm) DEPTH (mm) HEIGHT (mm) GAS FEED PIPE G1/2〃 HEAT INPUT (kW) NATURAL GAS 1. General Information 1) Read the instructions in this manual carefully, as they contain important information on how to install, use and service the appliance safely, properly, and effectively.

  • Page 4: Installation

    4. Installation 4.1 General information The manufacturer cannot be held liable for any damage to property or injury to persons deriving from installation errors or from inappropriate use of the appliance and is not responsible for any faults caused by defective installation.
  • Page 5 4.6 Transporting the appliance The best way to transport this appliance is inside its packing to protect it from outside damage. After the appliance has been unpacked, use wooden spacers if you should need to lift it up. 4.7 Unpacking the appliance Prior to installation, remove all packaging materials from the appliance.
  • Page 6 Table 2: burner specifications Nominal Heat Input (kW) Low Heat Input per Burner (kW) Liquid gas consumption 0.55 (kg/h) Natural gas consumption 0.74 /h) - G20 Rated pressure (mbar) Max pressure(mbar) Min pressure(mbar) Nozzles Pilot flame 0.35 Injector 2.05 Rated pressure (mbar) Max pressure(mbar) Min pressure(mbar) Nozzles...

  • Page 7: Adjustment Instructions

    5. Adjustment Instructions To convert (for example) from natural gas to liquid gas, you need to change the nozzles of main and pilot burners. The appropriate nozzles are shown in "Table 2: burner specifications". Pic 1: Nozzle 5.1 Adjust air ratio device Unscrew the control panel thus can see the adjust air ratio device from bottom view.
  • Page 8 6.1 Before using the appliance 6.1.1 Preparing the appliance for use Before cooking food for the first time, we recommend cleaning the appliance thoroughly. Remove all packaging materials and adhesive films from the appliance very carefully. Before cleaning the stainless steel parts, make sure that the detergent you intend to use does not contain any abrasive substances and that it is suitable for stainless steel surfaces.

  • Page 9: Troubleshooting

    piping, especially after the appliance has remained idle for some time). Therefore, avoid such stagnation; do not use wire wool pads to remove the most stubborn food residues. Use, rather, pads or spatulas made of stainless steel or softer, non-ferrous materials; 3) Stagnation of substances having acid components such as vinegar, lemon juice, sauces, salt, etc.
  • Page 10 Fault Possible Cause Remedy Pilot won’t light No gas supply Ensure gas isolation valve is turned on, and that bottle is not empty. Call service provider Blocked pilot injector Pilot goes out when gas control Releasing knob before Hold knob in for at least 20 knob released thermocouple has heated.

This manual is also suitable for:

Glgk800-e
