Roca Z856584406 Quick Start Manual

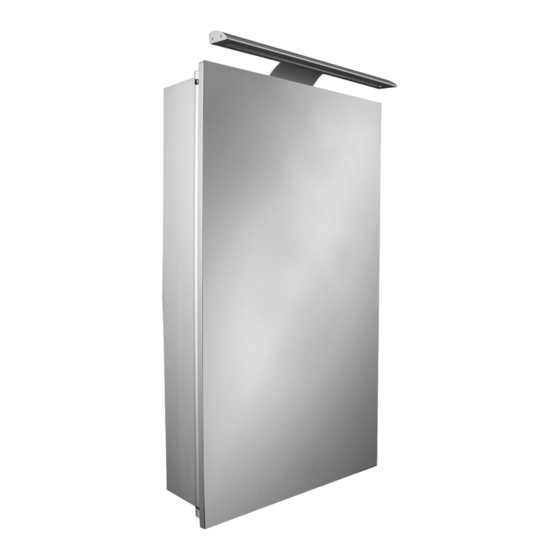

image for reference only
1
Place the cabinet in the desired position and
mark a line along the top
5 Mount the bracket onto the wall. Do not insert
the screws fully.
a
MAX
x2 MAX
10
5 kg
kg
8 6
mm mm
2
Assemble the Hang 'N' Lock
bracket and measure the
distance between the top of
the cabinet and the bottom
of the bracket.
6
Make the bracket level by rotating the CAM mechanisms.
FIXING PACK
a x4
b x5
3
Use that measurement to create a line
underneath the one previously marked.
Rest the Hang N Lock bracket on this new line
and mark the screw holes.
?
?
c x1 Size of Hang 'N' Lock may be different
depending on the length of cabinet.
d x8 (x16)
e x1
4
Drill screw holes and insert wall plugs.
7
Fully tighten the screws.
f x1
g x1
h x1
i x2
8
mm
b
CAB 132 R01
