6-conductor Cable 8-pin
Connector Pinout
The connector end of the SmartSensor 6-conductor cable mates to the 8-pin connector on the SmartSensor
Matrix and SmartSensor Advance. The sensor itself also contains internal wires that connect to the protective
earth lug.

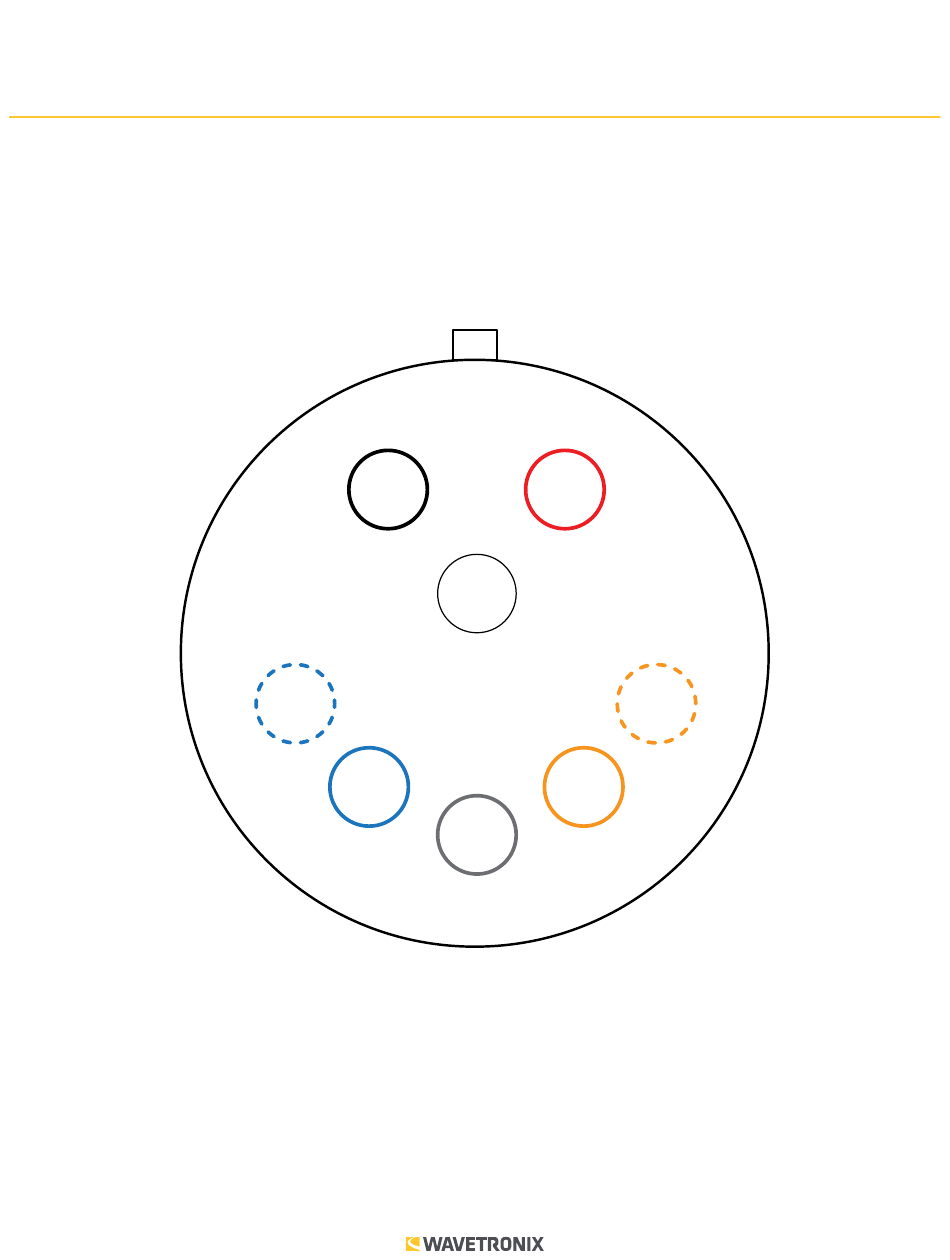

If you need to terminate your own 6-conductor connector, the cable's wires should correspond to the holes in the
the connector as shown in the diagram below.
WX-501-0375 • 03.22
G
Common (ground)
Black
F
Control +485
Blue/White
E
Control -485
Blue
A
+DC
Red
H
NC
Data bus +485
Orange/White
C
Data bus -485
Orange
D
Drain/
shield
B
0375
1 of 3
Advertisement
Table of Contents
Summary of Contents for Wavetronix 0375
- Page 1 If you need to terminate your own 6-conductor connector, the cable’s wires should correspond to the holes in the the connector as shown in the diagram below. Common (ground) Black Control +485 Data bus +485 Blue/White Orange/White Control -485 Data bus -485 Blue Orange Drain/ shield WX-501-0375 • 03.22 1 of 3...
- Page 2 If you have a finished cable and want to use a meter to make sure that the wires are correct, the visible holes correspond to the following wires: Common (ground) Black Control +485 Data bus +485 Blue/White Orange/White Control -485 Data bus -485 Blue Orange Drain/ shield WX-501-0375 • 03.22 2 of 3...
- Page 3 © 2022 Wavetronix LLC. All rights reserved. Protected in the US by patents viewable at www.wavetronix.com/en/legal. Protected by Canadian Patent Nos. 2461411; 2434756; 2512689; and European Patent Nos. 1435036; 1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Command and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are trade- marks or registered trademarks of their respective holders.
