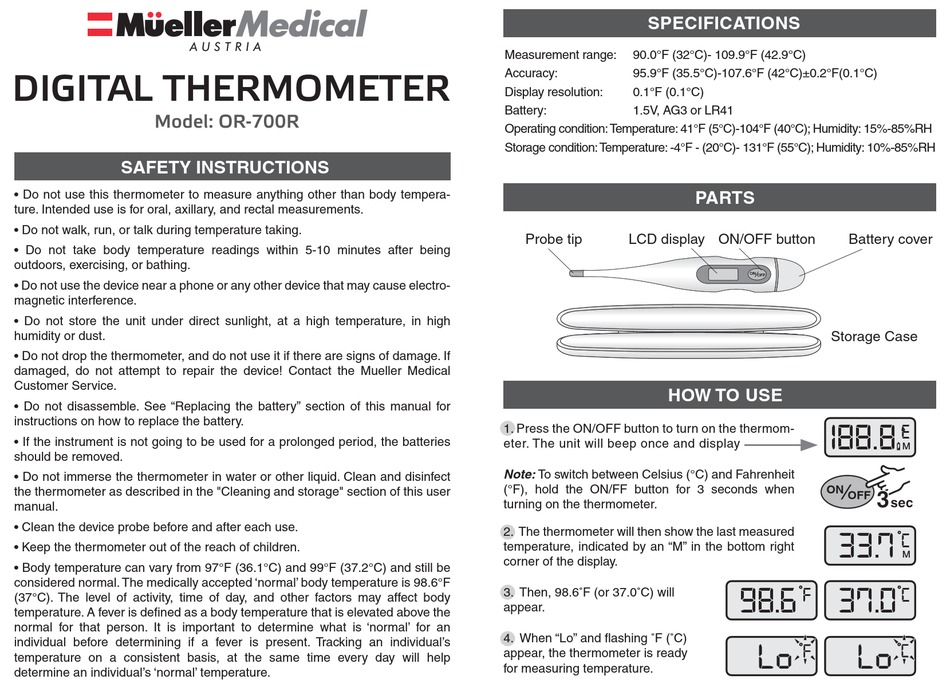

Mueller OR-700R Quick Start Manual

DIGITAL THERMOMETER

Model: OR-700R

SAFETY INSTRUCTIONS

• Do not use this thermometer to measure anything other than body tempera-
ture. Intended use is for oral, axillary, and rectal measurements.
• Do not walk, run, or talk during temperature taking.
• Do not take body temperature readings within 5-10 minutes after being
outdoors, exercising, or bathing.
• Do not use the device near a phone or any other device that may cause electro-
magnetic interference.
• Do not store the unit under direct sunlight, at a high temperature, in high
humidity or dust.
• Do not drop the thermometer, and do not use it if there are signs of damage. If
damaged, do not attempt to repair the device! Contact the Mueller Medical
Customer Service.
• Do not disassemble. See "Replacing the battery" section of this manual for
instructions on how to replace the battery.
• If the instrument is not going to be used for a prolonged period, the batteries
should be removed.
• Do not immerse the thermometer in water or other liquid. Clean and disinfect
the thermometer as described in the "Cleaning and storage" section of this user
manual.
• Clean the device probe before and after each use.
• Keep the thermometer out of the reach of children.
• Body temperature can vary from 97°F (36.1°C) and 99°F (37.2°C) and still be
considered normal. The medically accepted 'normal' body temperature is 98.6°F
(37°C). The level of activity, time of day, and other factors may affect body
temperature. A fever is defined as a body temperature that is elevated above the
normal for that person. It is important to determine what is 'normal' for an
individual before determining if a fever is present. Tracking an individual's
temperature on a consistent basis, at the same time every day will help
determine an individual's 'normal' temperature.

SPECIFICATIONS

Measurement range: 90.0°F (32°C)- 109.9°F (42.9°C)
Accuracy: 95.9°F (35.5°C)-107.6°F (42°C)±0.2°F(0.1°C)
Display resolution: 0.1°F (0.1°C)
Battery: 1.5V, AG3 or LR41
Operating condition: Temperature: 41°F (5°C)-104°F (40°C); Humidity: 15%-85%RH
Storage condition: Temperature: -4°F - (20°C)- 131°F (55°C); Humidity: 10%-85%RH
Probe tip LCD display ON/OFF button

HOW TO USE

1. Press the ON/OFF button to turn on the thermom-
eter. The unit will beep once and display
Note: To switch between Celsius (°C) and Fahrenheit
(°F), hold the ON/FF button for 3 seconds when
turning on the thermometer.
2. The thermometer will then show the last measured
temperature, indicated by an "M" in the bottom right
corner of the display.
3. Then, 98.6˚F (or 37.0˚C) will
appear.
4. When "Lo" and flashing ˚F (˚C)
appear, the thermometer is ready
for measuring temperature.

PARTS

Battery cover
ON
OFF
Storage Case
188.8
ON
OFF
33. 7
98.6 37.0
F
e
M
C
M
C
